FFU2064DW6 07 – SYSTEM

FFU2064DW6 07 – SYSTEM

Written by

in

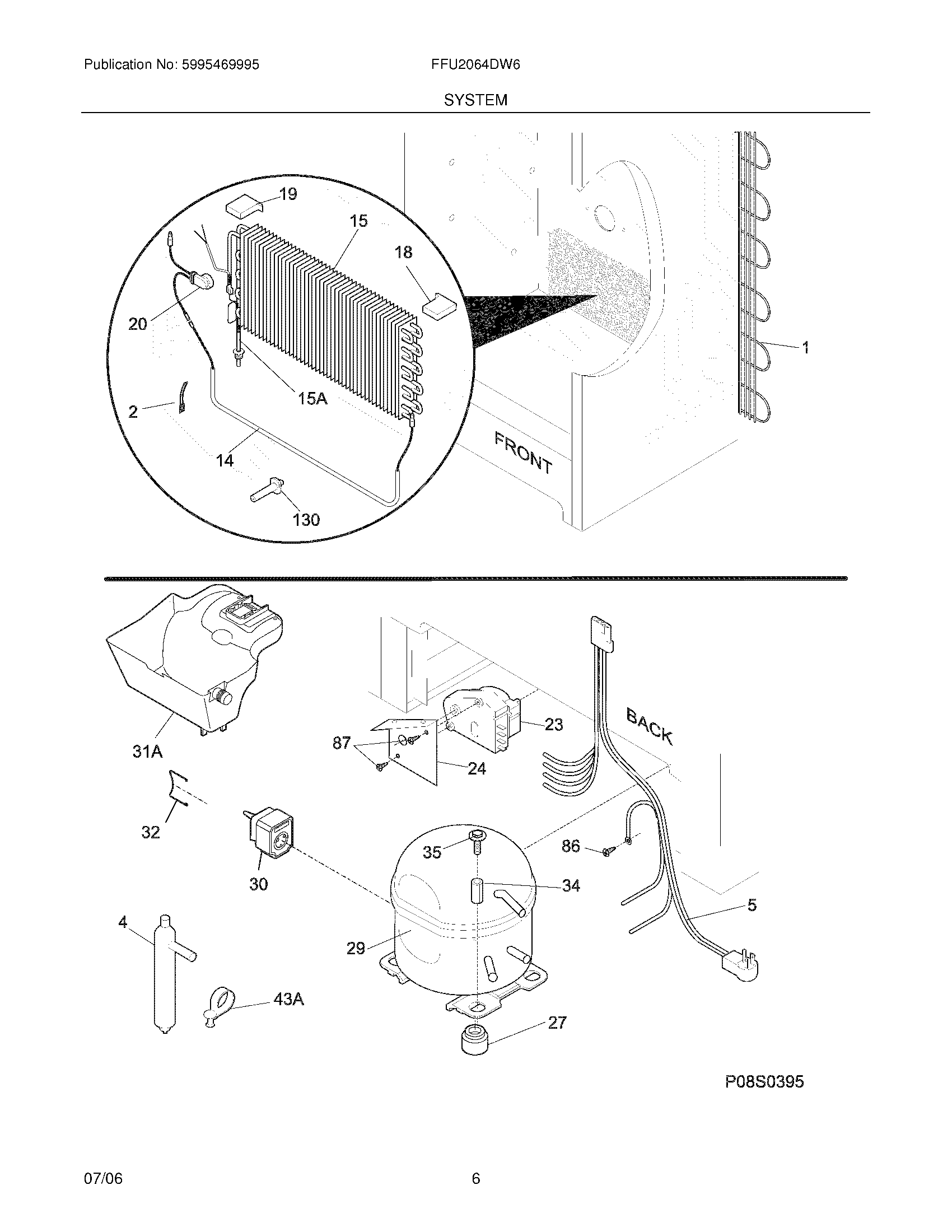

FFU2064DW6 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NI297014702 Frigidaire Refrigerator Suction Line Plug
NIWCI 297102800
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 297021200
14216730700 Frigidaire Refrigerator Defrost Heater
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
15297414901 Frigidaire Refrigerator Evaporator
18WCI 297078700
19WCI 297078800
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 297051000
32CLAMP, ELEC CONT MTG, COMPRESSOR
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
86216036601 Frigidaire Refrigerator Screw
87SCREW
130297244700 Frigidaire Refrigerator Support
