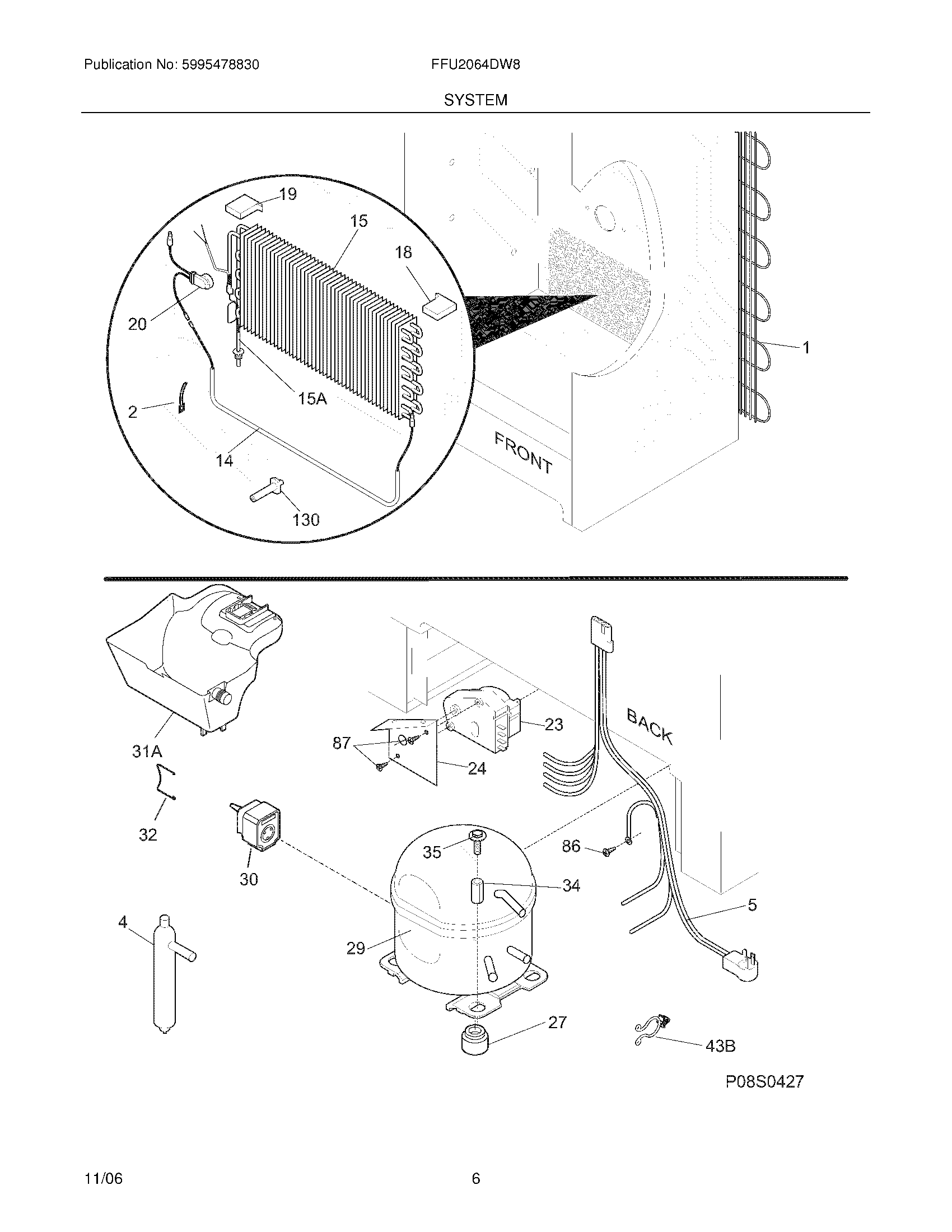

FFU2064DW8 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
NI	297014702 Frigidaire Refrigerator Suction Line Plug
NI	WCI 297102800
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297021200
14	216730700 Frigidaire Refrigerator Defrost Heater
15A	216783200 Frigidaire Refrigerator P1-Heat Exchanger
15	297414901 Frigidaire Refrigerator Evaporator
18	WCI 297078700
19	WCI 297078800
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 08016580
27	216498900 Frigidaire Refrigerator Grommet
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 297051000
32	CLAMP, ELEC CONT MTG, COMPRESSOR
34	SLEEVE-COMPRESSOR
35	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43B	297315800 Frigidaire Refrigerator Clip
86	216036601 Frigidaire Refrigerator Screw
87	SCREW
130	297244700 Frigidaire Refrigerator Support
