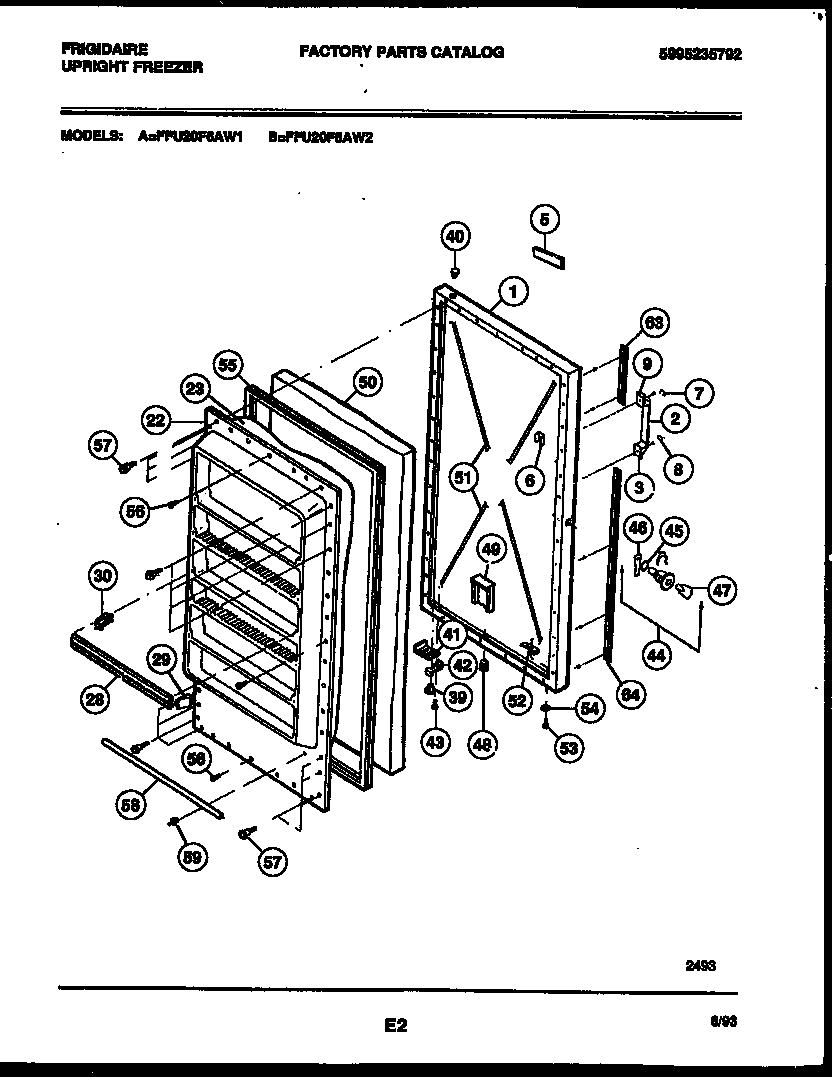

FFU20F6AW2 02 – DOOR PARTS

Products

Position	Product
1	PANEL-OUTER DOOR, WHITE
2	WCI 216087700
3	131420300 Frigidaire Screw
5	WCI 215008601
6	WCI 3202683
7	WCI 216208900
8	WCI 216209001
9	WCI 216087400
22	WCI 216048809
23	INSULATION (CUT TO SIZE)
28	SHELF FRONT NARROW (4)
29	WCI 5309948970
30	WCI 09948971
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5303297490
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
63	WCI 216211200
64	WCI 216087600
