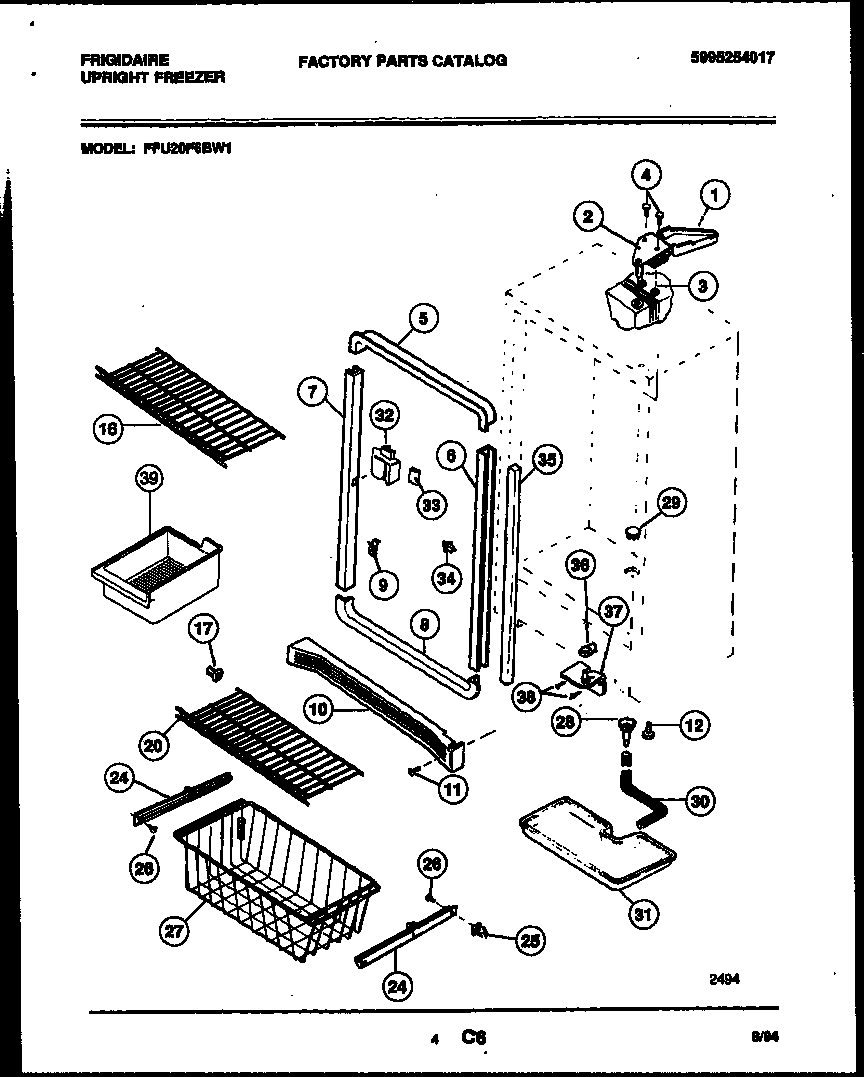

FFU20F6BW1 03 – CABINET PARTS

Products

Position	Product
1	COVER, HINGE
2	HINGE, TOP
3	WCI 5303294372
4	WCI 5303212937
5	WCI 216085900
6	WCI 216107501
7	WCI 216107601
8	WCI 216085800
9	RETAINER, WIRE, BREAKER
10	WCI 216294405
11	131420300 Frigidaire Screw
12	WCI 205363701
16	WCI 216266900
17	216502400 Frigidaire Refrigerator Grommet Unit
20	WCI 216267000
24	08009560 Frigidaire 0 Basket Glide
25	301036 Frigidaire Refrigerator Insert Nut
26	216858001 Frigidaire Refrigerator Screw
27A	WCI 09948791
27C	WCI 5303288196
27B	5305878546 Frigidaire Refrigerator Bumper-Basket
27	WCI 216154400
28	5304511843 Frigidaire Refrigerator Sleeve
29	216503100 Frigidaire Refrigerator Screen-Drain
30	5304512272 Frigidaire Hose Drain
31	WCI 5308016387
32	WCI 216013600
33	CLIP, U, LOCK
34	5309918806 Frigidaire Refrigerator Light Switch Door
35	INSULATION (CUT TO SIZE)
36	RAMP, DOOR
37	WCI 216247400
38	154518001 Frigidaire Refrigerator Screw
39	5303212918 Frigidaire Refrigerator Cont
