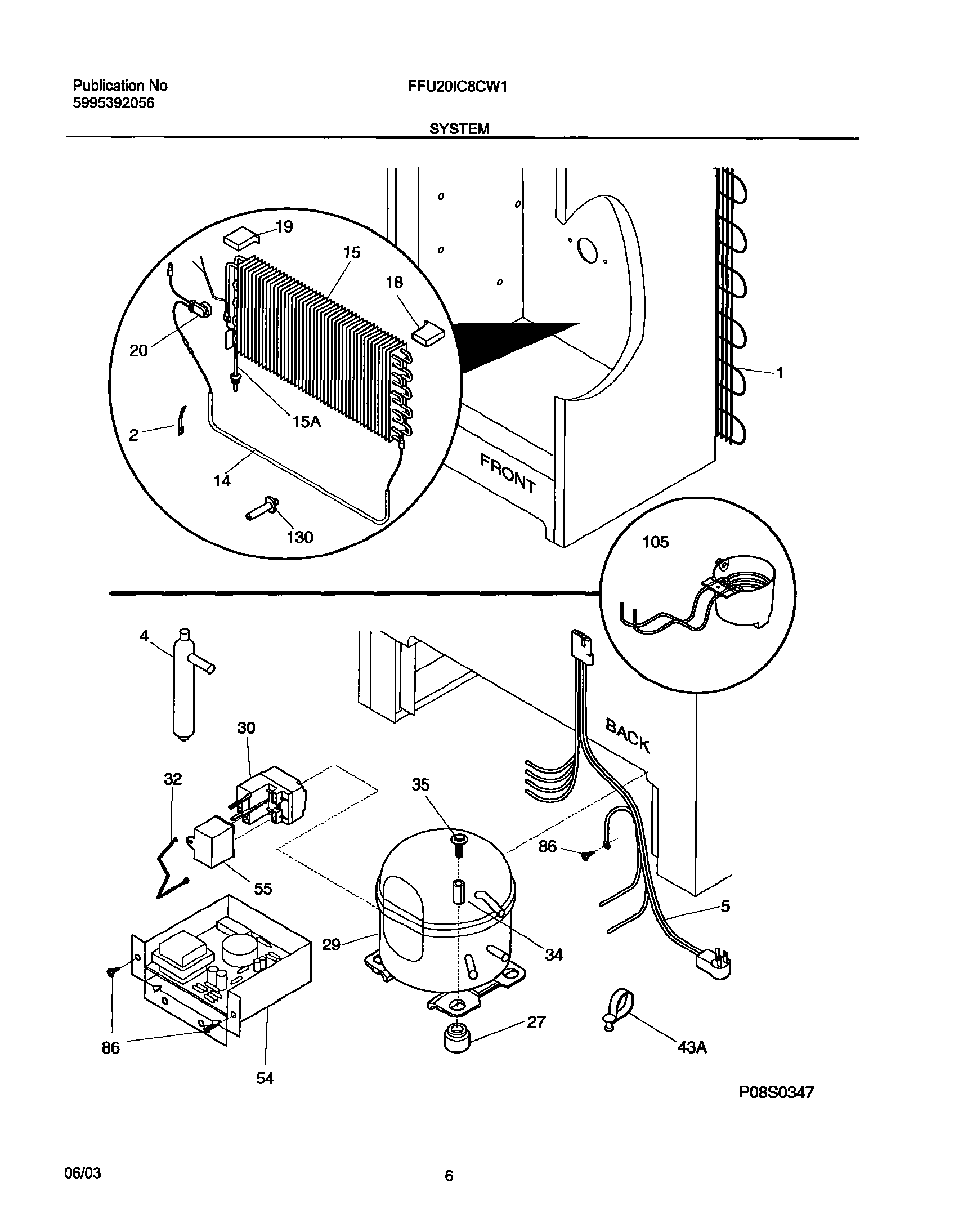

FFU20IC8CW1 07 – SYSTEM

FFU20IC8CW1 07 – SYSTEM

Written by

in

FFU20IC8CW1 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NISPACER, COMPRESSOR
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216888700
14216730700 Frigidaire Refrigerator Defrost Heater
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
15297414901 Frigidaire Refrigerator Evaporator
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
27216498900 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
305304491584 Frigidaire Overload Start Relay
32WCI 216649100
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
54WCI 216833800
55218909912 Frigidaire Capacitor Run
86216036601 Frigidaire Refrigerator Screw
105216999900 Frigidaire Refrigerator Cup-Drain
130297244700 Frigidaire Refrigerator Support
