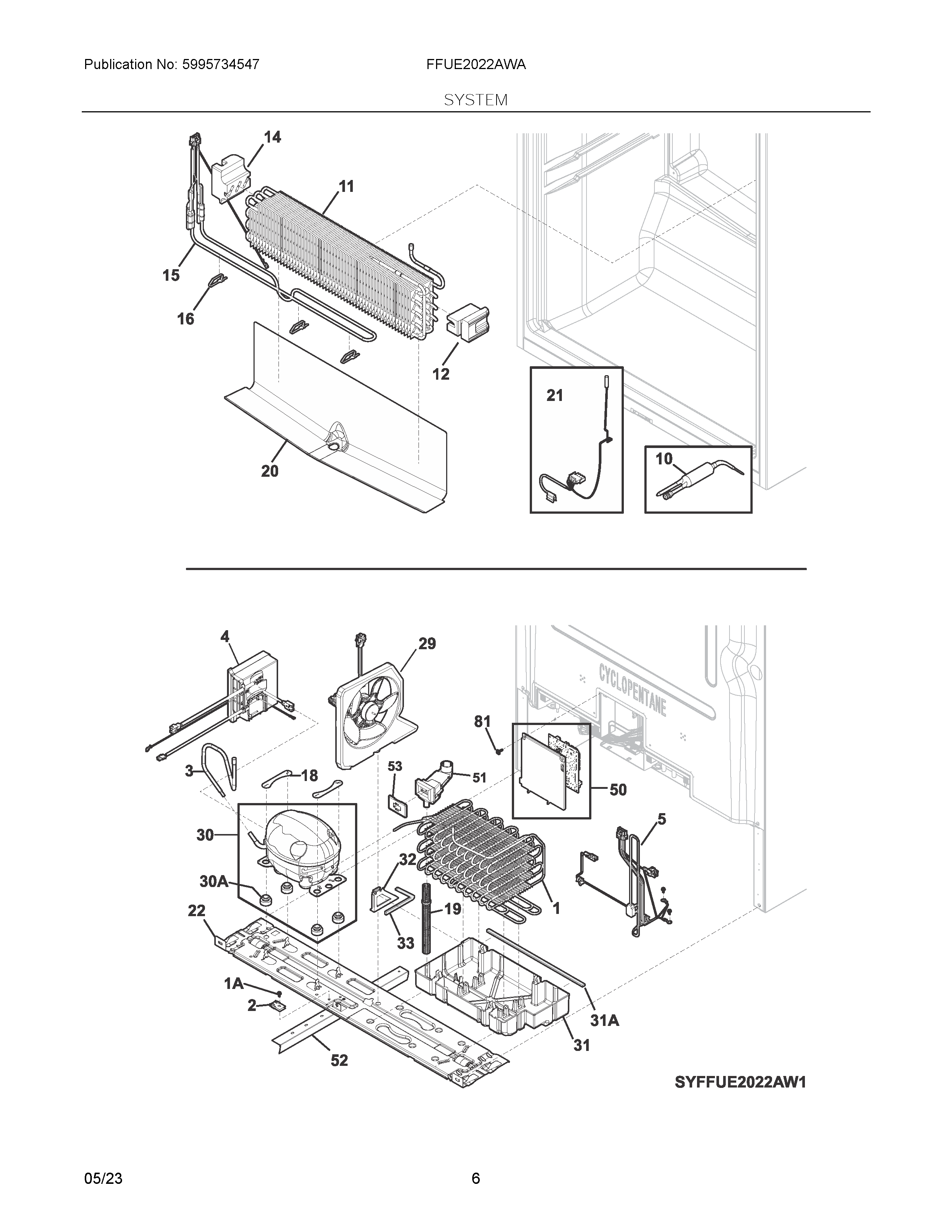

FFUE2022AWA 04 – SYSTEM

Products

Position	Product
NI	5304523801 Frigidaire Screw Assembly
NI	241500305 Frigidaire Refrigerator Screw
NI	WCI 30534600
NI	5304464772 Frigidaire Refrigerator Wire Tie
1	5304533258 Frigidaire Condenser
1A	240433204 Frigidaire Refrigerator Screw
2	5304456288 Frigidaire Refrigerator Clamp
3	5304519693 Frigidaire Tube
4	5304532190 Frigidaire Refrigerator Inverter
5	5304532290 Frigidaire Harness
10	A19676501 Frigidaire Refrigerator Drier Filter
11	5304523830 Frigidaire Refrigerator Evaporator
12	5304523831 Frigidaire Support Refrigerator
14	SUPPORT, EVAPORATOR, LH
15	5304523833 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304523720 Frigidaire Refrigerator Trough
21	5304523788 Frigidaire Defrost Thermostat
22	5304523693 Frigidaire Refrigerator Base Assembly
28	5304523741 Frigidaire Evaporator Fan Motor Assembly
29	5304532166 Frigidaire Refrigerator Fan Assembly
30A	5304523829 Frigidaire Refrigerator Grommet
30	5304532529 Frigidaire Refrigerator Compressor Kit with Installation
31	5304523709 Frigidaire Refrigerator Pan
31A	5304523724 Frigidaire Seal
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
50	5304533259 Frigidaire Refrigerator Board Assembly
51	5304530111 Frigidaire Refrigerator Drain Jumper
52	BAFFLE, DIVIDER
53	COVER, DRAIN JUMPER
81	5304519765 Frigidaire Refrigerator Screw
