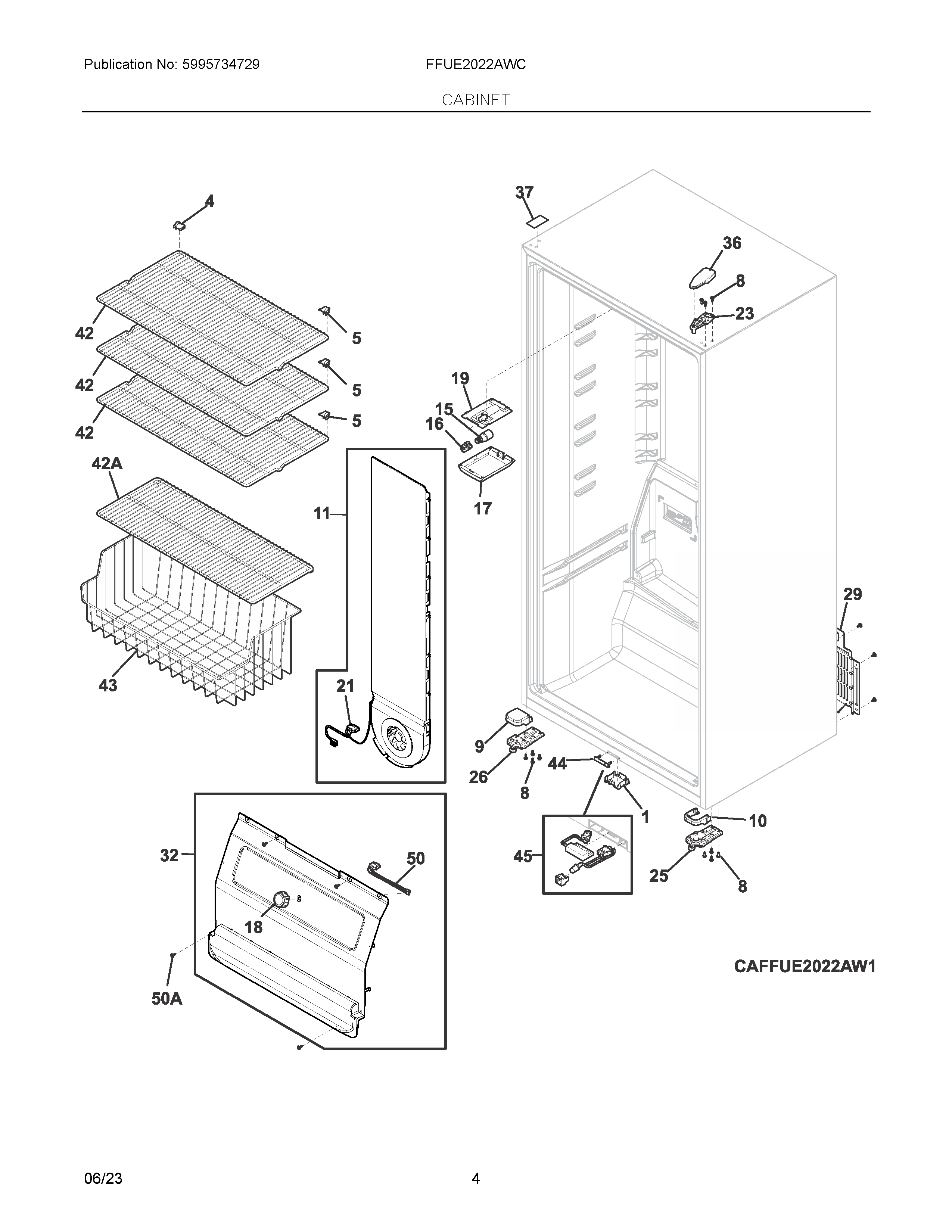

FFUE2022AWC 03 – CABINET

FFUE2022AWC 03 – CABINET

Written by

in

FFUE2022AWC 03 – CABINET

Products

Position	Product
NIA	240433204 Frigidaire Refrigerator Screw
NIA	5304530289 Frigidaire Refrigerator Cover
NIA	5304531524 Frigidaire Refrigerator Harness
NIA	5303918891 Frigidaire Refrigerator Air Tower Assembly
NIA	5304522179 Frigidaire Tape
NIA	241500305 Frigidaire Refrigerator Screw
1	5304523792 Frigidaire Refrigerator Cover
4	5304522258 Frigidaire Shelf Clip
5	5304522259 Frigidaire Shelf Clip
7	5304525858 Frigidaire Refrigerator Cover
8	5304522279 Frigidaire Screw
9	5304519777 Frigidaire Hinge Cover
10	5304522244 Frigidaire Cover
11	AIR TOWER, ASSEMBLY, COMPLETE, W/MOTOR-HEATER
12	241953905 Frigidaire Screw
15	5304522314 Frigidaire Light Bulb
16	5304522315 Frigidaire Refrigerator Socket
17	5304523778 Frigidaire Cover
18	5304523758 Frigidaire Knob
19	5304523777 Frigidaire Refrigerator Mount
21	5304523788 Frigidaire Defrost Thermostat
23	5304523689 Frigidaire Refrigerator Hinge
24	5304523722 Frigidaire Refrigerator Fan Mount
25	5304529045 Frigidaire Refrigerator Hinge-Bottom
26	5304523747 Frigidaire Refrigerator Hinge-Bottom
28	5304523741 Frigidaire Evaporator Fan Motor Assembly
29	COVER, REAR ACCESS
32	5304532168 Frigidaire Refrigerator Assembly Cover
36	5304530010 Frigidaire Cover Assembly
37	5304523313 Frigidaire Label-Blank
42	5304525223 Frigidaire Freezer Wire Shelf Support
42A	5304523712 Frigidaire Refrigerator Shelf
43	5304523751 Frigidaire Refrigerator Basket
44	5304523785 Frigidaire Refrigerator Cover
45	5304523755 Frigidaire Refrigerator Reed Switch Harness
50A	5304523738 Frigidaire Refrigerator Screw
50	5304523789 Frigidaire Refrigerator Harness
