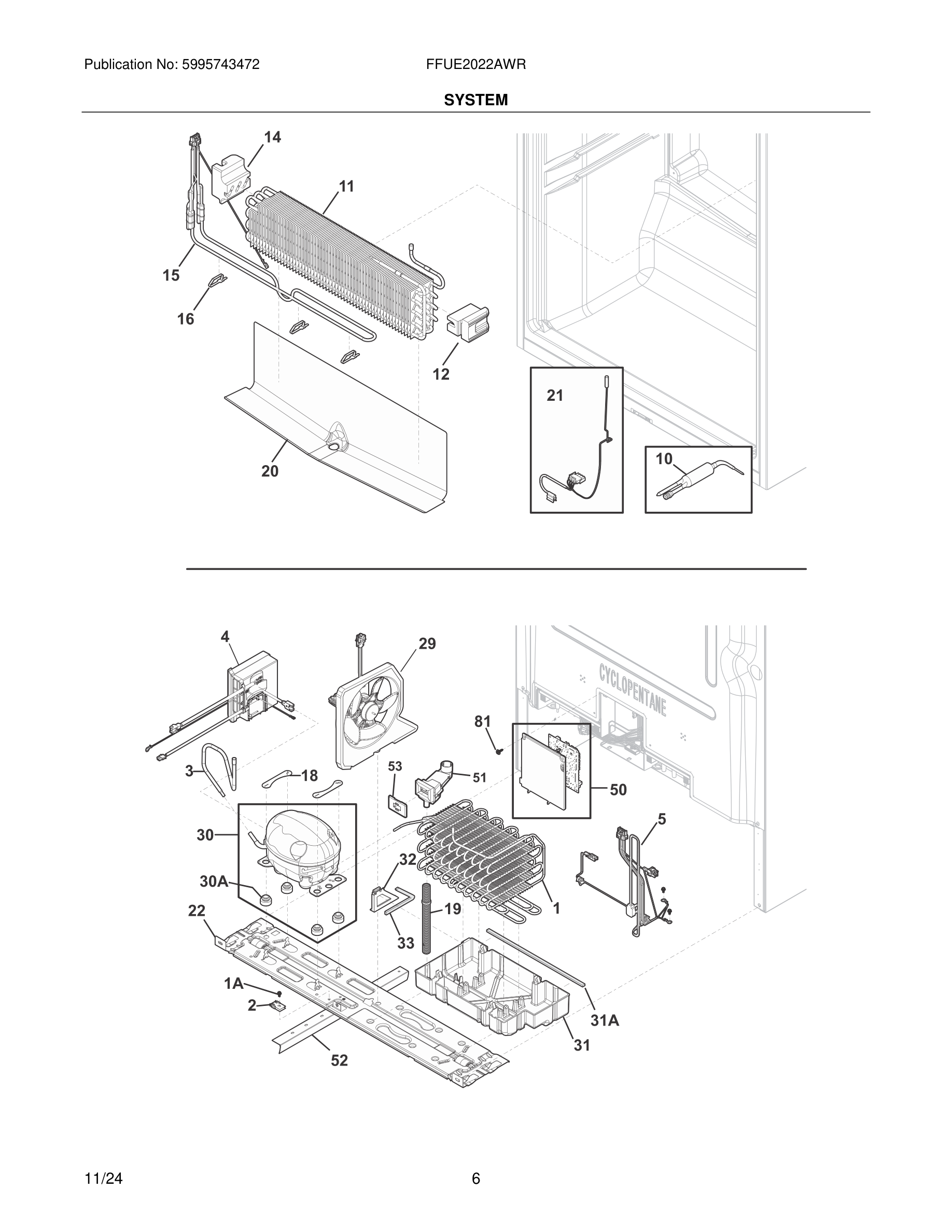

FFUE2022AWR 07 – SYSTEM

Products

Position	Product
*	5304523801 Frigidaire Screw Assembly
*	241500305 Frigidaire Refrigerator Screw
*	WCI 30534600
*	5304464772 Frigidaire Refrigerator Wire Tie
1A	240433204 Frigidaire Refrigerator Screw
1#	5304530007 Frigidaire Refrigerator Condenser
2	5304456288 Frigidaire Refrigerator Clamp
3#	5304519693 Frigidaire Tube
4#	5304531506 Frigidaire Refrigerator Inverter
5#	5304532290 Frigidaire Harness
10#	A19676501 Frigidaire Refrigerator Drier Filter
11	5304523830 Frigidaire Refrigerator Evaporator
12	5304523831 Frigidaire Support Refrigerator
14	SUPPORT, EVAPORATOR, LH
15	5304523833 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304523720 Frigidaire Refrigerator Trough
21#	5304523788 Frigidaire Defrost Thermostat
22	5304523693 Frigidaire Refrigerator Base Assembly
29#	5304535399 Frigidaire Condenser Fan Shroud Assembly
30#	5304530136 Frigidaire Refrigerator Compressor
30A	GROMMET, CMPRSR MTG, 23
31	5304519674 Frigidaire Refrigerator Pan
31A	5304519744 Frigidaire Refrigerator Tape
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
50#	5304535530 Frigidaire House & M.Board S/A
51	5304530111 Frigidaire Refrigerator Drain Jumper
52	BAFFLE, DIVIDER
53	COVER, DRAIN JUMPER
81	5304519765 Frigidaire Refrigerator Screw
