FFUE2024AND 07 – SYSTEM

FFUE2024AND 07 – SYSTEM

Written by

in

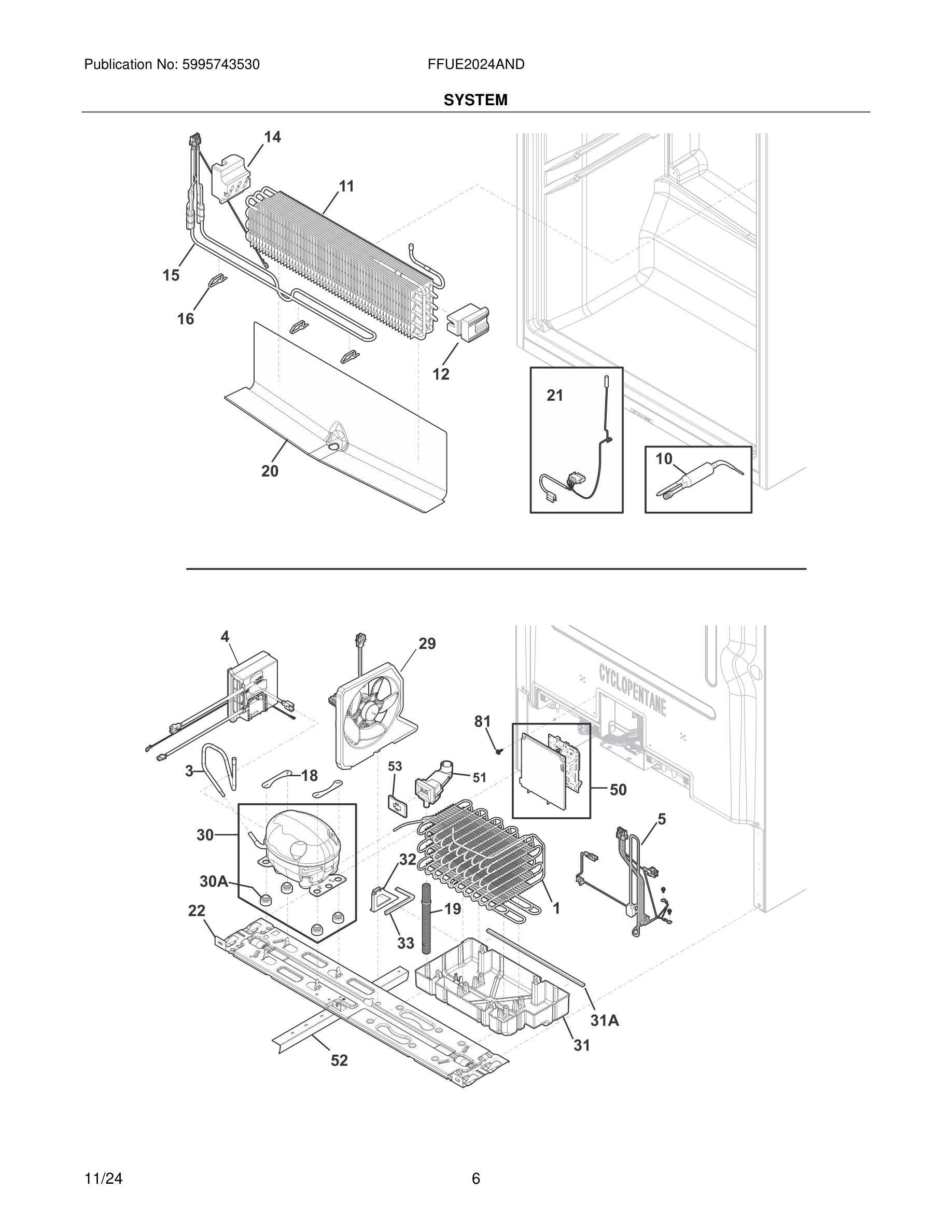

FFUE2024AND 07 – SYSTEM

Products

PositionProduct
*240433204 Frigidaire Refrigerator Screw
*WCI 30534600
*5304523801 Frigidaire Screw Assembly
*5304464772 Frigidaire Refrigerator Wire Tie
*241853202 Frigidaire Refrigerator Screw
*241500305 Frigidaire Refrigerator Screw
1#5304530007 Frigidaire Refrigerator Condenser
3#5304519693 Frigidaire Tube
4#5304531506 Frigidaire Refrigerator Inverter
5#5304532290 Frigidaire Harness
10#A19676501 Frigidaire Refrigerator Drier Filter
115304523830 Frigidaire Refrigerator Evaporator
125304523831 Frigidaire Support Refrigerator
14SUPPORT, EVAPORATOR, LH
155304524953 Frigidaire Refrigerator Heater
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
185304524607 Frigidaire Clamp
195304525042 Frigidaire Refrigerator Drain Tube
205304523720 Frigidaire Refrigerator Trough
21#5304523788 Frigidaire Defrost Thermostat
225304523693 Frigidaire Refrigerator Base Assembly
29#5304535399 Frigidaire Condenser Fan Shroud Assembly
30AGROMMET, CMPRSR MTG, 23
30#5304530136 Frigidaire Refrigerator Compressor
31A5304523724 Frigidaire Seal
315304519674 Frigidaire Refrigerator Pan
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
50#5304529280 Frigidaire Refrigerator Mainboard
50A5304523738 Frigidaire Refrigerator Screw
515304530111 Frigidaire Refrigerator Drain Jumper
52BAFFLE, DIVIDER
53COVER, DRAIN JUMPER
815304519765 Frigidaire Refrigerator Screw
