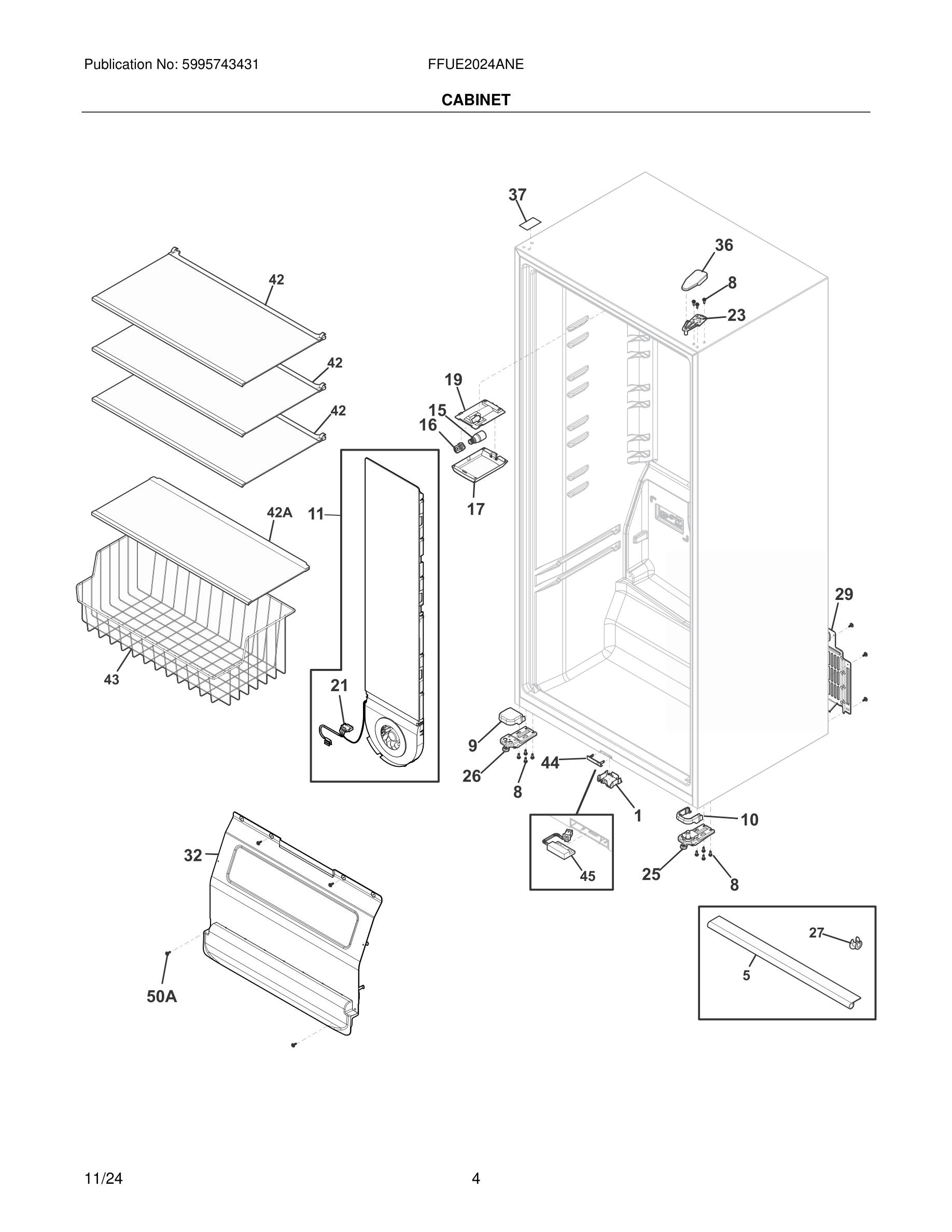

FFUE2024ANE 05 – CABINET

FFUE2024ANE 05 – CABINET

Written by

in

FFUE2024ANE 05 – CABINET

Products

PositionProduct
*#5304524123 Frigidaire Harness Assembly
*WCI 5304534034
15304523792 Frigidaire Refrigerator Cover
1*240433204 Frigidaire Refrigerator Screw
5CHANNEL, WIRING HARNESS
85304522279 Frigidaire Screw
95304522221 Frigidaire Refrigerator Cover
105304522246 Frigidaire Refrigerator Cover
11#5303918891 Frigidaire Refrigerator Air Tower Assembly
11*#5304530202 Frigidaire Foil Heater – Air T
12241953905 Frigidaire Screw
155304522314 Frigidaire Light Bulb
16#5304522315 Frigidaire Refrigerator Socket
175304523778 Frigidaire Cover
195304523777 Frigidaire Refrigerator Mount
21#5304523788 Frigidaire Defrost Thermostat
23Hinge, upper
245304523722 Frigidaire Refrigerator Fan Mount
255304529045 Frigidaire Refrigerator Hinge-Bottom
265304523747 Frigidaire Refrigerator Hinge-Bottom
27SPACER, ROLLER, LOWER HINGE
29*241500305 Frigidaire Refrigerator Screw
29#COVER-DUST U20/TT, 29 #
32*5304522179 Frigidaire Tape
325304534437 Frigidaire Assembly Cover
365304530085 Frigidaire Refrigerator Cover
375304524036 Frigidaire Label
425304524074 Frigidaire Refrigerator Shelf Assembly
42A5304524026 Frigidaire Refrigerator Shelf Assembly
43BASKET-LOWER, WIRE U20 (GRAY)
445304524130 Frigidaire Cover Assembly
45#5304527992 Frigidaire Freezer Wire Harness with Reed Switch
50A5304523738 Frigidaire Refrigerator Screw
