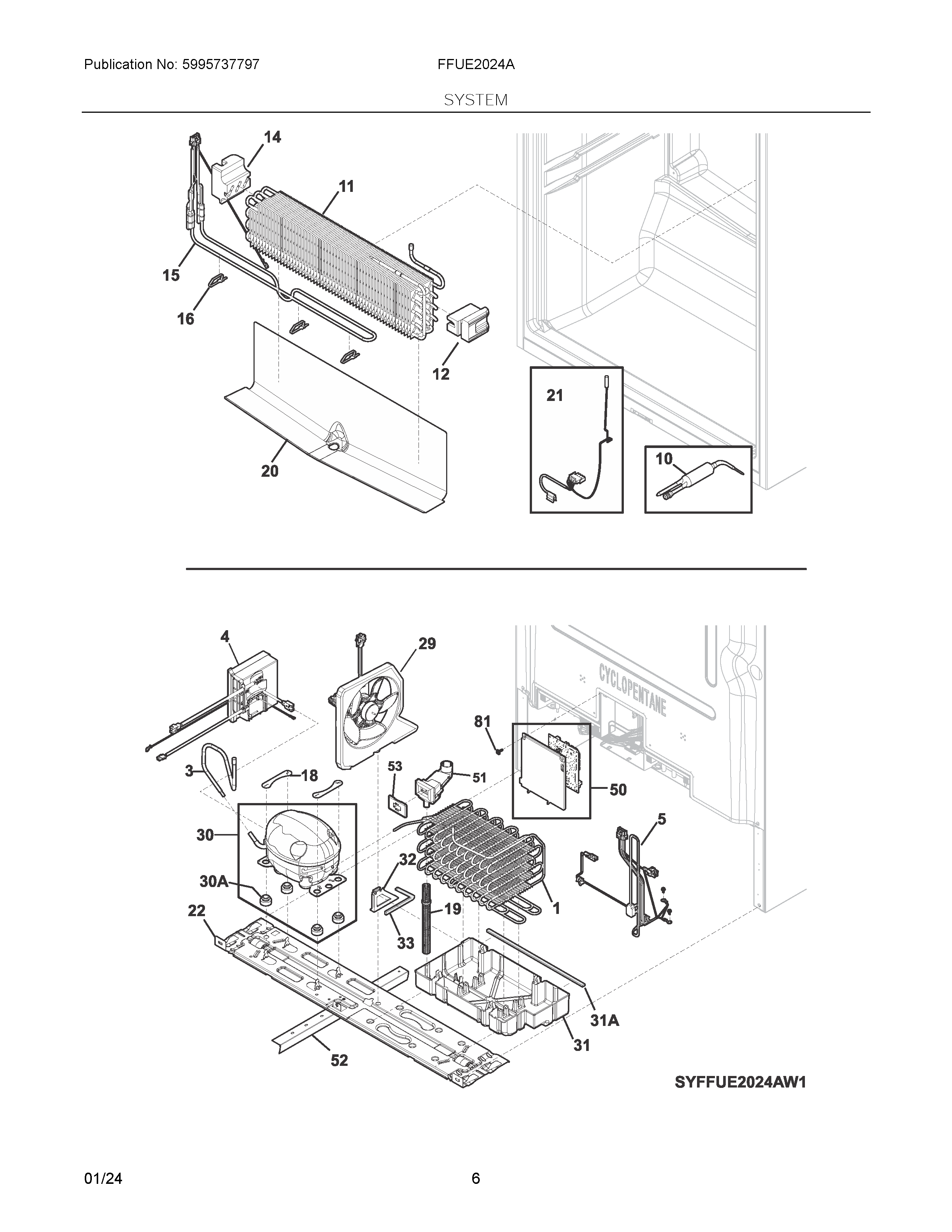

FFUE2024AW9 04 – SYSTEM

Products

PositionProduct
NIN240433204 Frigidaire Refrigerator Screw
NIN241500305 Frigidaire Refrigerator Screw
NINWCI 30534600
NIN241853202 Frigidaire Refrigerator Screw
NIN5304464772 Frigidaire Refrigerator Wire Tie
NIN5304523801 Frigidaire Screw Assembly
115304530007 Frigidaire Refrigerator Condenser
30A3GROMMET, CMPRSR MTG, 23
31A35304523724 Frigidaire Seal
335304519693 Frigidaire Tube
445304531506 Frigidaire Refrigerator Inverter
50A55304523738 Frigidaire Refrigerator Screw
555304524153 Frigidaire Refrigerator Harness
101A19676501 Frigidaire Refrigerator Drier Filter
1115304523830 Frigidaire Refrigerator Evaporator
1215304523831 Frigidaire Support Refrigerator
141SUPPORT, EVAPORATOR, LH
1515304523833 Frigidaire Refrigerator Heater
1615308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
1815304524607 Frigidaire Clamp
1915304525042 Frigidaire Refrigerator Drain Tube
2025304523720 Frigidaire Refrigerator Trough
2125304523788 Frigidaire Defrost Thermostat
2225304523693 Frigidaire Refrigerator Base Assembly
2825304523741 Frigidaire Evaporator Fan Motor Assembly
2925304535399 Frigidaire Condenser Fan Shroud Assembly
3035304530136 Frigidaire Refrigerator Compressor
3135304519674 Frigidaire Refrigerator Pan
3235304519745 Frigidaire Refrigerator Baffle
3335304519751 Frigidaire Refrigerator Seal
5055304529280 Frigidaire Refrigerator Mainboard
5155304530111 Frigidaire Refrigerator Drain Jumper
535COVER, DRAIN JUMPER
8185304519765 Frigidaire Refrigerator Screw
