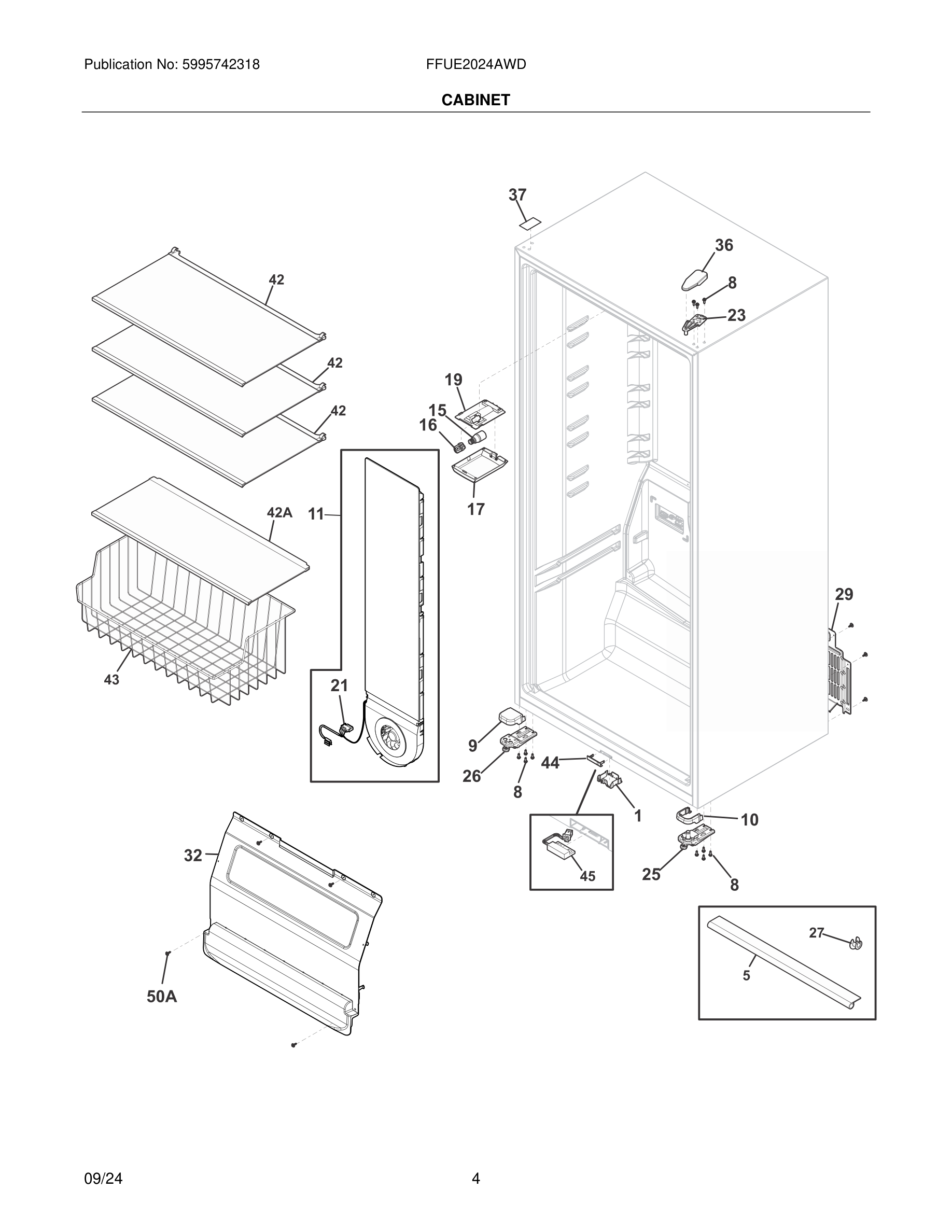

FFUE2024AWD 05 – CABINET

Products

PositionProduct
*#5304524123 Frigidaire Harness Assembly
*WCI 5304534034
1*240433204 Frigidaire Refrigerator Screw
15304523792 Frigidaire Refrigerator Cover
5CHANNEL, WIRING HARNESS
85304522279 Frigidaire Screw
95304519777 Frigidaire Hinge Cover
105304522244 Frigidaire Cover
11#5304530202 Frigidaire Foil Heater – Air T
12241953905 Frigidaire Screw
155304522314 Frigidaire Light Bulb
16#5304522315 Frigidaire Refrigerator Socket
17*5303918891 Frigidaire Refrigerator Air Tower Assembly
175304523778 Frigidaire Cover
195304523777 Frigidaire Refrigerator Mount
21#5304523788 Frigidaire Defrost Thermostat
23Hinge, upper
245304523722 Frigidaire Refrigerator Fan Mount
255304529045 Frigidaire Refrigerator Hinge-Bottom
265304523747 Frigidaire Refrigerator Hinge-Bottom
27SPACER, ROLLER, LOWER HINGE
29#COVER-DUST U20/TT, 29 #
29*241500305 Frigidaire Refrigerator Screw
32*TAPE-ALUMINUM, 32
325304534437 Frigidaire Assembly Cover
365304530010 Frigidaire Cover Assembly
375304523313 Frigidaire Label-Blank
42AShelf Assembly, 27.8", glass
425304536377 Frigidaire Shelf Assembly
43BASKET-LOWER, WIRE U20 (GRAY)
445304524130 Frigidaire Cover Assembly
45#5304527992 Frigidaire Freezer Wire Harness with Reed Switch
50A5304523738 Frigidaire Refrigerator Screw
