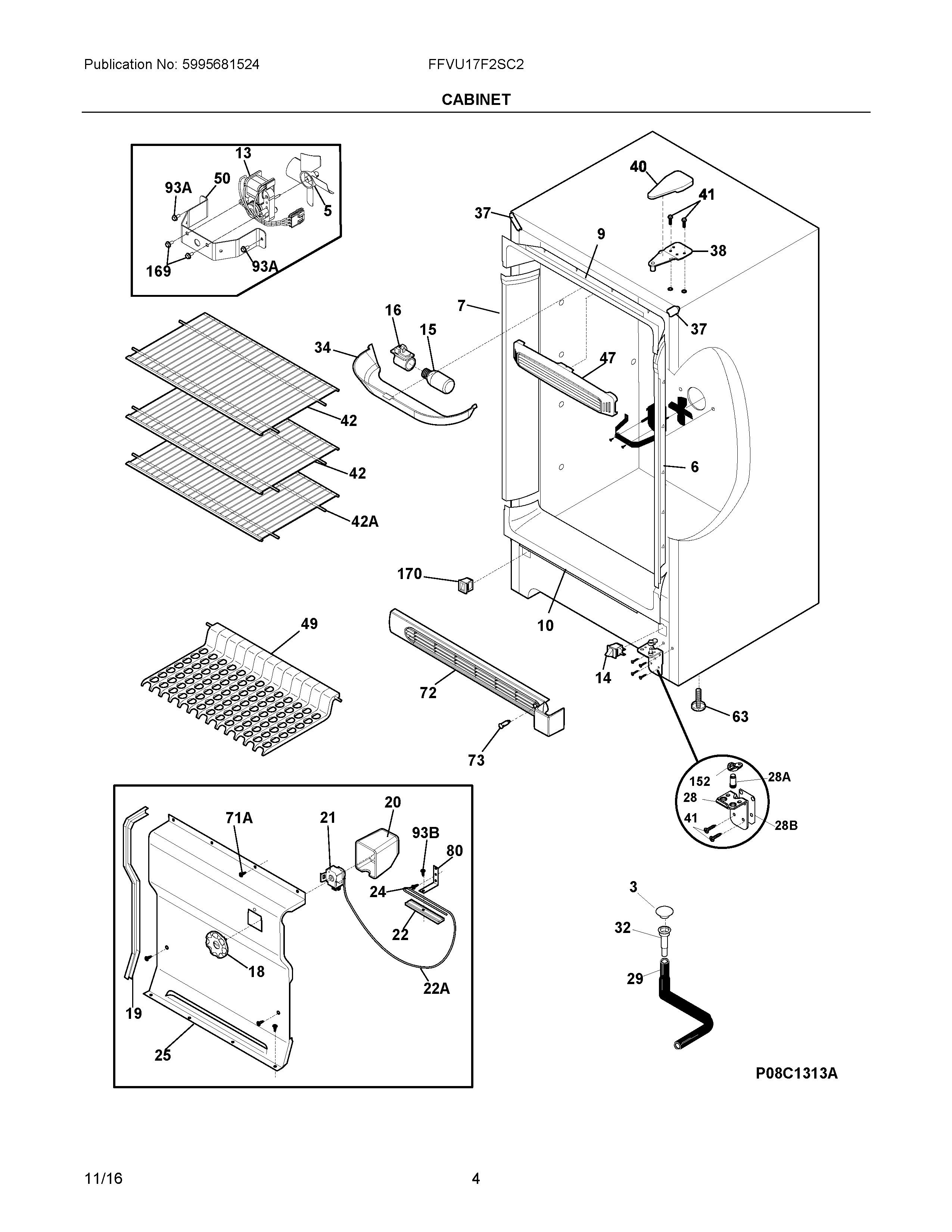

FFVU17F2SC2 03 – CABINET

FFVU17F2SC2 03 – CABINET

Written by

in

FFVU17F2SC2 03 – CABINET

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NI216337701 Frigidaire Refrigerator Screw
NI297001704 Frigidaire Refrigerator Insulation
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NIWCI 5303313703
NI5304498525 Frigidaire Service Data Sheet
NI216502400 Frigidaire Refrigerator Grommet Unit
NIWCI 5304505755
NIWCI 5304505792
3216503100 Frigidaire Refrigerator Screen-Drain
55304513294 Frigidaire Refrigerator Freezer Fan Blade
6297435601 Frigidaire Breaker
7297403902 Frigidaire Refrigerator Breaker
9297403901 Frigidaire Refrigerator Breaker
10WCI 297334500
10AWCI 297177400
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18WCI 216707202
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
21WCI 5304513035
22ATUBE
22CLAMP, CAP TUBE, COLD CONTROL
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26297415900 Frigidaire Door Closer Ramp
28WCI 297415803
28B297416301 Frigidaire Refrigerator Hinge
28A297438300 Frigidaire Refrigerator Pin
295304512272 Frigidaire Hose Drain
31297165804 Frigidaire Refrigerator Pan-Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
35216273000 Frigidaire Refrigerator Strap
37297273905 Frigidaire Cabinet Corner Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40COVER-UPPER HINGE, BLACK
41240578902 Frigidaire Screw Mounting Hinge
42WCI 297441905
42A297441901 Frigidaire Refrigerator Shelf
47297192903 Frigidaire Refrigerator Baffle
49216937701 Frigidaire Refrigerator Trivet
50216394050 Frigidaire Refrigerator Bracket
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72GRILLE/KICKPLATE, W/SIG LIGHT, BLACK
735304495394 Frigidaire Refrigerator Light Signal
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93A216858001 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169216912401 Frigidaire Refrigerator Screw
