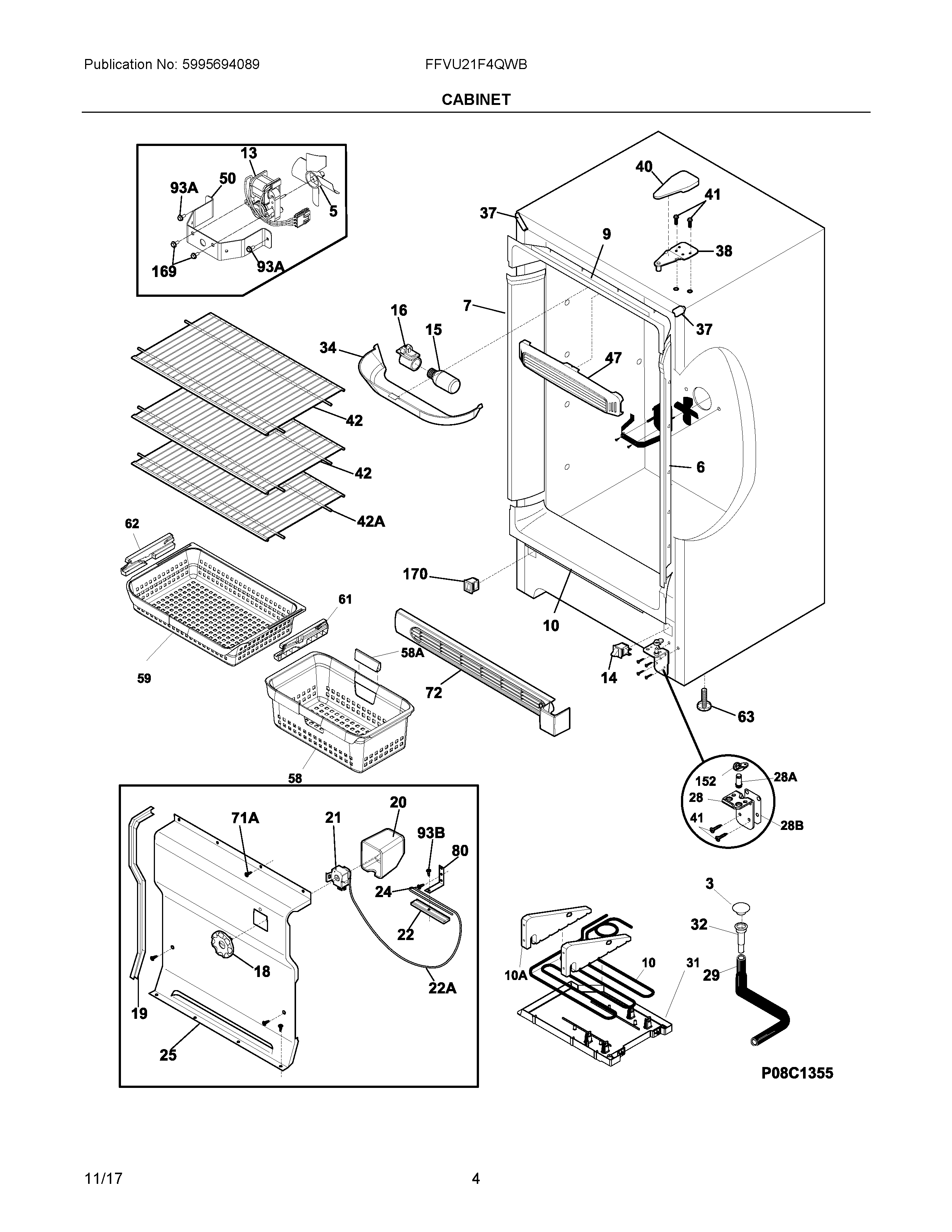

FFVU21F4QWB 03 – CABINET

FFVU21F4QWB 03 – CABINET

Written by

in

FFVU21F4QWB 03 – CABINET

Products

PositionProduct
NI216337701 Frigidaire Refrigerator Screw
NIWCI 5303313703
NIWCI 5304509846
NIWCI 5304511226
NIWCI 5304508299
NI5304498525 Frigidaire Service Data Sheet
NI216858001 Frigidaire Refrigerator Screw
NI240494001 Frigidaire Refrigerator Plug Button
NI216502400 Frigidaire Refrigerator Grommet Unit
NI297001704 Frigidaire Refrigerator Insulation
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NI5304496283 Frigidaire Refrigerator Grommet
3216503100 Frigidaire Refrigerator Screen-Drain
55304513294 Frigidaire Refrigerator Freezer Fan Blade
6297435605 Frigidaire Refrigerator Breaker
7297403902 Frigidaire Refrigerator Breaker
9297403901 Frigidaire Refrigerator Breaker
10WCI 297334500
10AWCI 297177400
12WCI 242062801
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18KNOB, TEMP CONTROL
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304511828 Frigidaire Refrigerator Control
22ATUBE
22CLAMP, CAP TUBE, COLD CONTROL
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26297415900 Frigidaire Door Closer Ramp
28B297416301 Frigidaire Refrigerator Hinge
28WCI 297415803
28A297438300 Frigidaire Refrigerator Pin
295304510353 Frigidaire Refrigerator Hose
31A297165805 Frigidaire Refrigerator Pan-Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40297164400 Frigidaire Refrigerator Hinge Cover
41240578902 Frigidaire Screw Mounting Hinge
42WCI 297441905
42ASHELF
47297192903 Frigidaire Refrigerator Baffle
50216394050 Frigidaire Refrigerator Bracket
58808618202 Frigidaire Refrigerator Lower Basket
59ASTOP-BASKET, (2)
59BASKET
61808902901 Frigidaire Hanging Basket Hanger
62808902902 Frigidaire Hanging Basket Support, Left Hand
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297387920 Frigidaire Refrigerator Kickplate/Grille
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
156808617801 Frigidaire Refrigerator Divider-Lower
169216912401 Frigidaire Refrigerator Screw
170297280400 Frigidaire Refrigerator Valve
