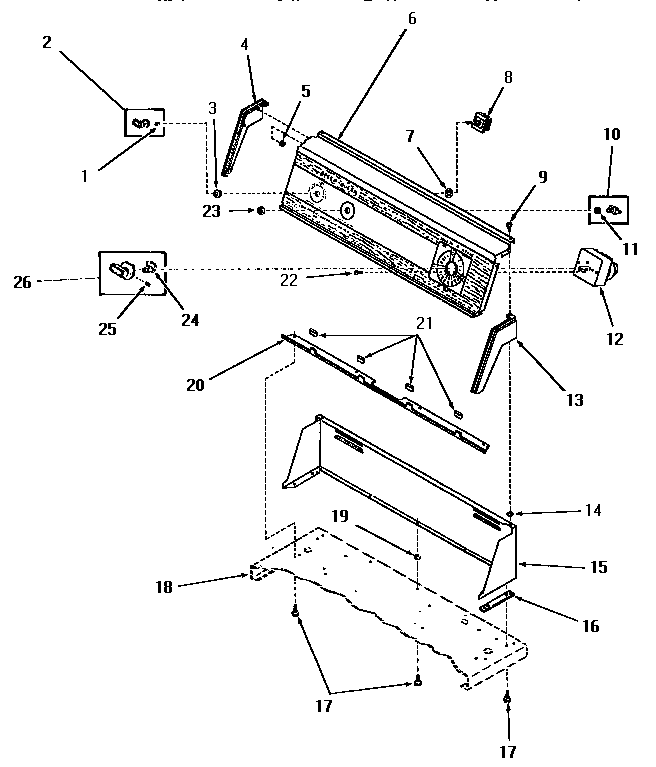

FG0640 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

FG0640 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Written by

in

FG0640 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Products

PositionProduct
1MAY 22244
2MAY 22245
3MAY 24205
4MAY 25124
5MAY 25126
6MAY 55787
7MAY 91176
8MAY 52623
9MAY 25232
10MAY 53768
12MAY 52610
13MAY 25123
14MAY 24522
15MAY 53446W
15MAY 53446H
15MAY 53446A
16MAY 23028
17WP90767 Whirlpool Screw
18SEE NOTE GROUND WIRE, GREEN
19MAY 23425
20MAY 52912
21MAY 24859
22MAY 70212
23MAY 52947
24MAY 24283
25MAY 20310
26MAY 24290
