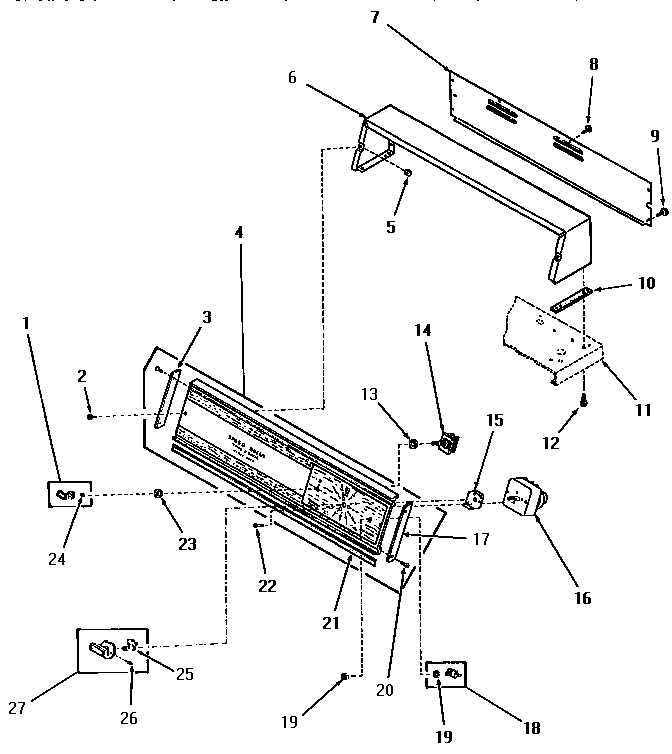

FG3840 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

FG3840 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Written by

in

FG3840 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Products

PositionProduct
1MAY 24291
2MAY 25232
3MAY 25072
4MAY Y54971
5MAY 54038
6MAY 52530W
6MAY 52530H
6MAY 52530A
7MAY 52539GR
8WP3177991 Whirlpool Screw
9MAY 25724
10MAY 23028
11SEE NOTE GROUND WIRE, GREEN
12WP90767 Whirlpool Screw
13MAY 91176
14MAY 53380
15MAY 25966
16MAY 52594
17MAY 25073
18MAY 53768
19MAY 52947
20MAY 52864
21MAY Y0053880
22MAY Y0054441
23MAY 24205
24MAY 23392
25MAY 24283
26MAY 20310
27MAY 24290
