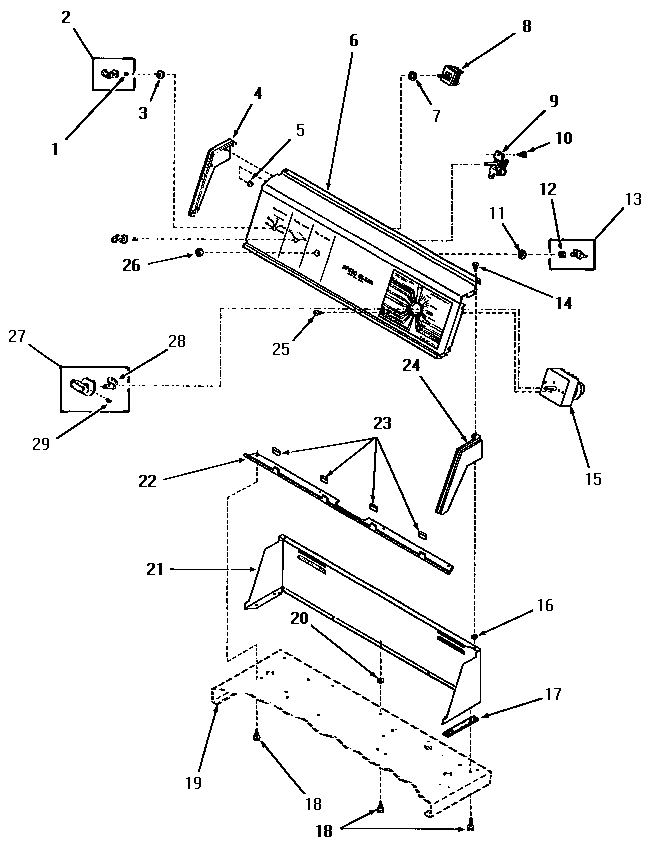

FG4180 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

FG4180 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Written by

in

FG4180 03 – CONTROL PANEL, CONTROL HOOD AND CONTROLS

Products

PositionProduct
1MAY 22244
2MAY 22245
3MAY 24205
4MAY 25124
5MAY 25126
6MAY Y0053958
7MAY 91176
8MAY 53380
10WP90767 Whirlpool Screw
11MAY 25820
13MAY 55882
14MAY 25232
15MAY 52167
16MAY 24522
17MAY 23028
18MAY 55985
19SEE NOTE GROUND WIRE, GREEN
20MAY 23425
21MAY 55906W
21MAY 55906H
21MAY 55906A
22MAY 52912
23MAY 24859
24MAY 25123
25MAY 70212
26MAY 52947
27MAY 55900
28MAY 24283
29MAY 20310
