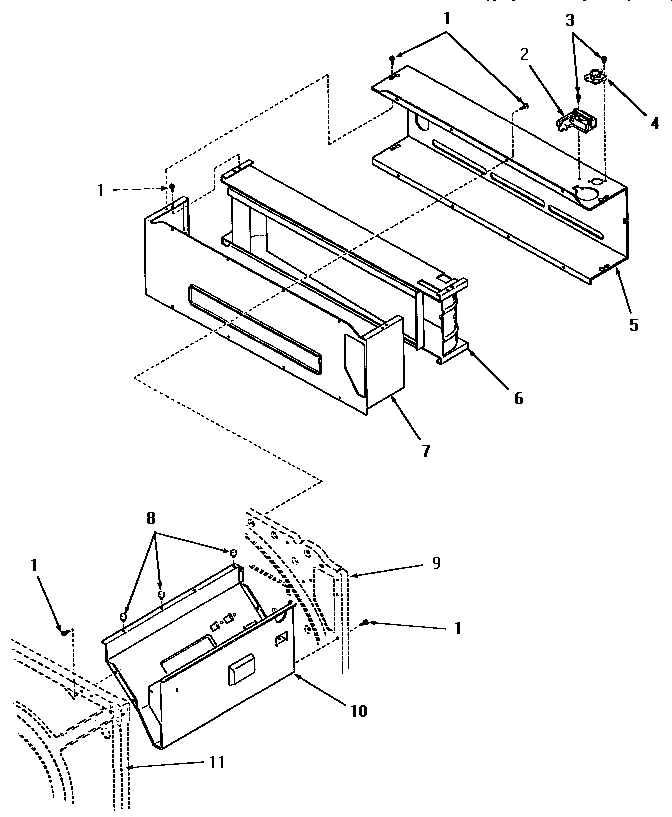

FG4240 09 – HEATER BOX
Products
| Position | Product |
|---|---|
| 1 | MAY 25723 |
| 2 | MAY 55428 |
| 3 | WP3177991 Whirlpool Screw |
| 4 | MAY Y55742 |
| 5 | MAY 0055427 |
| 6 | MAY 55426 |
| 7 | MAY Y0051866 |
| 8 | MAY 52552 |
| 10 | MAY Y52584 |
| 11 | SEE NOTE GROUND WIRE, GREEN |
FG4240 09 – HEATER BOX
| Position | Product |
|---|---|
| 1 | MAY 25723 |
| 2 | MAY 55428 |
| 3 | WP3177991 Whirlpool Screw |
| 4 | MAY Y55742 |
| 5 | MAY 0055427 |
| 6 | MAY 55426 |
| 7 | MAY Y0051866 |
| 8 | MAY 52552 |
| 10 | MAY Y52584 |
| 11 | SEE NOTE GROUND WIRE, GREEN |
