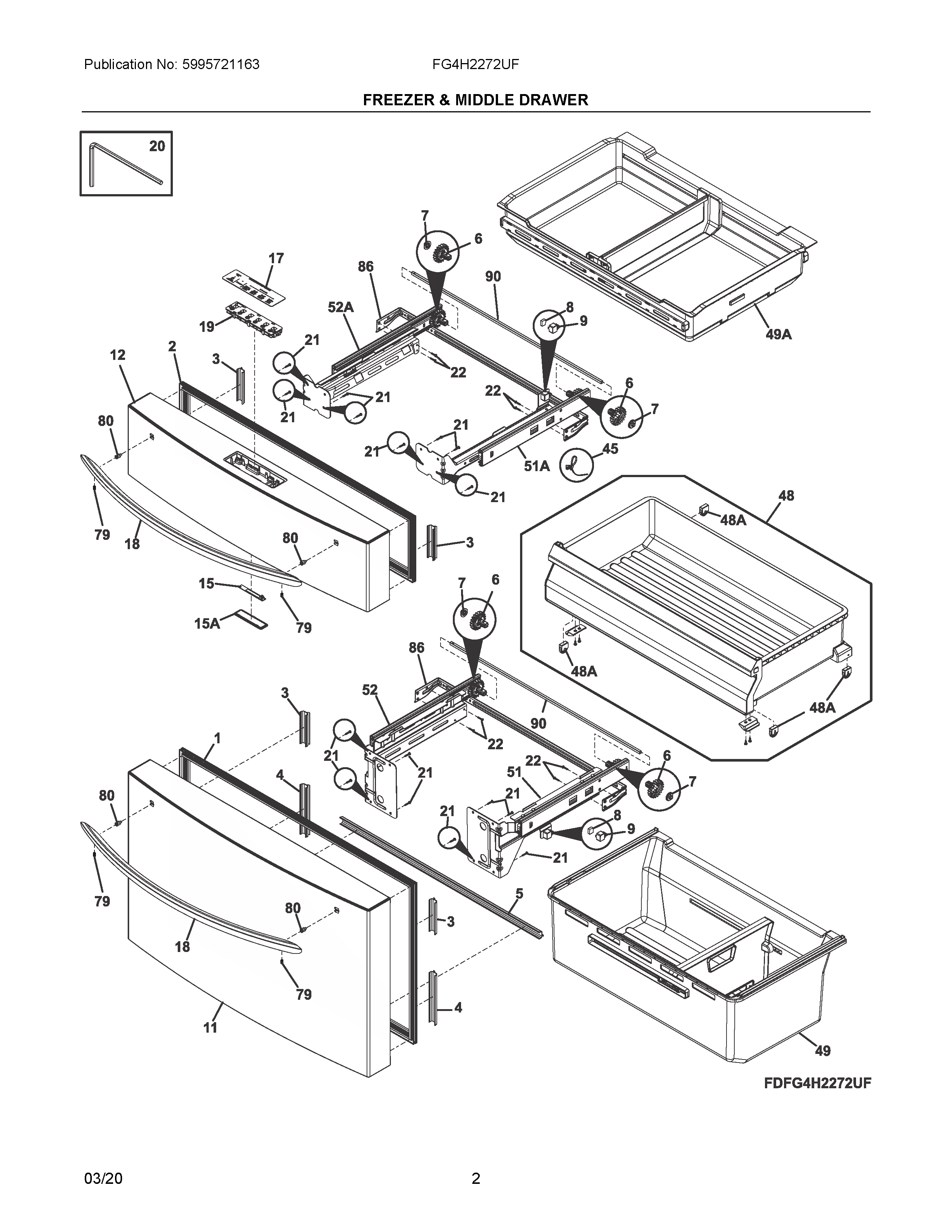

FG4H2272UF 02 – FREEZER & MIDDLE DRAWER

Products

PositionProduct
NIASCREW, PHIL PN HD, M4 X 8
NIA5304519048 Frigidaire Refrigerator Harness
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
35304519041 Frigidaire Refrigerator Gasket
6140025649033 Frigidaire Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
115304531706 Frigidaire Refrigerator Door Assembly
125304531709 Frigidaire Refrigerator Door Assembly
15A5304519049 Frigidaire Refrigerator Lens
155304525264 Frigidaire LED Light
175304527898 Frigidaire Refrigerator Overlay
185304519051 Frigidaire Refrigerator Handle
195304531769 Frigidaire Refrigerator PCB Board
20241982136 Frigidaire Handle MTG KIT
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
485304524919 Frigidaire Drawer
49A5304529588 Frigidaire Refrigerator Basket Assembly
495304519057 Frigidaire Refrigerator Assembly-Basket
515304519059 Frigidaire Refrigerator Slider
51A5304519060 Frigidaire Refrigerator Slider
525304519061 Frigidaire Refrigerator Slider
52A5304519062 Frigidaire Refrigerator Slider
79218755402 Frigidaire Refrigerator Set Screw
805304519063 Frigidaire Refrigerator Screw
865304519064 Frigidaire Refrigerator Bracket
90Shaft, slider, telescopic
