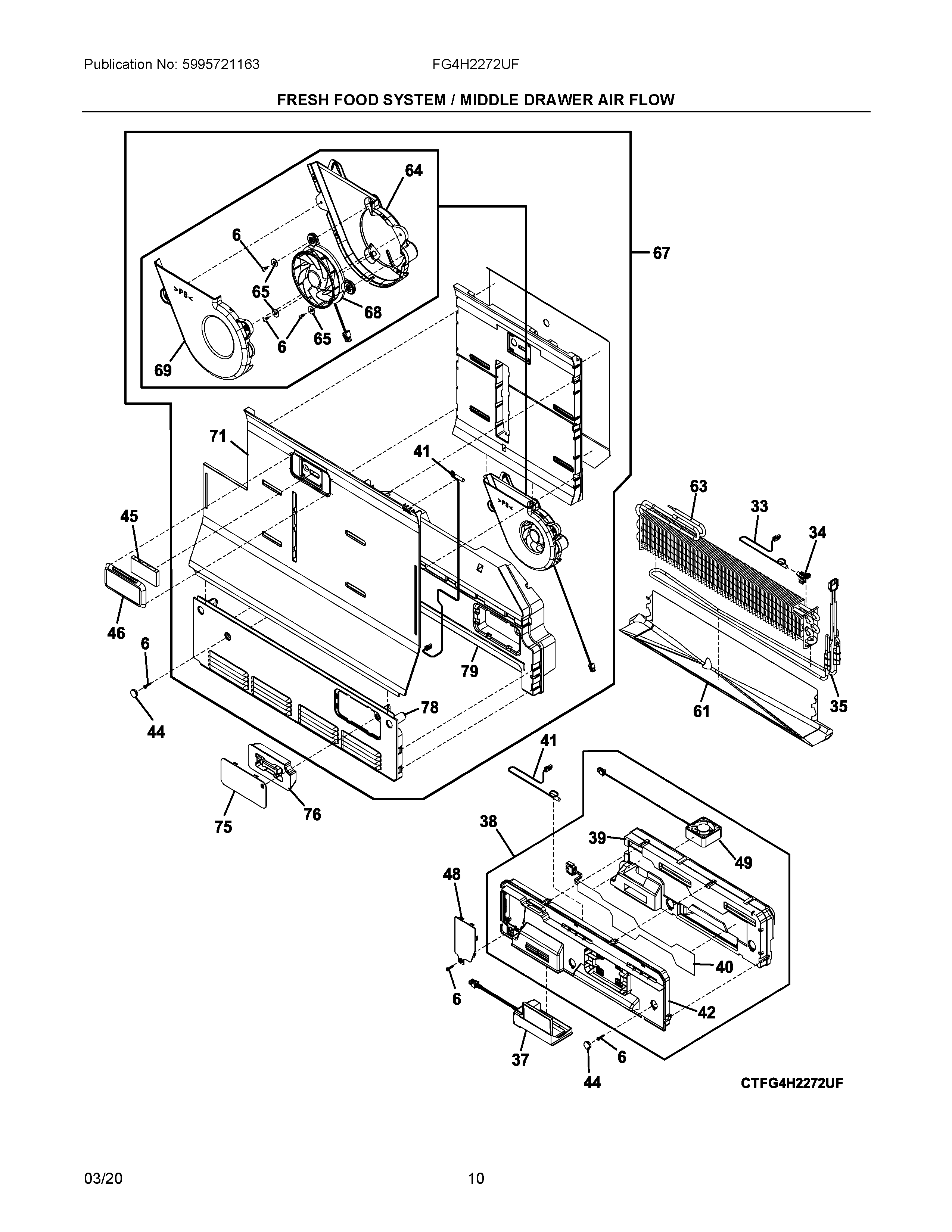

FG4H2272UF 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

FG4H2272UF 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Written by

in

FG4H2272UF 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Products

PositionProduct
NIASEAL, 6X20X450, FOAM
NI811950601 Frigidaire Refrigerator Seal
6811949503 Frigidaire Screw
335303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35Heater, defrost, evaporator
375304519166 Frigidaire Refrigerator Baffle Assembly
385304519167 Frigidaire Refrigerator Assembly Cover
39Duct Assembly, air flow, middle drawer
405304519169 Frigidaire Refrigerator Heater Assembly
415303918775 Frigidaire Refrigerator Thermistor
425304519170 Frigidaire Cover
445304524004 Frigidaire Refrigerator Cover
45PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
465304519171 Frigidaire Refrigerator Cover
48COVER, WINDOW, MIDDLE DRAWER
495304519173 Frigidaire Refrigerator Fan Assembly
615304519180 Frigidaire Drain Trough
635304526811 Frigidaire Refrigerator Evaporator
645304519182 Frigidaire Refrigerator Bracket
655304519183 Frigidaire Washer
685304519186 Frigidaire Refrigerator Fan Assembly
695304519187 Frigidaire Refrigerator Housing
715304524539 Frigidaire Refrigerator Cover Assembly
755304519189 Frigidaire Cover
765304522062 Frigidaire Insulation Assembly
78Cover, evaporator, fresh food
795304534782 Frigidaire Duct
