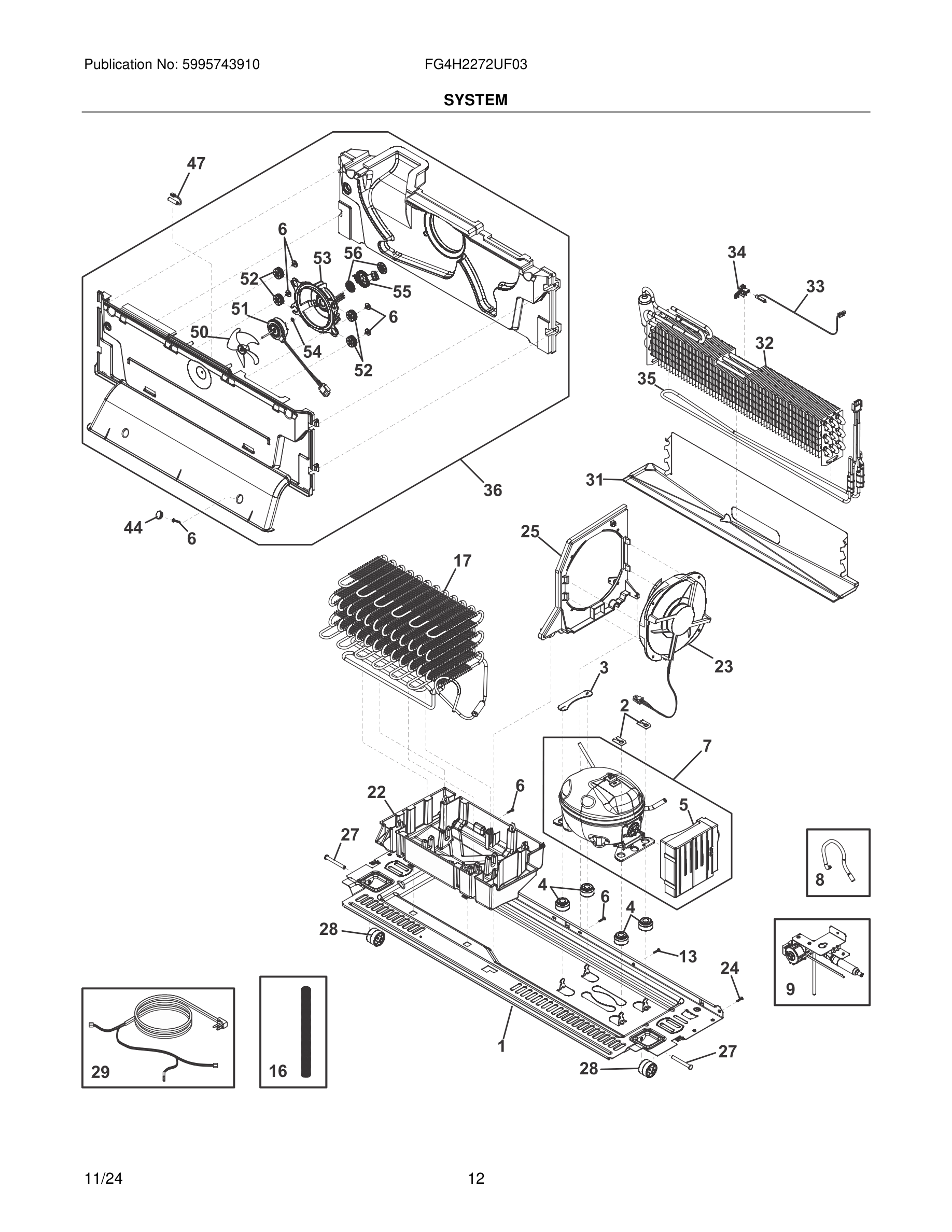

FG4H2272UF03 13 – SYSTEM

FG4H2272UF03 13 – SYSTEM

Written by

in

FG4H2272UF03 13 – SYSTEM

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
35304524607 Frigidaire Clamp
4811978901 Frigidaire Refrigerator Grommet
5#242508216 Frigidaire Refrigerator Inverter
6811949503 Frigidaire Screw
7#5304520946 Frigidaire Refrigerator Compressor and Inverter
8#5304519154 Frigidaire Refrigerator Tube
9#5304529531 Frigidaire Refrigerator Valve
135304519110 Frigidaire Screw
165304519156 Frigidaire Refrigerator Drain Tube
17#CONDENSER ASSY DYNAMIC
225304529527 Frigidaire Refrigerator Pan
23#5304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
29#5304523066 Frigidaire Refrigerator Power Cord
31DRAIN TROUGH
32#5304529994 Frigidaire Refrigerator Cover
33#5303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35#Heater, defrost, evaporator
36#5304523067 Frigidaire Refrigerator Cover
445304524004 Frigidaire Refrigerator Cover
47#5303918775 Frigidaire Refrigerator Thermistor
50BLADE, EVAPORATOR FAN
51#809069207 Frigidaire Refrigerator Motor
52GROMMET, FAN SHROUND, FREEZER
535304519175 Frigidaire Shroud
54WASHER, SLINGER, NYLON
555304519177 Frigidaire Refrigerator Clip
565304519178 Frigidaire Refrigerator Grommet
