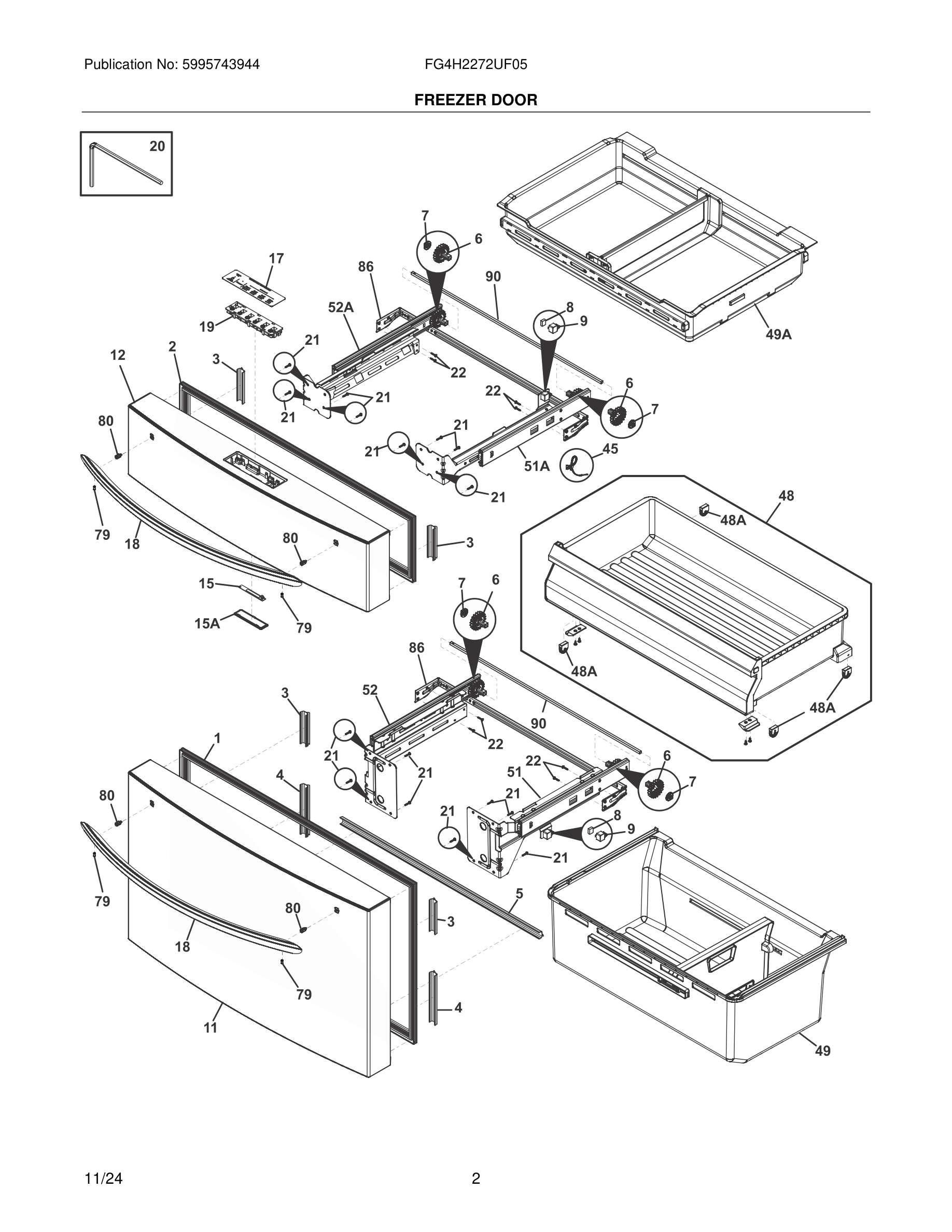

FG4H2272UF05 03 – FREEZER DOOR

FG4H2272UF05 03 – FREEZER DOOR

Written by

in

FG4H2272UF05 03 – FREEZER DOOR

Products

PositionProduct
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
35304519041 Frigidaire Refrigerator Gasket
6140025649033 Frigidaire Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
115304531706 Frigidaire Refrigerator Door Assembly
125304531709 Frigidaire Refrigerator Door Assembly
15#5304525264 Frigidaire LED Light
15A5304519049 Frigidaire Refrigerator Lens
175304527898 Frigidaire Refrigerator Overlay
185304519051 Frigidaire Refrigerator Handle
19*#5304519048 Frigidaire Refrigerator Harness
19#5304531769 Frigidaire Refrigerator PCB Board
20241982136 Frigidaire Handle MTG KIT
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
485304524919 Frigidaire Drawer
495304519057 Frigidaire Refrigerator Assembly-Basket
49A5304529588 Frigidaire Refrigerator Basket Assembly
51A5304519060 Frigidaire Refrigerator Slider
515304519059 Frigidaire Refrigerator Slider
52A5304519062 Frigidaire Refrigerator Slider
525304519061 Frigidaire Refrigerator Slider
79218755402 Frigidaire Refrigerator Set Screw
805304519063 Frigidaire Refrigerator Screw
865304519064 Frigidaire Refrigerator Bracket
90*SCREW, PHIL PN HD, M4 X 8
90Shaft, slider, telescopic
