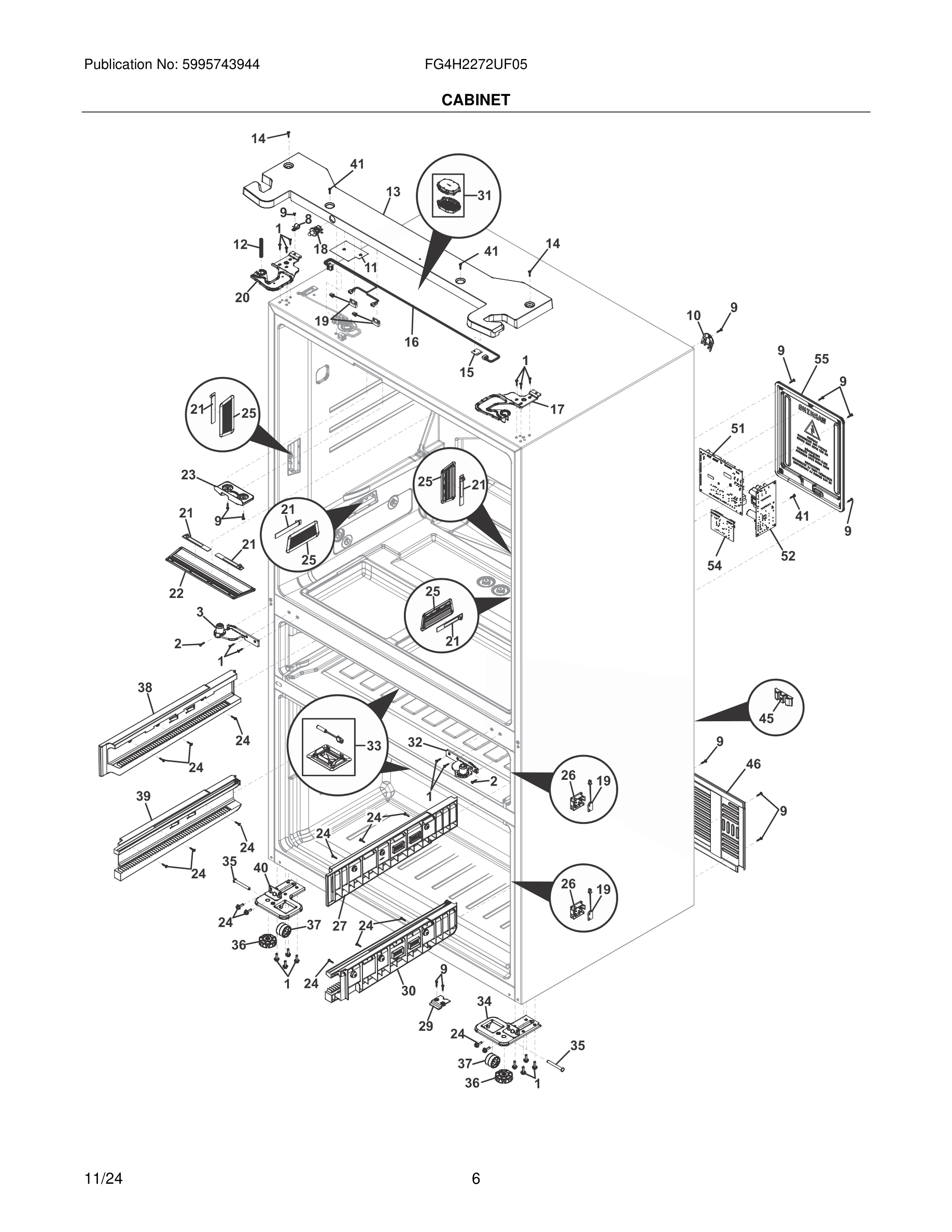

FG4H2272UF05 07 – CABINET

FG4H2272UF05 07 – CABINET

Written by

in

FG4H2272UF05 07 – CABINET

Products

PositionProduct
*#5304519116 Frigidaire Refrigerator Harness
1811949401 Frigidaire Refrigerator Screw
25304519084 Frigidaire Screw
35304519085 Frigidaire Refrigerator Hinge
55304519124 Frigidaire Roller
8CLAMP
9811949503 Frigidaire Screw
105304519086 Frigidaire Refrigerator Cover
11Shield, eyebrow
125304519067 Frigidaire Refrigerator Spring
135304536150 Frigidaire Cover Assembly
145304519089 Frigidaire Refrigerator Screw
15#5304524003 Frigidaire Refrigerator PC Board
16#5304519091 Frigidaire Refrigerator Harness
175304536152 Frigidaire Hinge
18#5304519093 Frigidaire Refrigerator Switch
19#5304527992 Frigidaire Freezer Wire Harness with Reed Switch
205304536153 Frigidaire Hinge
21#5304525264 Frigidaire LED Light
22LENS, LED LIGHT, DOUBLE
235304520058 Frigidaire Refrigerator Guide Assembly
24SCREW
25LENS, LED LIGHT
265304519100 Frigidaire Refrigerator Cover
27Support, drawer slider, RH middle
29Cover, divider, top
305304519103 Frigidaire Support
315303918849 Frigidaire Refrigerator Housing Kit
325304519104 Frigidaire Refrigerator Hinge
33#5303918850 Frigidaire Refrigerator Thermistor Kit
345304519105 Frigidaire Refrigerator Bracket
35811998302 Frigidaire Refrigerator Shaft
365304519106 Frigidaire Refrigerator Foot
37811666601 Frigidaire Refrigerator Roller
385304519107 Frigidaire Support
395304519108 Frigidaire Refrigerator Support
405304519109 Frigidaire Refrigerator Bracket
415304519110 Frigidaire Screw
455304519111 Frigidaire Refrigerator Clip
465304519112 Frigidaire Refrigerator Cover
51#PC Board, control, main
52#5304526795 Frigidaire Refrigerator PC Board
54#5304519115 Frigidaire Refrigerator Power Control Board
555304519117 Frigidaire Cover
