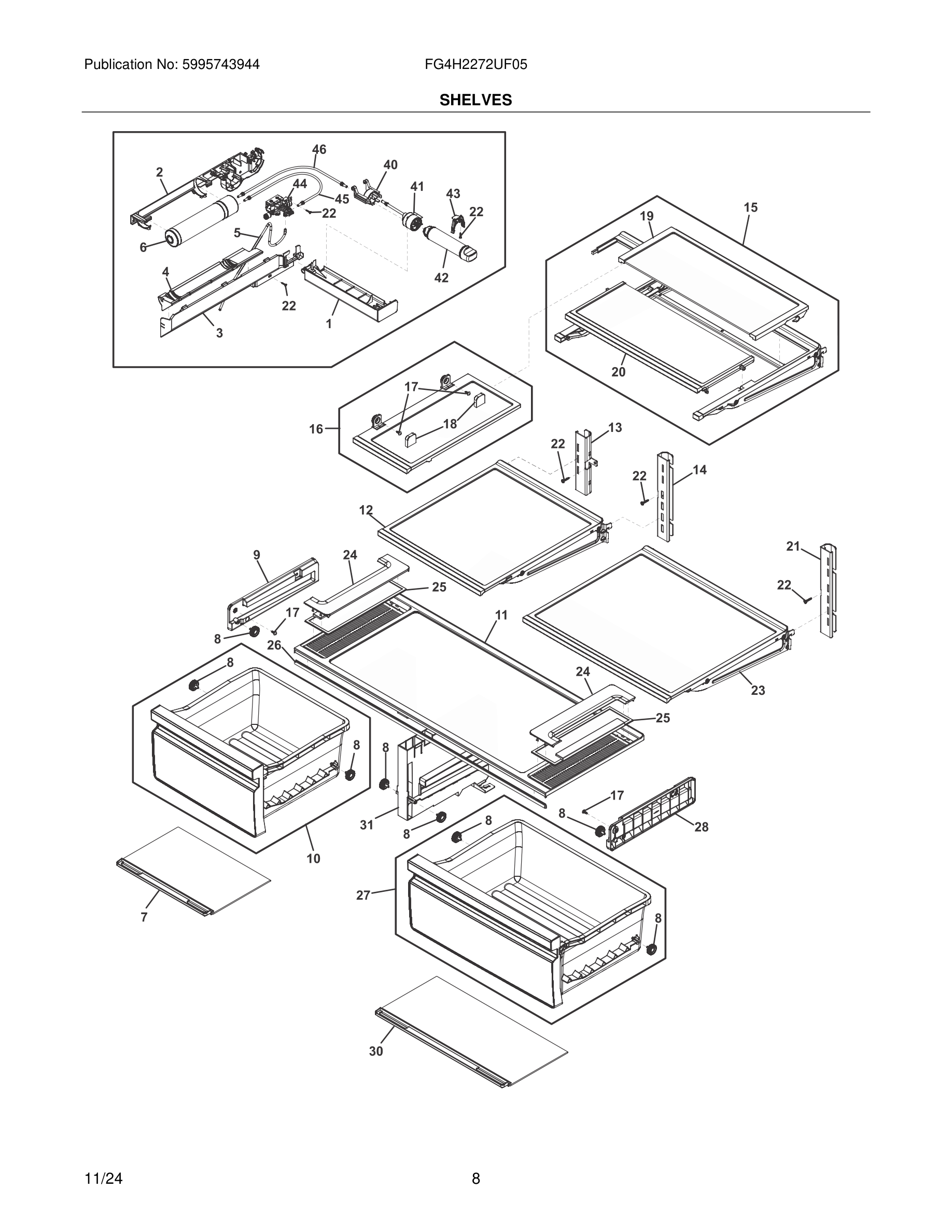

FG4H2272UF05 09 – SHELVES

FG4H2272UF05 09 – SHELVES

Written by

in

FG4H2272UF05 09 – SHELVES

Products

PositionProduct
*242200102 Frigidaire Refrigerator Clip
15304533262 Frigidaire Refrigerator Cover
25304519119 Frigidaire Refrigerator Support
35304519120 Frigidaire Cover
4Insulation, water tank
5#5304527422 Frigidaire Refrigerator Tube
6#Tank, water, disp reservoir
75304519123 Frigidaire Refrigerator Cover
85304519124 Frigidaire Roller
95304519125 Frigidaire Refrigerator Rail
105304524914 Frigidaire Crisper Drawer
11COVER ASMY, CHRISPER, W/GLASS
125304533032 Frigidaire Shelf Assemblyy
13Bracket, cantilever shlf, LH
14Bracket, cantilever shlf, center
155304519131 Frigidaire Refrigerator Shelf Assembly
165304519132 Frigidaire Refrigerator Shelf Assembly
17Screw, hilo phil pn, .25", white
185304519133 Frigidaire Refrigerator Cover Assembly
19Shelf, foldable, glass, rear
20Shelf, foldable, glass, front
215304519136 Frigidaire Bracket Assembly
22811949503 Frigidaire Screw
235304532999 Frigidaire Shelf Assembly
24Housing, auto humidity
255304519139 Frigidaire Shelf Trim
265304519140 Frigidaire Refrigerator Gasket
275304524915 Frigidaire Refrigerator Assembly Drawer
28Rail, crisper, RH side
305304519143 Frigidaire Refrigerator Cover
315304532661 Frigidaire Dishwasher Divider
405304531743 Frigidaire Refrigerator Guide
41#5304533202 Frigidaire Refrigerator Manifold
42#EPTWFU01 Frigidaire Refrigerator PureSource Ultra II Water Filter
435304519148 Frigidaire Refrigerator Holder
44#5304519149 Frigidaire Refrigerator Water Valve
45#Tube, water tank, to double valve
46#Tube, water filter, to tank
