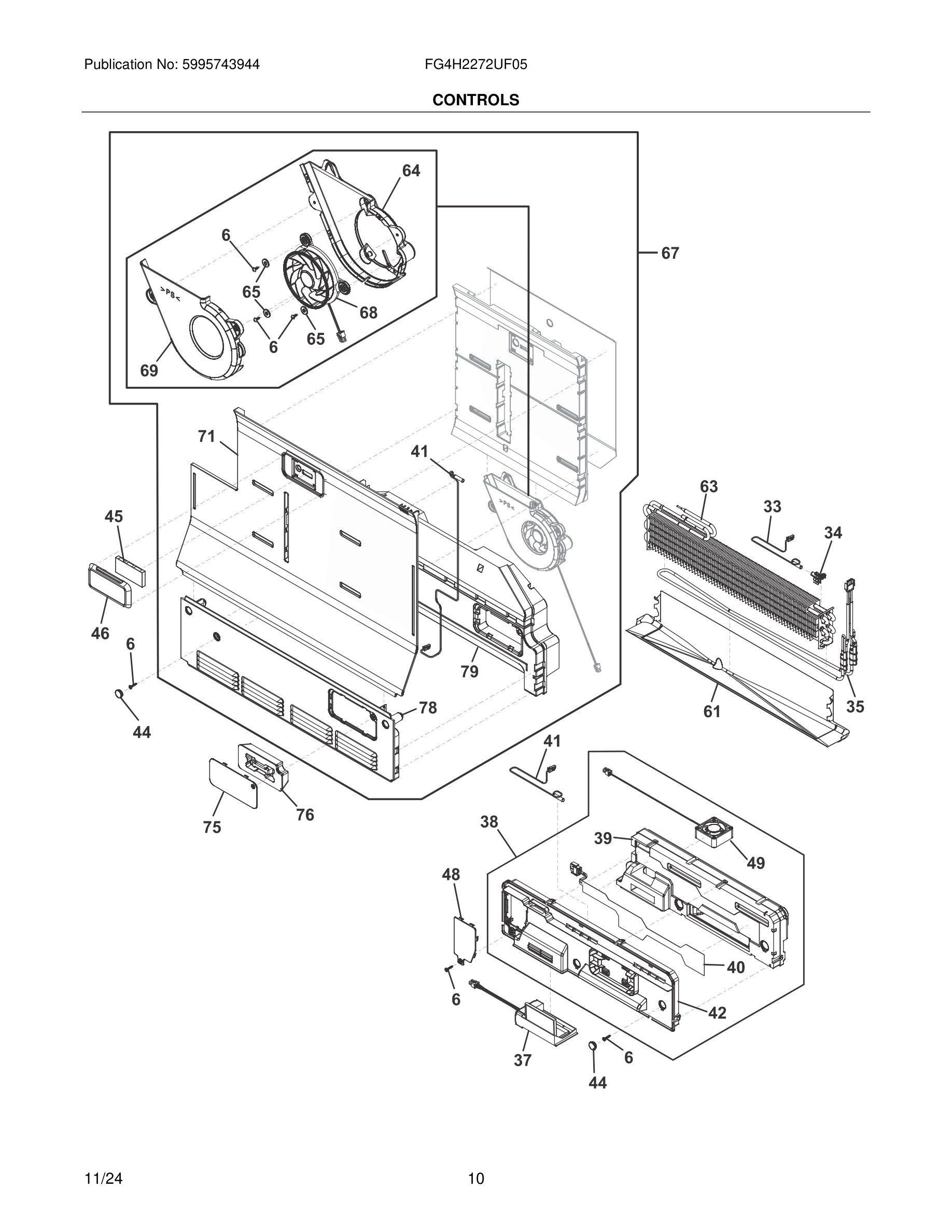

FG4H2272UF05 11 – CONTROLS

FG4H2272UF05 11 – CONTROLS

Written by

in

FG4H2272UF05 11 – CONTROLS

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
6811949503 Frigidaire Screw
33#5303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35#Heater, defrost, evaporator
37#5304519166 Frigidaire Refrigerator Baffle Assembly
37*SEAL, 6X20X450, FOAM
38#5304519167 Frigidaire Refrigerator Assembly Cover
39Duct Assembly, air flow, middle drawer
40#5304519169 Frigidaire Refrigerator Heater Assembly
41#5303918775 Frigidaire Refrigerator Thermistor
425304519170 Frigidaire Cover
445304524004 Frigidaire Refrigerator Cover
45PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
465304519171 Frigidaire Refrigerator Cover
48COVER, WINDOW, MIDDLE DRAWER
49#5304519173 Frigidaire Refrigerator Fan Assembly
615304519180 Frigidaire Drain Trough
63#5304526811 Frigidaire Refrigerator Evaporator
645304519182 Frigidaire Refrigerator Bracket
655304519183 Frigidaire Washer
68#5304519186 Frigidaire Refrigerator Fan Assembly
695304519187 Frigidaire Refrigerator Housing
715304524539 Frigidaire Refrigerator Cover Assembly
755304519189 Frigidaire Cover
765304522062 Frigidaire Insulation Assembly
78Cover, evaporator, fresh food
795304534782 Frigidaire Duct
