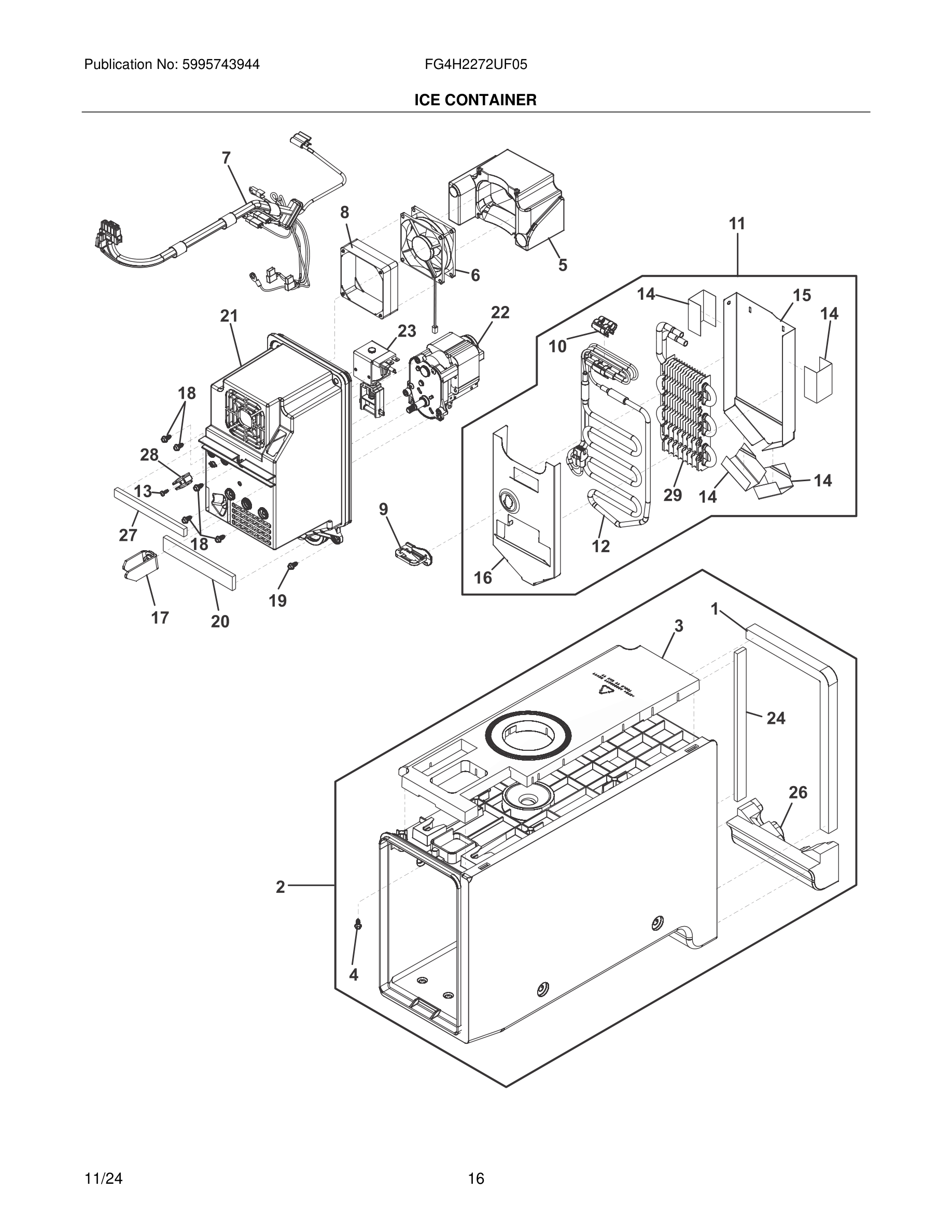

FG4H2272UF05 17 – ICE CONTAINER

FG4H2272UF05 17 – ICE CONTAINER

Written by

in

FG4H2272UF05 17 – ICE CONTAINER

Products

PositionProduct
15304524344 Frigidaire Refrigerator Gasket
25303918901 Frigidaire Ice Maker Housing
4241953902 Frigidaire Refrigerator Screw
55304523073 Frigidaire Refrigerator Duct
6#5304524796 Frigidaire Refrigerator Motor
7#5304519206 Frigidaire Refrigerator Harness
85304508063 Frigidaire Refrigerator Grommet
95304508037 Frigidaire Refrigerator Connector
105304519629 Frigidaire Refrigerator Clip
12#5304519630 Frigidaire Refrigerator Evaporator Assembly
13241641502 Frigidaire Refrigerator Screw
145304485759 Frigidaire Refrigerator Tape
17241829001 Frigidaire Refrigerator Bar Drive
18240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
19519088008 Frigidaire Refrigerator Screw
205303918784 Frigidaire Refrigerator Air Handler Housing
215304519207 Frigidaire Refrigerator Housing
22#5304519208 Frigidaire Refrigerator Motor
23#241675705 Frigidaire Refrigerator Solenoid
245304519209 Frigidaire Refrigerator Gasket
275304519211 Frigidaire Refrigerator Gasket
285304519212 Frigidaire Refrigerator Pin
