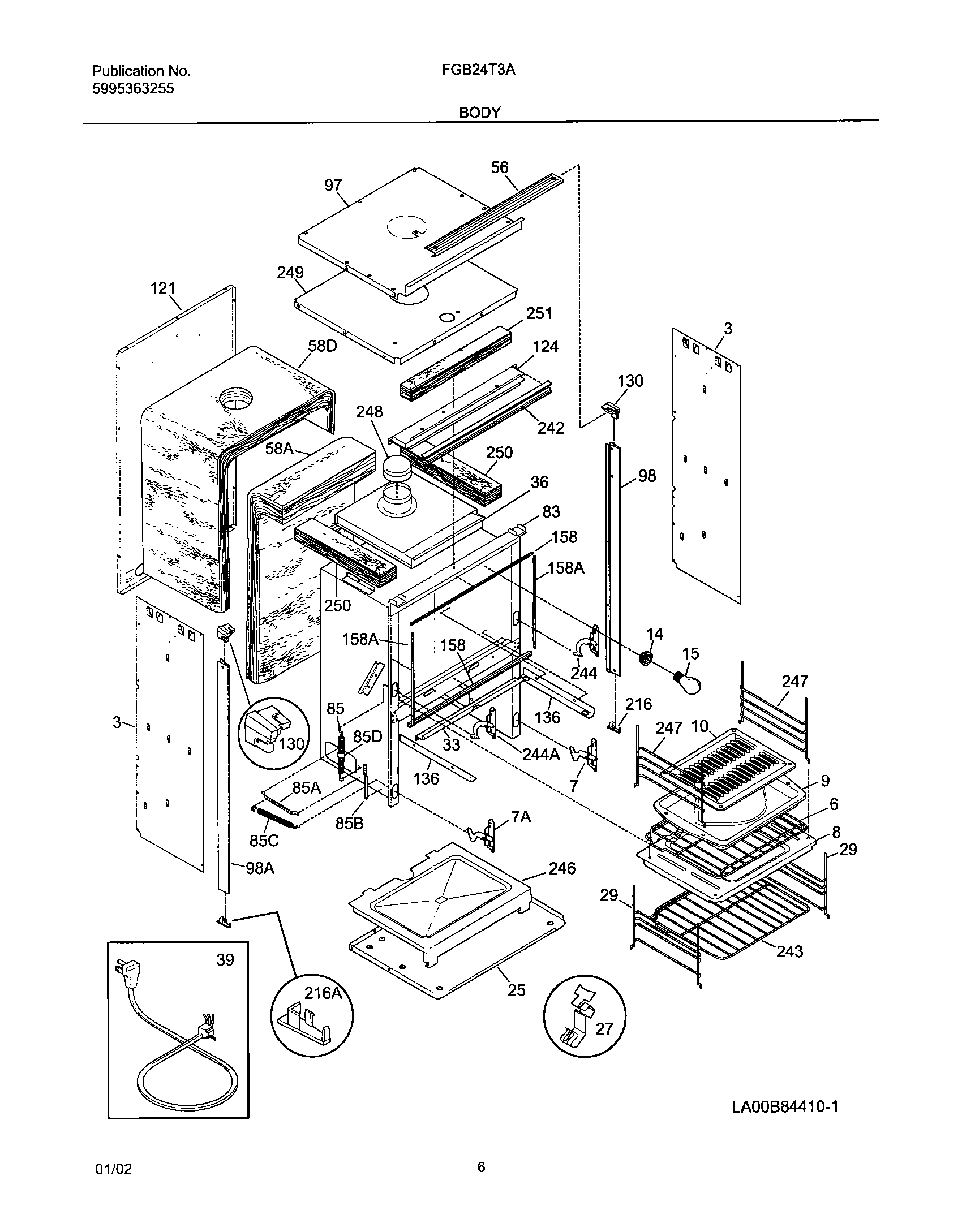

FGB24T3ABA 07 – BODY

FGB24T3ABA 07 – BODY

Written by

in

FGB24T3ABA 07 – BODY

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NI216858001 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NISCREW (8-18 X 1 )
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 5304400428
3WCI 5303317132
6WCI 08012158
7AHinge Assy,LH lower
7WCI 5303298313
8WCI 318136500
9WCI 5303317977
10WCI 5303317976
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
275303284616 Frigidaire Range Bulb Clip Thermostat
29GLIDE-BROILER RACK
33WCI 5303317128
36FLUE
395304515659 Frigidaire Oven Power Cord
56WCI 318028200
58DWCI 318133724
58AWCI 318133723
83WCI 318109510
85DWCI 318166900
85CSPRING-OVEN DOOR,UPPER
85BWCI 5303317126
85AWCI 318113300
85WCI 5303317711
97WCI 5303317130
98ATRIM-BODYSIDE,LH
98TRIM-BODYSIDE,RH
121WCI 5303317131
124WCI 318076801
130WCI 318034600
136WCI 5303317129
158SEAL-DOOR,BLACK ,TOP BROILER
158SEAL-SIDE,BAKE OVEN
216CAP-END BOTTOM,RH
216CAP-END BOTTOM,LH
242TRIM CENTER
243WCI 3201495
244Hinge Assy,oven door ,RH upper
244Hinge Assy,oven door ,LH upper
246WCI 318133600
247GLIDE-OVEN RACK
248WCI 5303317121
249WCI 5304400385
250WCI 318133756
251WCI 318133772
