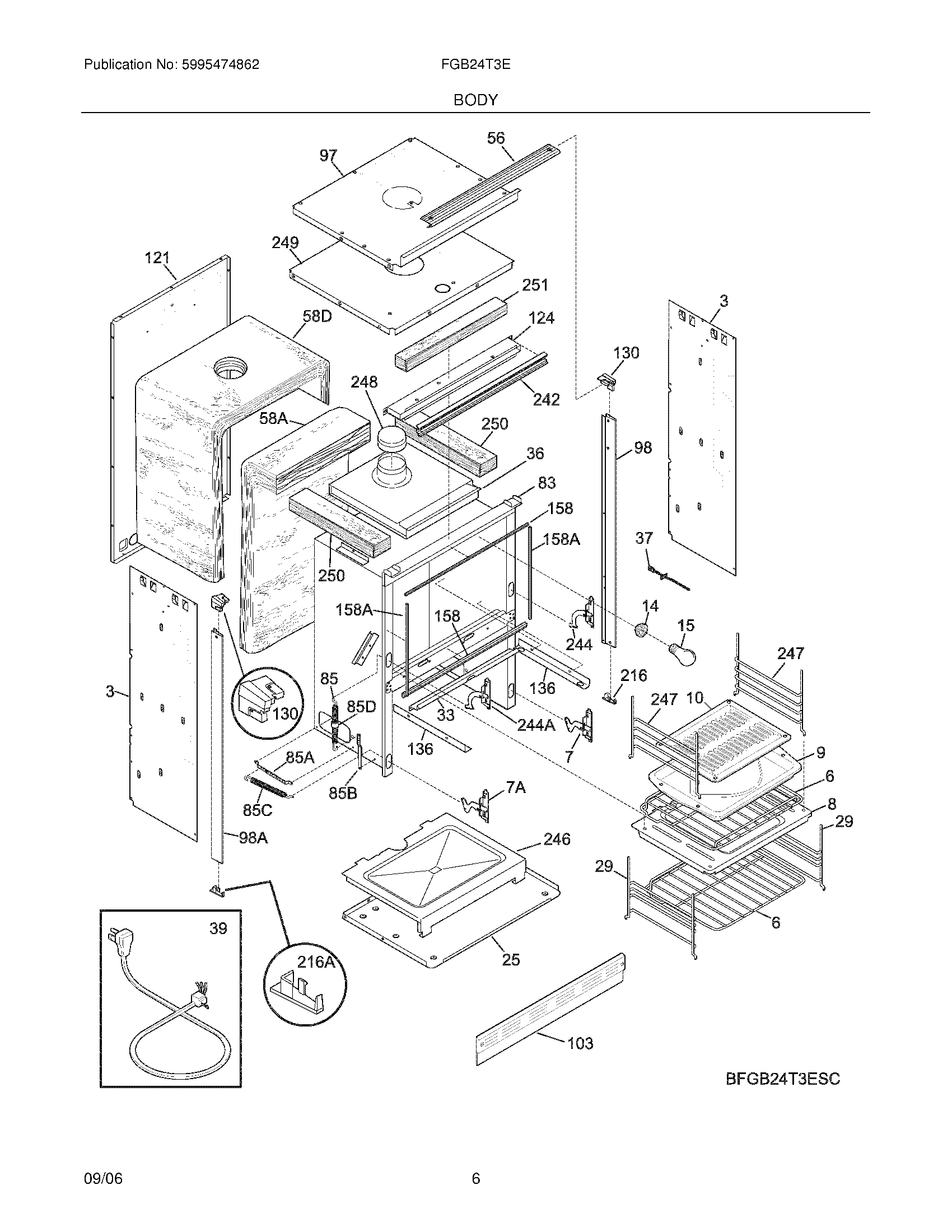

FGB24T3EBC 07 – BODY

FGB24T3EBC 07 – BODY

Written by

in

FGB24T3EBC 07 – BODY

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NIWCI 318232522
NI5304453707 Frigidaire Oven Screw
NISCREW (8-18 X 1 )
NI5303211311 Frigidaire Refrigerator Screw
3WCI 5303317132
6WCI 318345800
7AHinge Assy,LH lower
7WCI 5303298313
8WCI 318136500
9WCI 5303317977
10WCI 5303317976
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
29GLIDE-BROILER RACK
33WCI 5303317128
36FLUE
37316217005 Frigidaire Oven Probe
395304515659 Frigidaire Oven Power Cord
56WCI 318028200
58DWCI 318285008
58AWCI 318285007
83WCI 318109511
85WCI 5303317711
85BWCI 5303317126
85DWCI 318166900
85CSPRING-OVEN DOOR,UPPER
85AWCI 318113300
97WCI 5303317130
98ATRIM-BODYSIDE,LH
98TRIM-BODYSIDE,RH
103WCI 5303316735
121WCI 5303317131
124WCI 318076801
130WCI 318034600
136WCI 5303317129
158SEAL-DOOR,BLACK ,TOP BROILER
158SEAL-SIDE,BAKE OVEN
216CAP-END BOTTOM,LH
216CAP-END BOTTOM,RH
242TRIM CENTER
244Hinge Assy,oven door ,RH upper
244Hinge Assy,oven door ,LH upper
246WCI 318133600
247GLIDE-OVEN RACK
248WCI 5303317121
249WCI 5304400385
250WCI 318285042
251WCI 318285048
