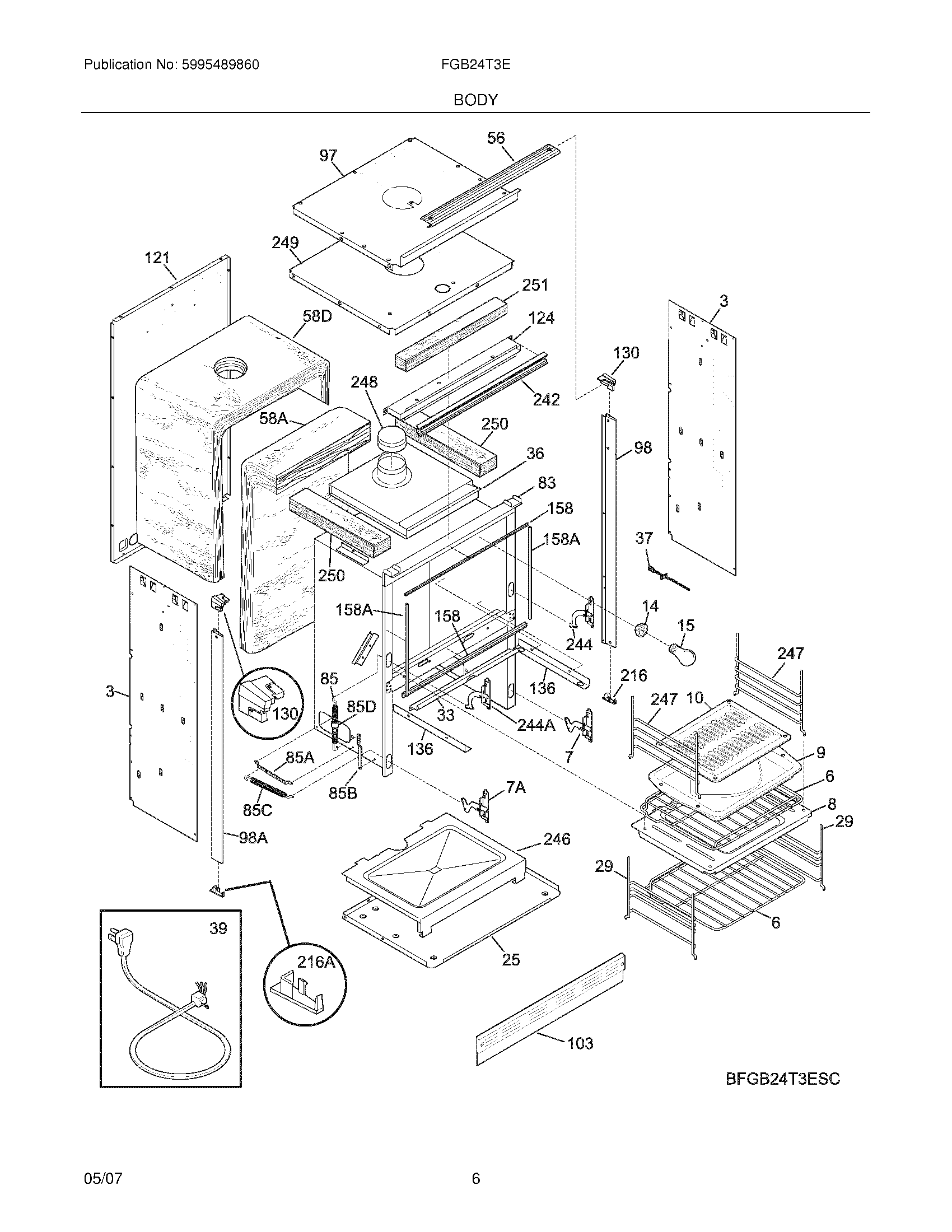

FGB24T3EBD 07 – BODY

FGB24T3EBD 07 – BODY

Written by

in

FGB24T3EBD 07 – BODY

Products

PositionProduct
NI5304453707 Frigidaire Oven Screw
NIWCI 318232522
NI5303211311 Frigidaire Refrigerator Screw
NISCREW (8-18 X 1 )
3WCI 5303317132
6WCI 318345800
7WCI 5303298313
7AHinge Assy,LH lower
8WCI 318136500
9WCI 5303317977
10WCI 5303317976
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
25WCI 5303317712
29GLIDE-BROILER RACK
33WCI 5303317128
36FLUE
37316217005 Frigidaire Oven Probe
395304515659 Frigidaire Oven Power Cord
56WCI 318028200
58DWCI 318285008
58AWCI 318285007
83WCI 318109511
85CSPRING-OVEN DOOR,UPPER
85DWCI 318166900
85BWCI 5303317126
85WCI 5303317711
85AWCI 318113300
97WCI 5303317130
98ATRIM-BODYSIDE,LH
98TRIM-BODYSIDE,RH
103WCI 5303316735
121WCI 5303317131
124WCI 318076801
130WCI 318034600
136WCI 5303317129
158SEAL-SIDE,BAKE OVEN
158SEAL-DOOR,BLACK ,TOP BROILER
216CAP-END BOTTOM,LH
216CAP-END BOTTOM,RH
242TRIM CENTER
244Hinge Assy,oven door ,LH upper
244Hinge Assy,oven door ,RH upper
246WCI 318133600
247GLIDE-OVEN RACK
248WCI 5303317121
249WCI 5304400385
250WCI 318285042
251WCI 318285048
