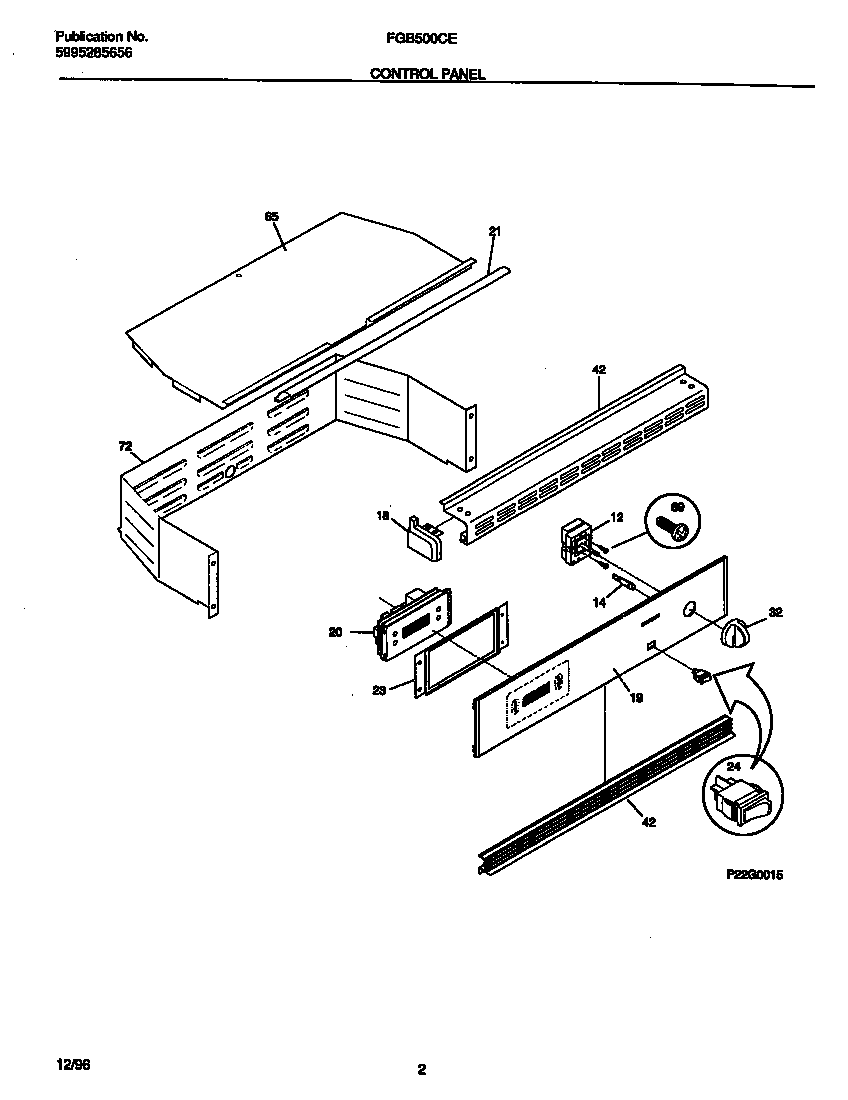

FGB500CEBA 02 – CONTROL PANEL

FGB500CEBA 02 – CONTROL PANEL

Written by

in

FGB500CEBA 02 – CONTROL PANEL

Products

PositionProduct
*25881WCI 5303300414
*25880WCI 5303280380
*25884WCI 5303311528
*25882WCI 5303320423
*25883PLATE, BACKUP, LIGHT SWITCH
9WCI 318027301
12AWCI 318058910
12BSCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
14WCI 318044602
18END CAP, BLACK, RH
18END CAP, BLACK, LH
19WCI 318129503
19SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
20CLOCK/TIMER, ELECTRONIC, BLACK
21WCI 318056901
23WCI 318015710
245304527841 Frigidaire Oven Rocker Switch (Black)
32WCI 318017205
42WCI 318028020
65WCI 5303308466
695303211311 Frigidaire Refrigerator Screw
72WCI 5303302397
