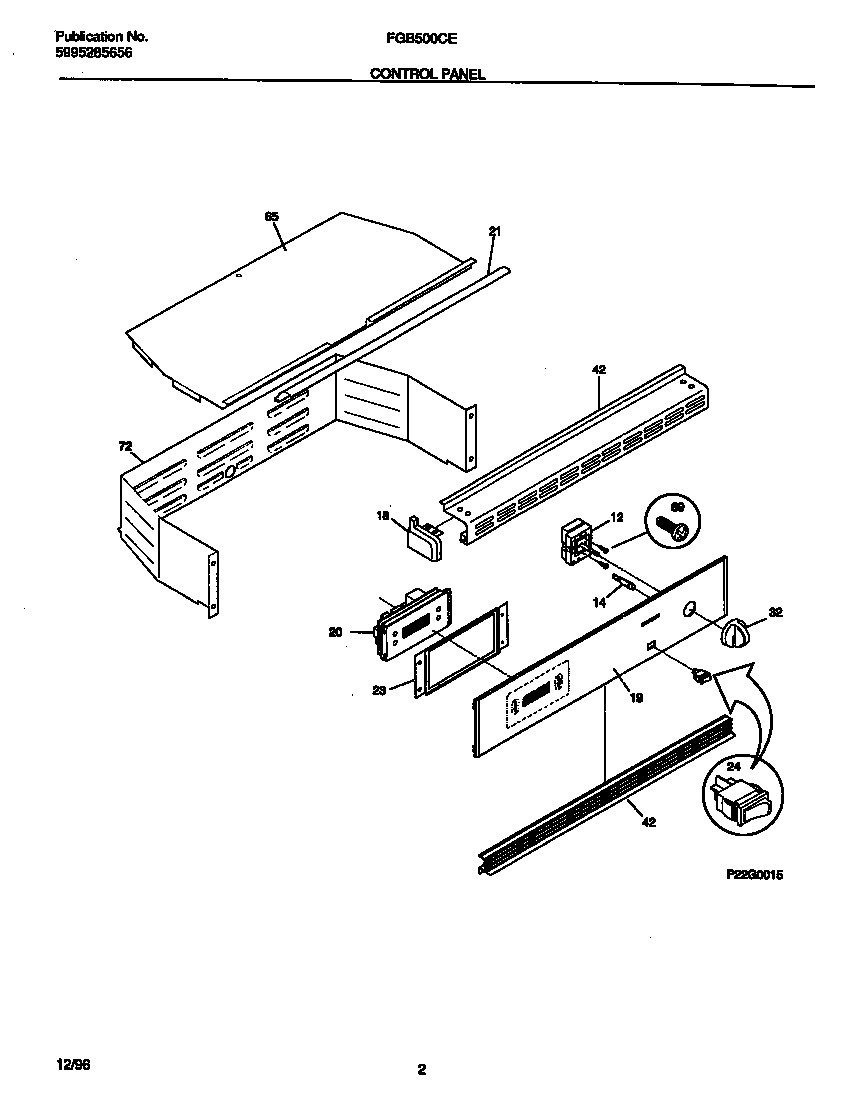

FGB500CESA 02 – CONTROL PANEL

Products

PositionProduct
*25881WCI 5303300414
*25880WCI 5303280380
*25884WCI 5303311528
*25882WCI 5303320423
*25883PLATE, BACKUP, LIGHT SWITCH
9WCI 318027300
12AWCI 318058910
12BSCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
14WCI 318044602
18WCI 5303310389
18WCI 5303310391
19WCI 318129502
19SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
20WCI 316066801
21TRIM-CANOPY/SHIELD
23WCI 318015710
245304527842 Frigidaire Rocker Switch
32WCI 318017206
42TRIM-SPLASHER, WHITE
65WCI 5303308466
695303211311 Frigidaire Refrigerator Screw
72WCI 5303302397
