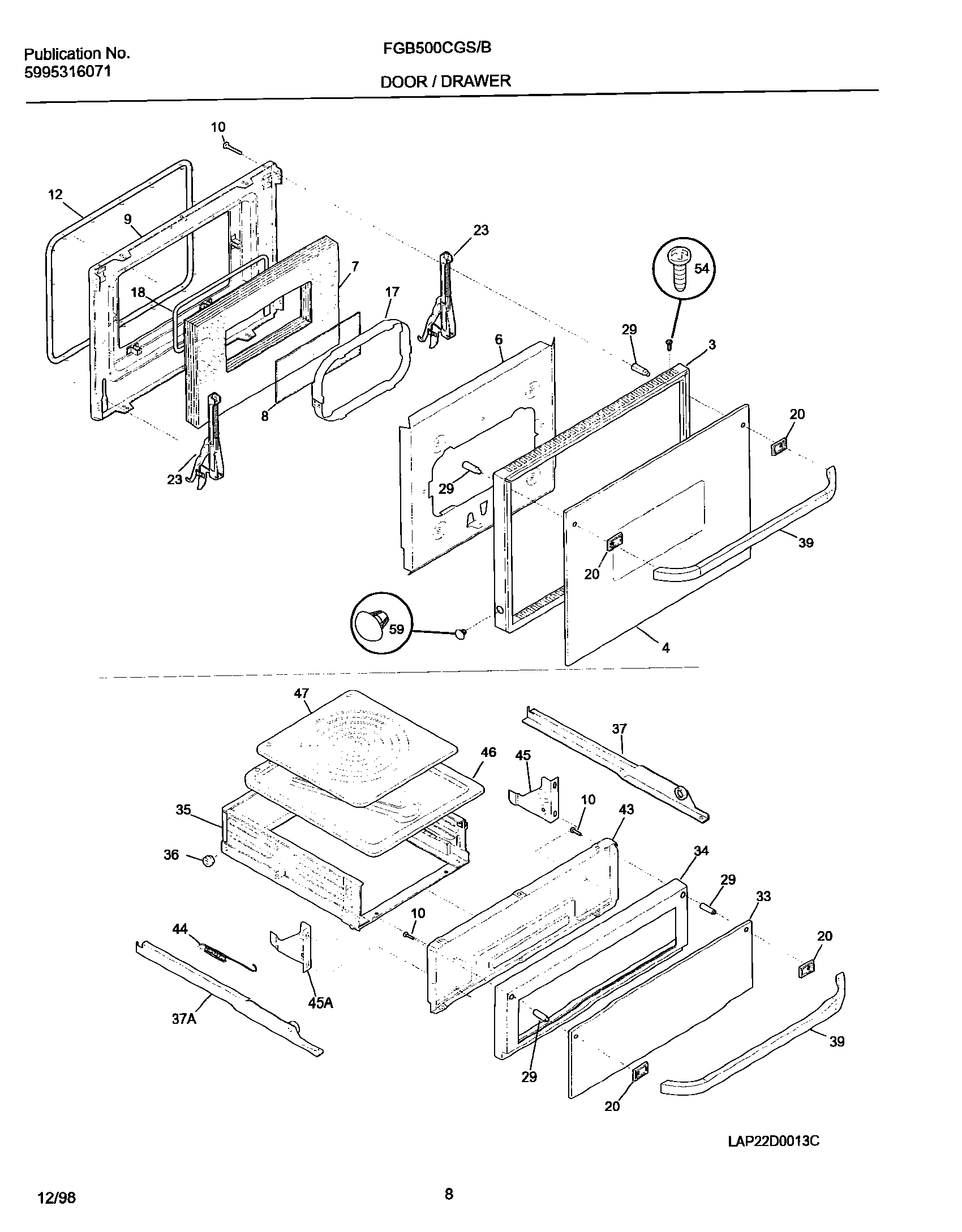

FGB500CGB1 09 – DOOR/DRAWER

FGB500CGB1 09 – DOOR/DRAWER

Written by

in

FGB500CGB1 09 – DOOR/DRAWER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
3WCI 318026510
4WCI 3202420
6WCI 318073600
7WCI 5303308470
8WCI 5303323828
9WCI 318156604
10WCI 5303311217
12WCI 5303316768
17SPACER-GLASS, LOWER OVEN
18AL-ROPE
20WCI 318014300
23WCI 5303325091
29SPACER-HANDLE MTG, (2)
33GLASS-DRAWER, FRONT
34WCI 318116000
355304504568 Frigidaire Drawer Assembly
36WCI 5303935079
37A3203723 Frigidaire Oven Rail
373203722 Frigidaire Oven Rail
39318362822 Frigidaire Handle Assembly
43WCI 318107800
44WCI 318088300
45AWCI 318024400
45WCI 318024401
46PAN-BROILER
47INSERT-BROILER PAN
545303308456 Frigidaire Oven Screw
59Plug,button
