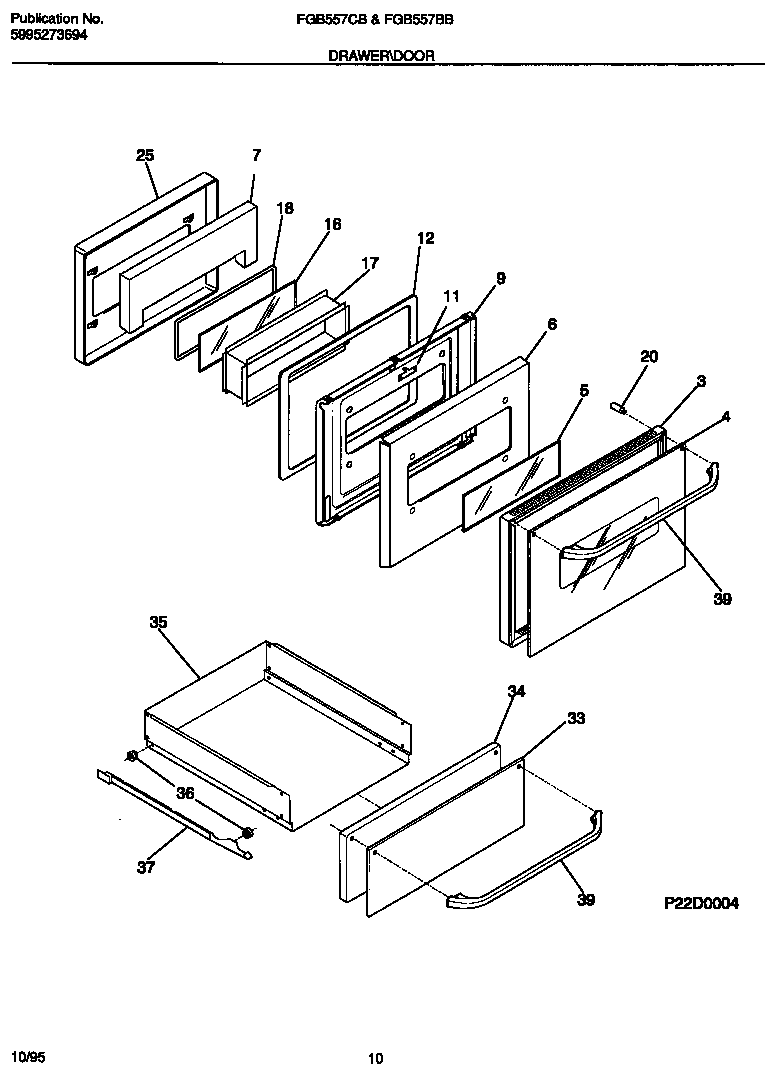

FGB557BBBB 05 – DRAWER/DOOR

Products

PositionProduct
*57175Plug,button
*57181SCREW,TRUSS HEAD,8-18 X 0.375
*57177REFLECTOR, ALUMINUM FOIL
*57179SPACER-HANDLE MTG, (2)
*57178WCI 318122101
*571825303308456 Frigidaire Oven Screw
*57176SPACER-GLASS
*57180Foam seal,(3)
3WCI 5303212560
4WCI 3202420
5GLASS-OVEN DOOR, HEAT BARRIER
6WCI 5303210005
7WCI 5303308470
9WCI 5303301256
11WCI 5301167830
12WCI 3205189
16GLASS – BAFFLE (2)
17WCI 5303210006
18WCI 3016263
20WCI 5303300175
25WCI 5303301253
33GLASS-DRAWER, FRONT
34PANEL-INNER DRAWER
35WCI 3051058
36WCI 5303935079
37A3203723 Frigidaire Oven Rail
37C5304414648 Frigidaire Oven Screw
37B3203722 Frigidaire Oven Rail
39HANDLE OV DOOR
395303310510 Frigidaire Oven Screw
