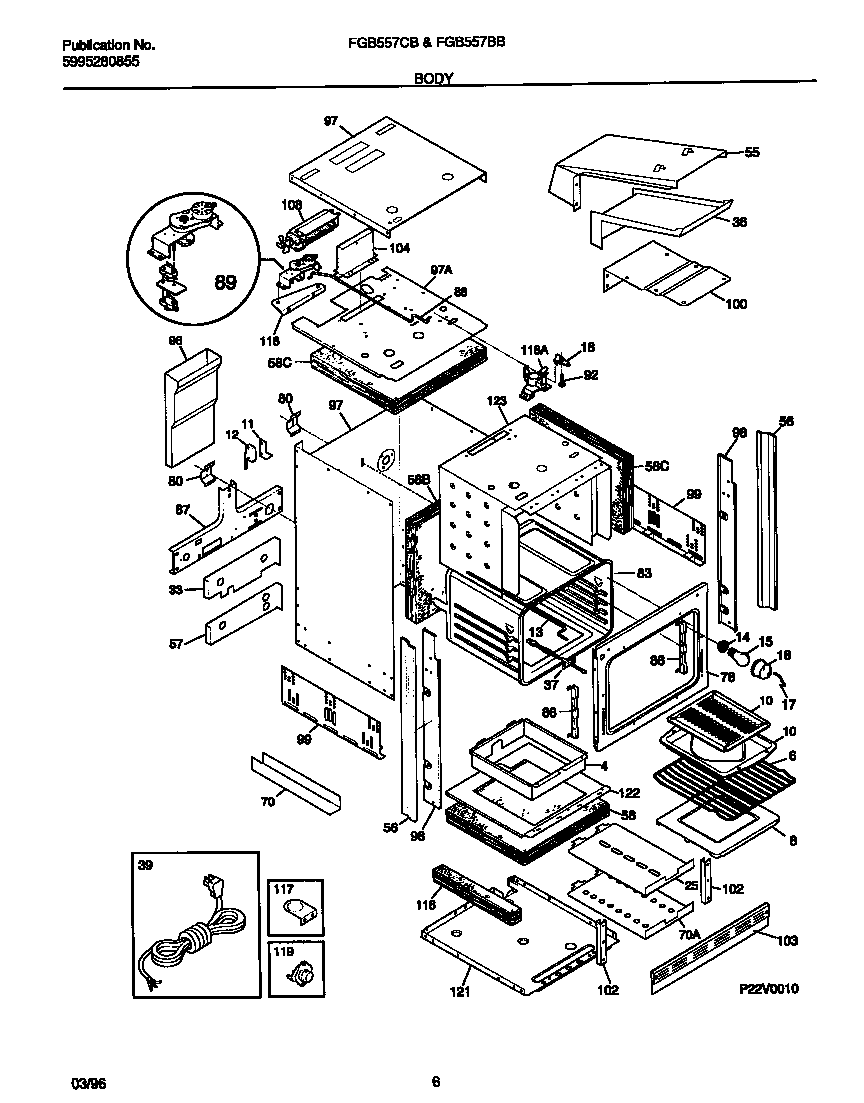

FGB557BBBD 04 – BODY

FGB557BBBD 04 – BODY

Written by

in

FGB557BBBD 04 – BODY

Products

PositionProduct
*216053131903 Frigidaire Door/Drawer Bumper
*21614SHIELD, BURNER BOX
*21607WCI 3019069
*21613INSULATION, OVEN BOTTOM
*21606WCI 3201632
*21610WCI 318119300
*216085304500008 Frigidaire Oven Screw
*21612WCI 5303210709
*216155303211311 Frigidaire Refrigerator Screw
*21611ANGLE-BURNER BOX
*2160908002868 Frigidaire 0 Screw Assembly
4WCI 5303280375
6WCI 5303299366
8WCI 318121400
10BWCI 5303317976
10AWCI 5303317977
11Bracket,light switch
12ASWITCH – OVEN LIGHT
12BWCI 5303308447
13BWCI 3204114
13AWCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39AWCI 5303308453
39BWCI 3018802
55SHIELD-FLUE
56TRIM-BODYSIDE
57WCI 5303308476
58BINSULATION, OVEN TOP
58WCI 5303210708
58AINSULATION, TOP & SIDES
58INSULATION, OVEN BACK
70SHIELD-INSULATION
70WCI 318071410
76WCI 318056130
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89WCI 5303269766
92AXLE – HINGE (2)
96DUCT-BLOWER
97AWCI 318066800
97BWRAPPER, TOP
97WCI 5303210683
98BWCI 318029400
98AWCI 318029401
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316735
104ADAPTER-FLUE
108WCI 318073000
116BINSULATION-BOTTOM, TOP
116AINSULATION-BOTTOM, SIDES, (2)
117WCI 5303302718
118HOUSING-DOOR LATCH
118WCI 5303308461
119SWITCH-THERMO
121WCI 5303305036
122WCI 5303210706
123SHIELD-OVEN, TOP & SIDES
