FGB557BBBD 05 – DRAWER/DOOR

FGB557BBBD 05 – DRAWER/DOOR

Written by

in

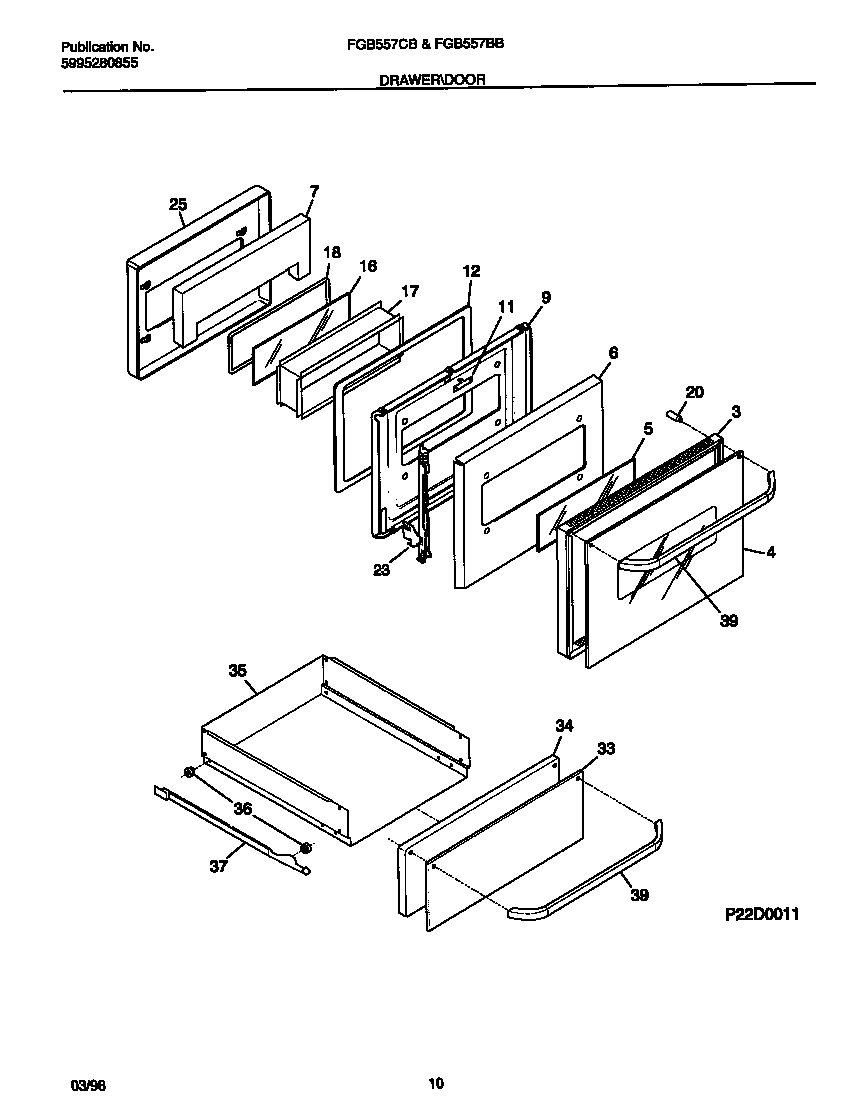

FGB557BBBD 05 – DRAWER/DOOR

Products

PositionProduct
*21618Plug,button
*21616WCI 5303210006
*216235303308456 Frigidaire Oven Screw
*21620WCI 318122101
*21617SPACER-HANDLE MTG, (2)
*21621REFLECTOR, ALUMINUM FOIL
*21622216858001 Frigidaire Refrigerator Screw
*21619SCREW,TRUSS HEAD,8-18 X 0.375
*21624Foam seal,(3)
3WCI 5303212560
4WCI 3202420
5GLASS-OVEN DOOR, HEAT BARRIER
6WCI 5303210005
7WCI 5303308470
9WCI 318038600
11WCI 5301167830
12WCI 3205189
16GLASS – BAFFLE (2)
17SPACER-GLASS
18WCI 3016263
20WCI 5303300175
23AWCI 316009400
23B5300809968 Frigidaire Dishwasher P-1 Washer
25WCI 318048300
33GLASS-DRAWER, FRONT
34PANEL-INNER DRAWER
35WCI 3051058
36WCI 5303935079
37B3203722 Frigidaire Oven Rail
37C5304414648 Frigidaire Oven Screw
37A3203723 Frigidaire Oven Rail
39HANDLE OV DOOR
395303310510 Frigidaire Oven Screw
