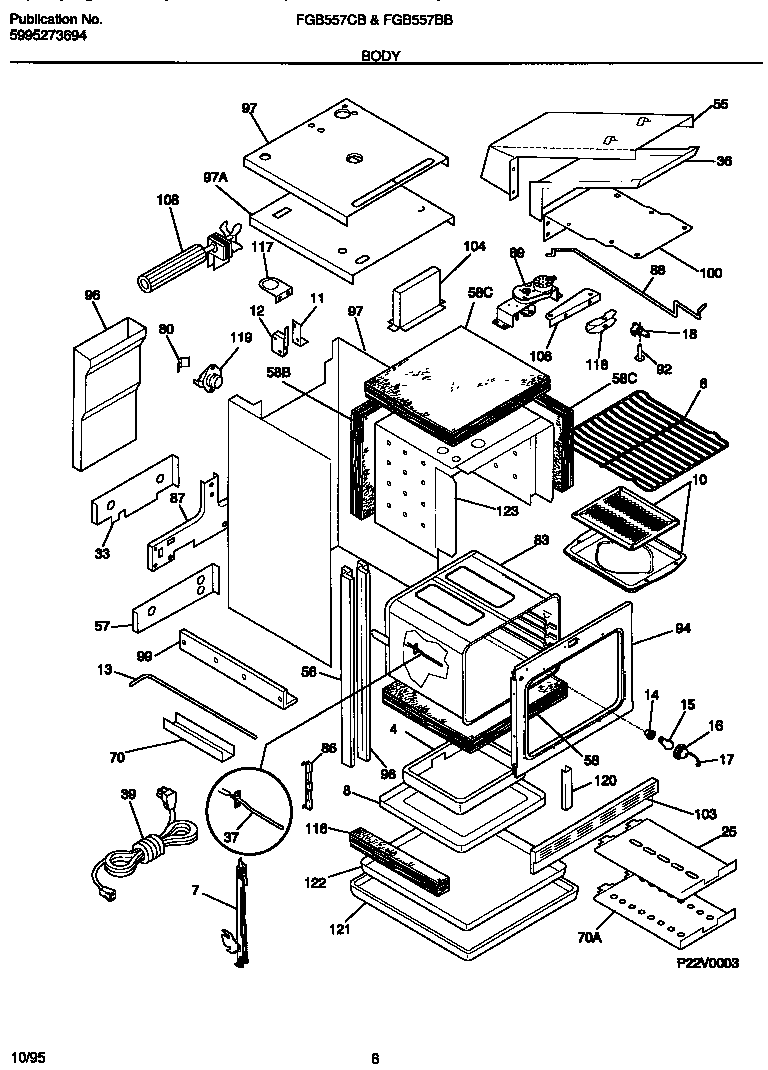

FGB557CBS2 04 – BODY

FGB557CBS2 04 – BODY

Written by

in

FGB557CBS2 04 – BODY

Products

PositionProduct
*571645304500008 Frigidaire Oven Screw
*57169WCI 3019069
*57173SHIELD, BURNER BOX
*57171WCI 5303210709
*57165WCI 3201632
*57172INSULATION, OVEN BOTTOM
*57174WCI 318119300
*571663131903 Frigidaire Door/Drawer Bumper
*571675303211311 Frigidaire Refrigerator Screw
*5716808002868 Frigidaire 0 Screw Assembly
*57170ANGLE-BURNER BOX
4WCI 5303280375
6WCI 5303299366
7AWCI 316009400
7B5300809968 Frigidaire Dishwasher P-1 Washer
8PANEL-OVEN BOTTOM
10BWCI 5303310520
10AWCI 5303310521
11Bracket,light switch
12ASWITCH – OVEN LIGHT
12BWCI 5303308447
13BWCI 3204114
13AWCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39BWCI 3018802
39AWCI 5303308453
55SHIELD-FLUE
56WCI 5303308459
57WCI 5303308476
58INSULATION, OVEN BACK
58BINSULATION, OVEN TOP
58WCI 5303210708
58AINSULATION, TOP & SIDES
70WCI 318071410
70SHIELD-INSULATION
80WCI 5303301261
83LINER-OVEN ASSY
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89WCI 5303269766
92AXLE – HINGE (2)
94WCI 5303296326
96DUCT-BLOWER
97AWCI 318066800
97WCI 5303210683
97BWRAPPER, TOP
98ATRIM-SIDE, INNER, LH
98BTRIM-SIDE, INNER, RH
99318284201 Frigidaire PANEL
100WCI 5303302715
103WCI 5303316734
104ADAPTER-FLUE
106WCI 5303308461
108WCI 318073000
116BINSULATION-BOTTOM, TOP
116AINSULATION-BOTTOM, SIDES, (2)
117WCI 5303302718
118HOUSING-DOOR LATCH
119SWITCH-THERMO
120WCI 3203688
121WCI 5303305036
122WCI 5303210706
123SHIELD-OVEN, TOP & SIDES
