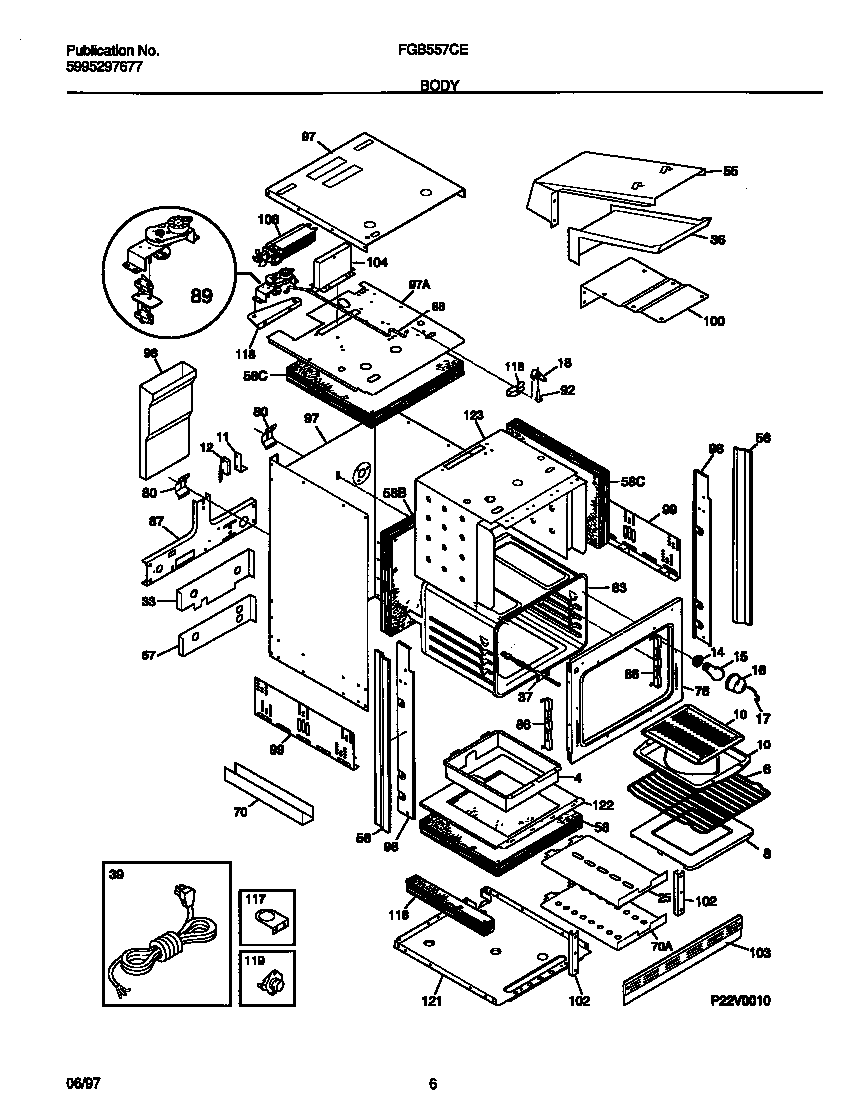

FGB557CEBB 04 – BODY

FGB557CEBB 04 – BODY

Written by

in

FGB557CEBB 04 – BODY

Products

PositionProduct
*28180WCI 5303210709
*281703131903 Frigidaire Door/Drawer Bumper
*281715304500008 Frigidaire Oven Screw
*28178WCI 318119300
*28174WCI 3201881
*28172WCI 3019069
*28168WCI 3018802
*28173WCI 3201632
*28179ANGLE-BURNER BOX
*281845300803416 Frigidaire Dishwasher Screw
*28169WCI 3019063
*28182SHIELD, BURNER BOX
*2817608002868 Frigidaire 0 Screw Assembly
*28167CLIP-WIRE
*281755303013272 Frigidaire Oven Nut
*28181INSULATION, OVEN BOTTOM
*281835303211311 Frigidaire Refrigerator Screw
*281855304464772 Frigidaire Refrigerator Wire Tie
*28177WCI 318108900
4WCI 318161500
6WCI 5303299366
8WCI 318121400
9WCI 5303317977
10WCI 5303317976
11Bracket,light switch
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39B5304513507 Frigidaire Bushing Assembly
39AWCI 5303308453
55SHIELD-FLUE
56WCI 318145508
56WCI 5303320422
57WCI 5303308476
58BINSULATION, OVEN TOP
58WCI 5303210708
58INSULATION, OVEN BACK
58AINSULATION, TOP & SIDES
70WCI 318071410
70SHIELD-INSULATION
76WCI 318056133
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89B3201861 Frigidaire Screw
89AWCI 5303269766
92AXLE – HINGE (2)
96DUCT-BLOWER
97WCI 318102400
97BWCI 318145000
97AWCI 318066800
98BWCI 318029400
98AWCI 318029401
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316735
104ADAPTER-FLUE
108WCI 318073000
116BINSULATION-BOTTOM, TOP
116AINSULATION-BOTTOM, SIDES, (2)
117WCI 5303302718
118HOUSING-DOOR LATCH
118WCI 5303308461
119WCI 5303326252
121WCI 318145001
122WCI 5303210706
123SHIELD-OVEN, TOP & SIDES
