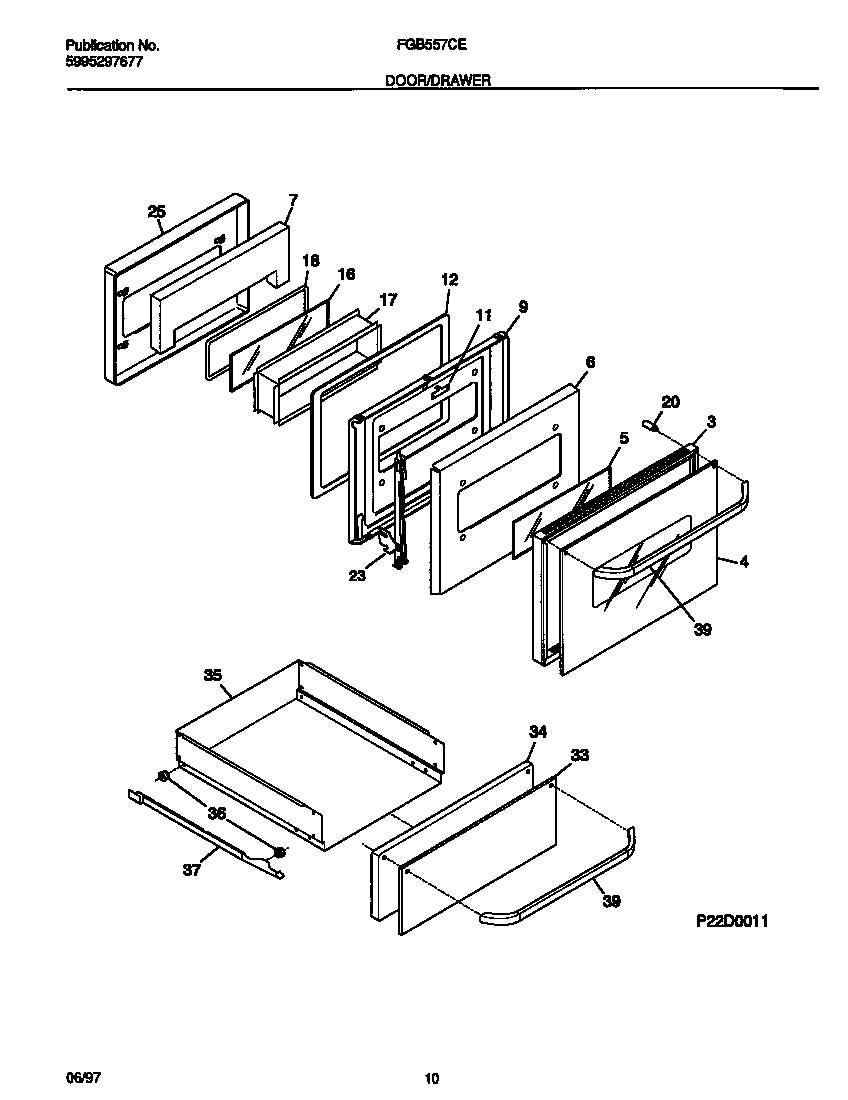

FGB557CEBB 06 – DOOR/DRAWER

FGB557CEBB 06 – DOOR/DRAWER

Written by

in

FGB557CEBB 06 – DOOR/DRAWER

Products

PositionProduct
*28188Plug,button
*28187COLLAR-GLASS MTG
*281935303308456 Frigidaire Oven Screw
*28189WCI 318122101
*28190COLLAR GLASS MTG
*28191REFLECTOR, ALUMINUM FOIL
*28192WCI 5303300414
*28186SCREW,TRUSS HEAD,8-18 X 0.375
*28194Foam seal,(3)
3WCI 5303212560
4WCI 3202420
5GLASS-OVEN DOOR, HEAT BARRIER
6WCI 5303210005
7WCI 5303308470
9WCI 318038600
11WCI 5301167830
12WCI 3205189
16GLASS – BAFFLE (2)
17SPACER-GLASS UPPER
18WCI 3016263
20SPACER-HANDLE MTG, (2)
23B5300809968 Frigidaire Dishwasher P-1 Washer
23AWCI 318074100
25WCI 318048300
33GLASS-DRAWER, FRONT
34PANEL-INNER DRAWER
35WCI 3051058
36WCI 5303935079
37B3203722 Frigidaire Oven Rail
37A3203723 Frigidaire Oven Rail
37C5304414648 Frigidaire Oven Screw
39B5303310510 Frigidaire Oven Screw
39AWCI 5303311217
39WCI 318014300
39318362822 Frigidaire Handle Assembly
