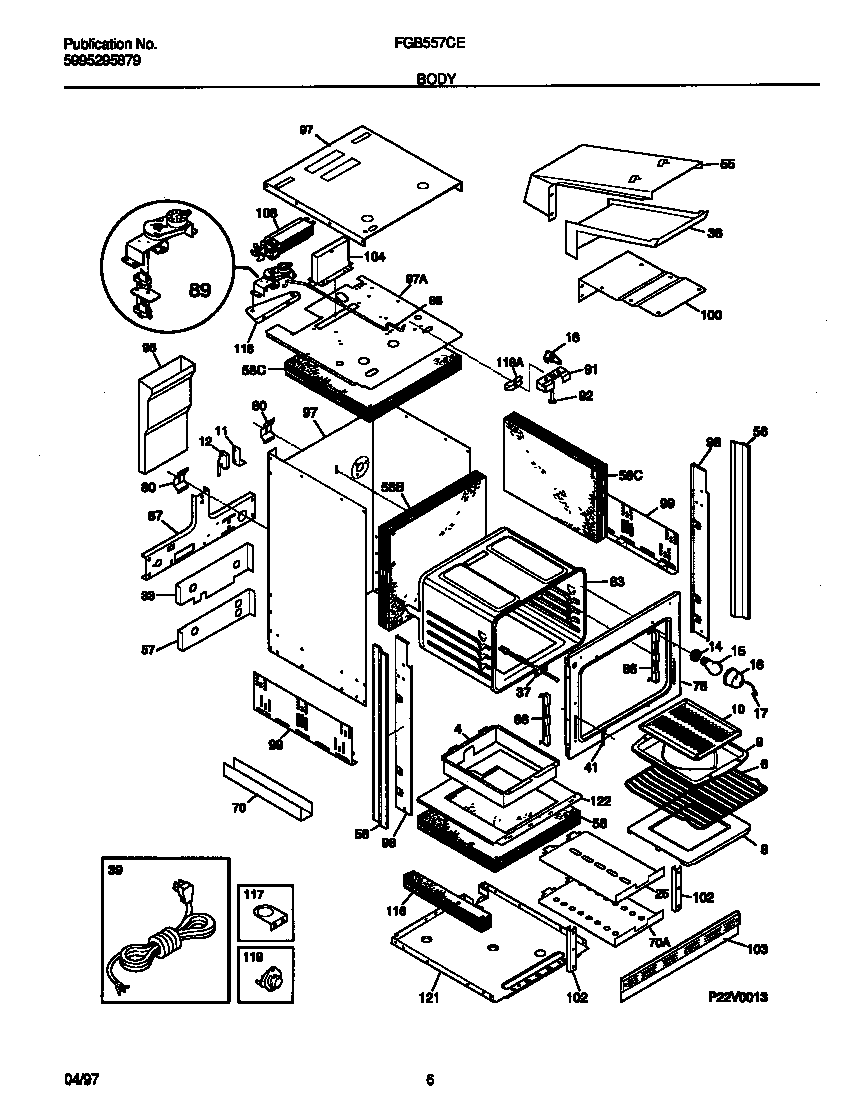

FGB557CEBC 04 – BODY

FGB557CEBC 04 – BODY

Written by

in

FGB557CEBC 04 – BODY

Products

PositionProduct
*968873131903 Frigidaire Door/Drawer Bumper
*96898ANGLE-BURNER BOX
*969035300803416 Frigidaire Dishwasher Screw
*96901SHIELD, BURNER BOX
*968915304500008 Frigidaire Oven Screw
*96899WCI 5303210709
*96893WCI 3201881
*96888WCI 3018802
*96892WCI 3201632
*96907PLUG, DOOR LINER
*96896WCI 318108900
*96897WCI 318119300
*96905WCI 5303311528
*96900INSULATION, OVEN BOTTOM
*9689508002868 Frigidaire 0 Screw Assembly
*96889Clip,insulator
*96890CLIP-WIRE
*968945303013272 Frigidaire Oven Nut
*96906WCI 5303321212
*969025303211311 Frigidaire Refrigerator Screw
*969045304464772 Frigidaire Refrigerator Wire Tie
4WCI 318161500
6WCI 5303299366
8WCI 318121400
9WCI 5303317977
10WCI 5303317976
11Bracket,light switch
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39B5304513507 Frigidaire Bushing Assembly
39AWCI 5303308453
41WCI 3019063
55SHIELD-FLUE
56WCI 318145508
56WCI 5303320422
57WCI 5303308476
58BINSULATION, OVEN TOP
58WCI 5303210708
58INSULATION, OVEN BACK
58AINSULATION, TOP & SIDES
70SHIELD-INSULATION
70WCI 318071410
76WCI 318056133
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89AWCI 5303269766
89B3201861 Frigidaire Screw
91WCI 3019069
92AXLE – HINGE (2)
96DUCT-BLOWER
97WCI 318102400
97AWCI 318066800
97BWCI 318145000
98AWCI 318029401
98BWCI 318029400
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316735
104ADAPTER-FLUE
108WCI 318073000
116AINSULATION-BOTTOM, SIDES, (2)
116BINSULATION-BOTTOM, TOP
117WCI 5303302718
118HOUSING-DOOR LATCH
118WCI 5303308461
119WCI 5303326252
121WCI 318145001
122WCI 5303210706
