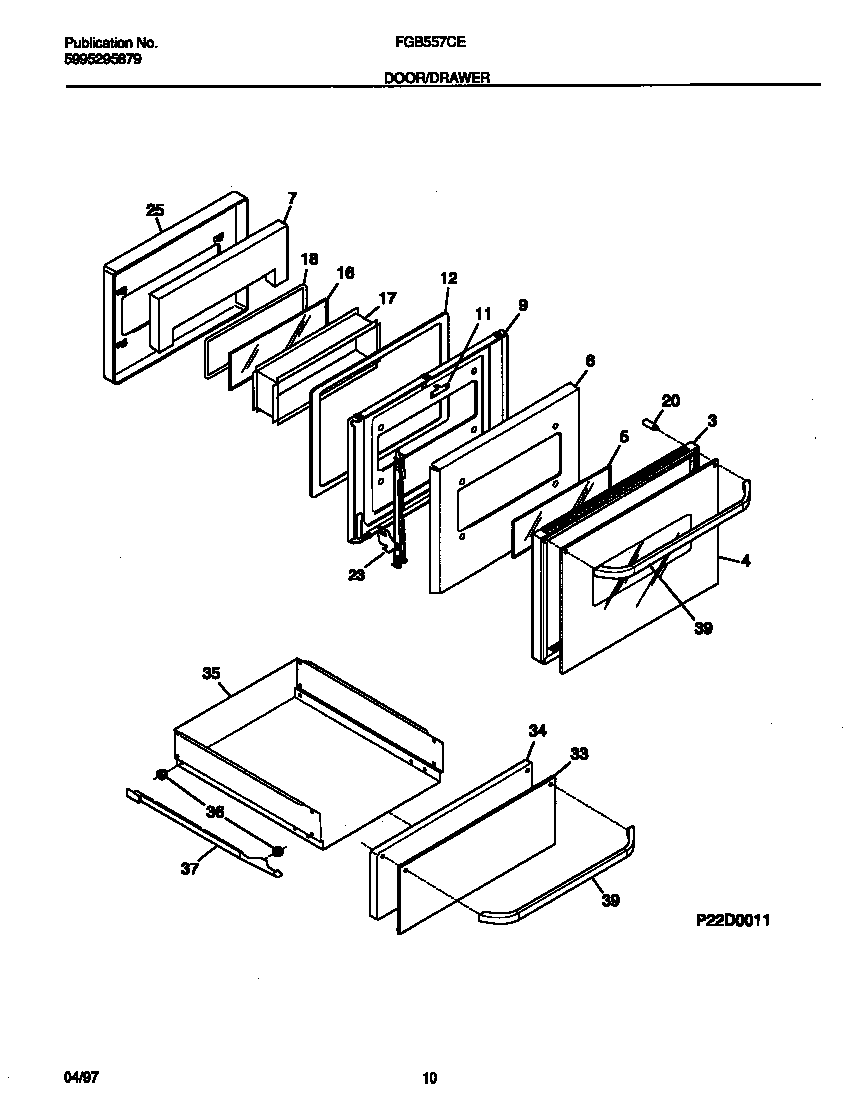

FGB557CEBC 06 – DOOR/DRAWER

FGB557CEBC 06 – DOOR/DRAWER

Written by

in

FGB557CEBC 06 – DOOR/DRAWER

Products

PositionProduct
*96909Plug,button
*96910SCREW,TRUSS HEAD,8-18 X 0.375
*96913WCI 5303300414
*96912REFLECTOR, ALUMINUM FOIL
*96911WCI 318122101
*96908COLLAR GLASS MTG
*969145303308456 Frigidaire Oven Screw
*96915Foam seal,(3)
3WCI 5303212560
4WCI 3202420
5GLASS-OVEN DOOR, HEAT BARRIER
6WCI 5303210005
7WCI 5303308470
9WCI 318038600
11WCI 5301167830
12WCI 3205189
16GLASS – BAFFLE (2)
17SPACER-GLASS UPPER
18WCI 3016263
20SPACER-HANDLE MTG, (2)
23B5300809968 Frigidaire Dishwasher P-1 Washer
23AWCI 316009400
25WCI 318048300
33GLASS-DRAWER, FRONT
34PANEL-INNER DRAWER
35WCI 3051058
36WCI 5303935079
37B3203722 Frigidaire Oven Rail
37A3203723 Frigidaire Oven Rail
37C5304414648 Frigidaire Oven Screw
39318362822 Frigidaire Handle Assembly
39WCI 5303311217
39WCI 318014300
