FGB557CEBE 05 – DOOR

FGB557CEBE 05 – DOOR

Written by

in

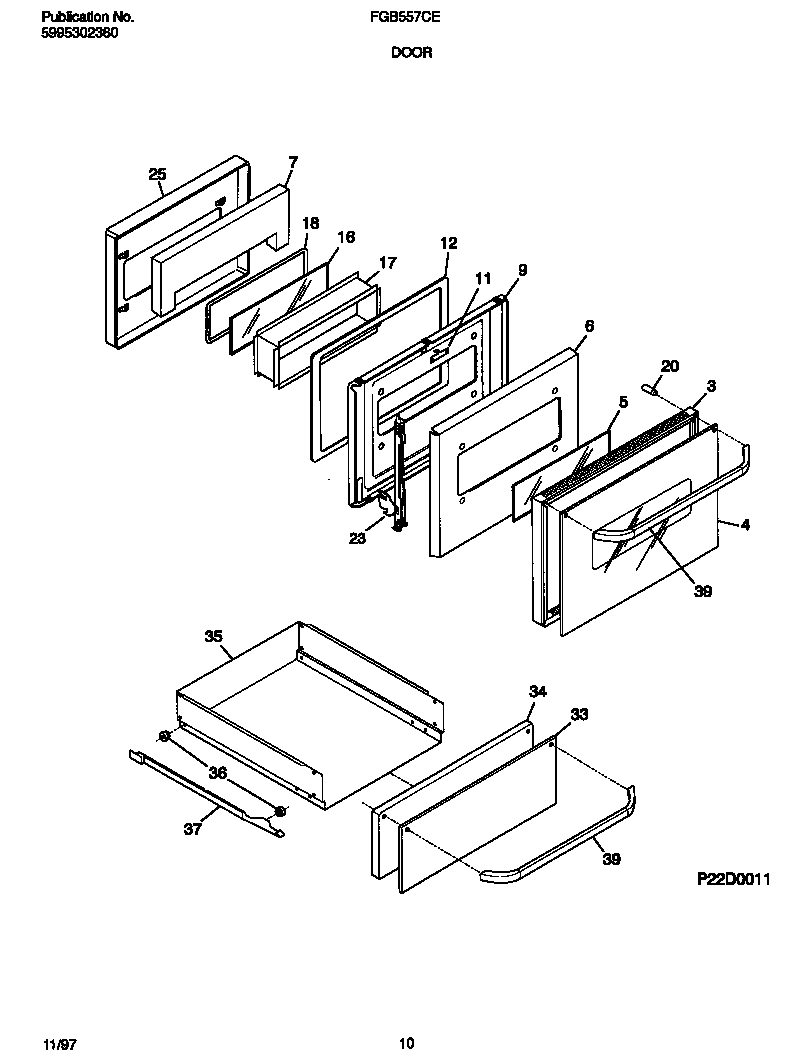

FGB557CEBE 05 – DOOR

Products

PositionProduct
*18068Plug,button
*18071COLLAR-GLASS MTG
*18070WCI 318122101
*180745303308456 Frigidaire Oven Screw
*18075Foam seal,(3)
*18072REFLECTOR, ALUMINUM FOIL
*18073WCI 5303300414
*18069SCREW,TRUSS HEAD,8-18 X 0.375
3WCI 5303212560
4WCI 3202420
5GLASS-OVEN DOOR, HEAT BARRIER
6WCI 5303210005
7WCI 5303308470
9WCI 318038600
105303310510 Frigidaire Oven Screw
11WCI 5301167830
12WCI 3205189
16GLASS – BAFFLE (2)
17SPACER-GLASS UPPER
18WCI 3016263
19COLLAR GLASS MTG
20SPACER-HANDLE MTG, (2)
23B5300809968 Frigidaire Dishwasher P-1 Washer
23AWCI 318074100
25WCI 318048300
33GLASS-DRAWER, FRONT
34PANEL-INNER DRAWER
35WCI 3051058
36WCI 5303935079
37B3203722 Frigidaire Oven Rail
37A3203723 Frigidaire Oven Rail
37C5304414648 Frigidaire Oven Screw
39WCI 318014300
39WCI 5303311217
39318362822 Frigidaire Handle Assembly
