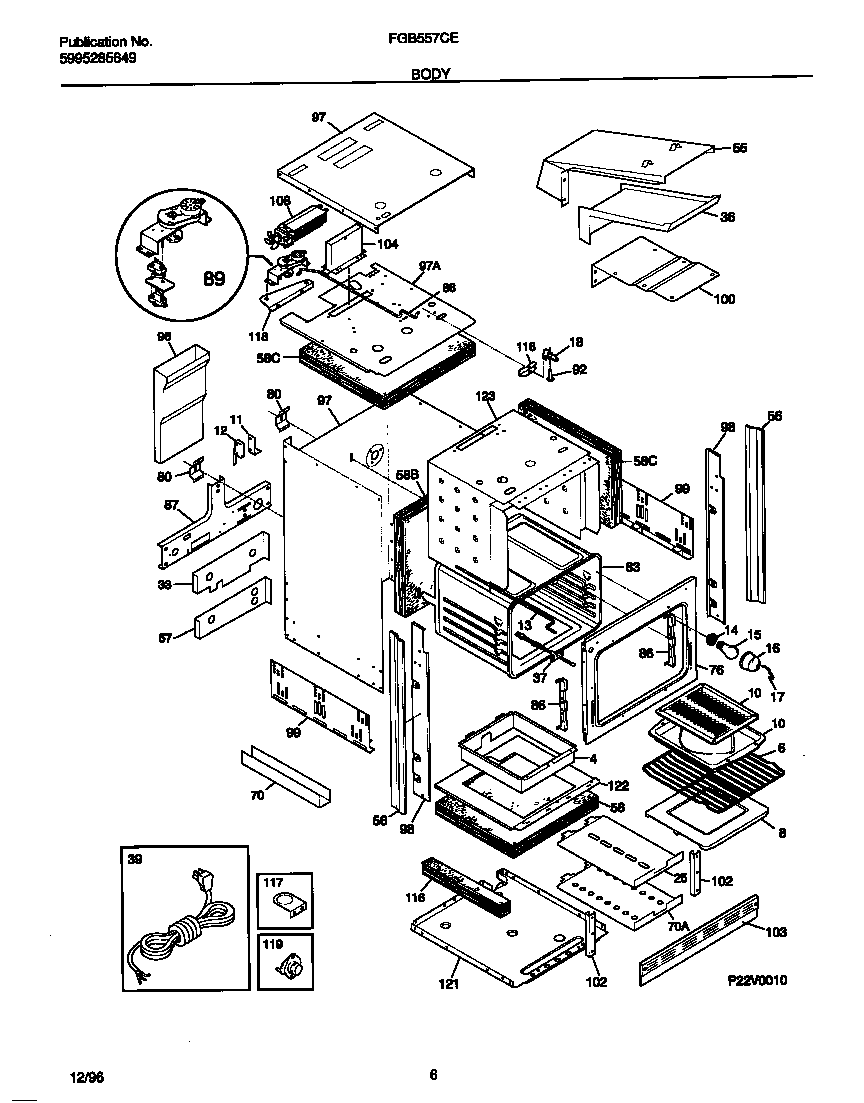

FGB557CESA 04 – BODY

FGB557CESA 04 – BODY

Written by

in

FGB557CESA 04 – BODY

Products

PositionProduct
*139735304500008 Frigidaire Oven Screw
*139855300803416 Frigidaire Dishwasher Screw
*139693131903 Frigidaire Door/Drawer Bumper
*13983SHIELD, BURNER BOX
*139743201861 Frigidaire Screw
*13981WCI 5303210709
*13975WCI 3201881
*13972WCI 3018802
*13970WCI 3201632
*13968WCI 3019063
*13978WCI 318108900
*13982INSULATION, OVEN BOTTOM
*13987WCI 5303311528
*13980ANGLE-BURNER BOX
*1397708002868 Frigidaire 0 Screw Assembly
*13988CLIP-WIRE
*139765303013272 Frigidaire Oven Nut
*139845303211311 Frigidaire Refrigerator Screw
*139865304464772 Frigidaire Refrigerator Wire Tie
*13979WCI 318119300
*13971WCI 3019069
4WCI 5303280375
6WCI 5303299366
8WCI 318121400
10BWCI 5303317976
10AWCI 5303317977
11Bracket,light switch
12318394803 Frigidaire Oven Switch
13WCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
25SHIELD-HEAT, LOWER
33WCI 5303302719
36WCI 3203725
37PROBE-OVEN TEMP
39AWCI 5303308453
39B5304513507 Frigidaire Bushing Assembly
55SHIELD-FLUE
56WCI 5303308459
56WCI 5303320422
57WCI 5303308476
58AINSULATION, TOP & SIDES
58WCI 5303210708
58INSULATION, OVEN BACK
58BINSULATION, OVEN TOP
70SHIELD-INSULATION
70WCI 318071410
76WCI 318056133
80WCI 5303301261
83WCI 318089401
86WCI 3201631
87WCI 5303308443
88WCI 3016241
89WCI 5303269766
92AXLE – HINGE (2)
96DUCT-BLOWER
97BWRAPPER, TOP
97WCI 318102400
97AWCI 318066800
98BWCI 318029400
98AWCI 318029401
99318284201 Frigidaire PANEL
100WCI 5303302715
102WCI 3203688
103WCI 5303316734
104ADAPTER-FLUE
108WCI 318073000
116BINSULATION-BOTTOM, TOP
116AINSULATION-BOTTOM, SIDES, (2)
117WCI 5303302718
118HOUSING-DOOR LATCH
118WCI 5303308461
119SWITCH-THERMO
121WCI 5303305036
122WCI 5303210706
123SHIELD-OVEN, TOP & SIDES
