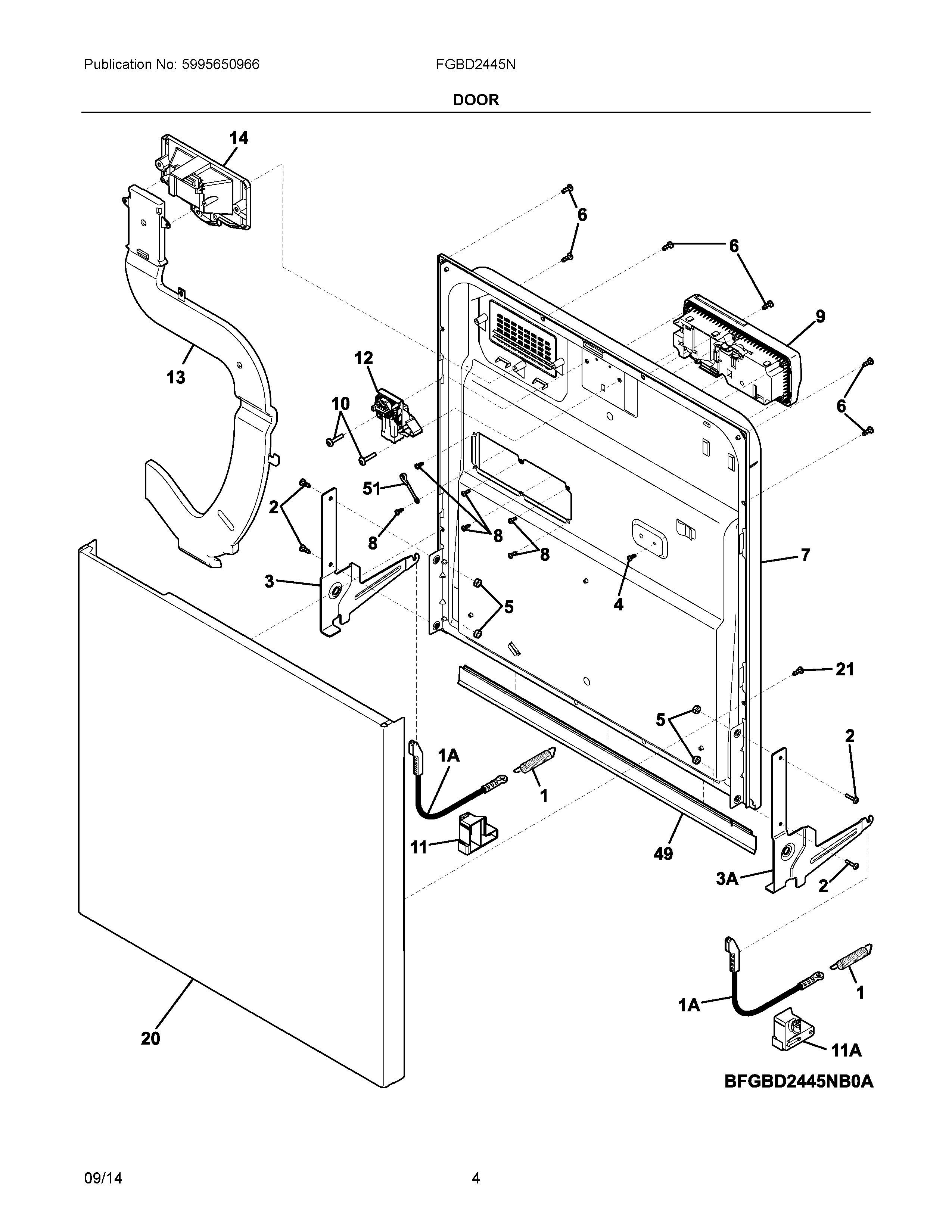

FGBD2445NB5A 03 – DOOR

Products

Position	Product
NI	154647101 Frigidaire Dishwasher Pin Hinge
NI	154686401 Frigidaire Dishwasher Bearing
NIA	5304525214 Frigidaire Dishwasher Shield
NI	INSULATION,DOOR
NIA	WCI 154793401
1	154579101 Frigidaire Dishwasher Door Spring
1A	154756401 Frigidaire Hinge Cable
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
4	808326801 Frigidaire Dishwasher Screw
5	5303013272 Frigidaire Oven Nut
6	154783101 Frigidaire Dishwasher Screw
7	LINER, DOOR ASSEMBLY, DARK GREY, COMPLETE
8	154294701 Frigidaire Dishwasher Screw
9	5304506521 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
11	154579201 Frigidaire Dishwasher Pulley
11A	154579202 Frigidaire Dishwasher Pulley
12	5304525218 Frigidaire Door Latch Assembly
13	WCI 154755801
14	WCI 154784401
20	DOOR ASSEMBLY, W/INSULLATION, BLACK
21	154754701 Frigidaire Dishwasher Screw
49	809006501 Frigidaire Bottom Seal/Gasket Door
51	WCI 154320301
