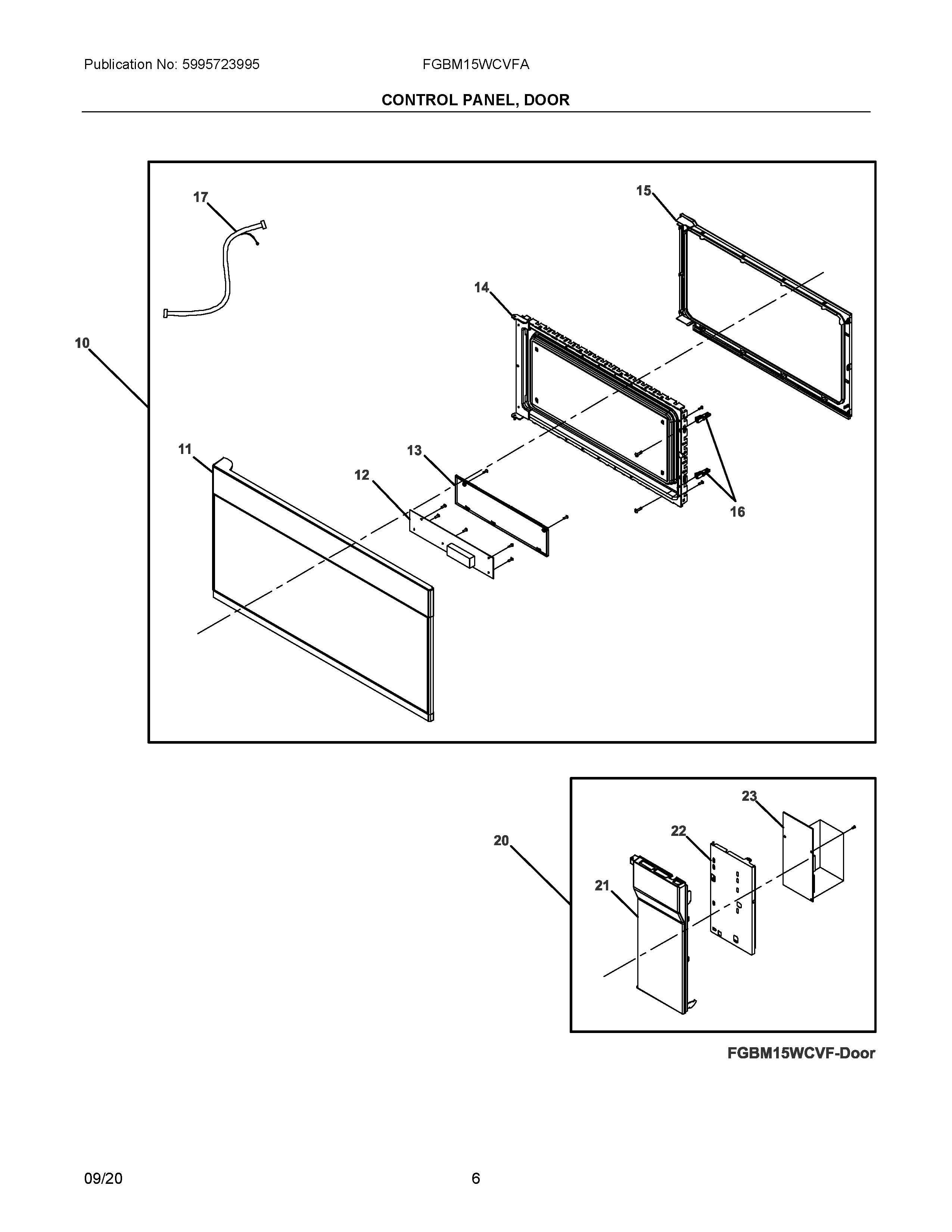

FGBM15WCVFA 03 – CONTROL PANEL, DOOR

FGBM15WCVFA 03 – CONTROL PANEL, DOOR

Written by

in

FGBM15WCVFA 03 – CONTROL PANEL, DOOR

Products

PositionProduct
105304526225 Frigidaire Microwave Assembly Door
11DOOR ASSEMBLY, OUTER, BLACK/STAINLESS
125304523245 Frigidaire Microwave PCB Board
13COVER, DISPLAY BOARD
14DOOR FRAME, ASSEMBLY
155304523248 Frigidaire Gasket
165304523249 Frigidaire Microwave Latch Assembly
175304523250 Frigidaire Microwave Harness
205304523251 Frigidaire Microwave Control Assembly
215304523252 Frigidaire Microwave Panel
225304523253 Frigidaire Shield
235304523254 Frigidaire Microwave PCB Board
