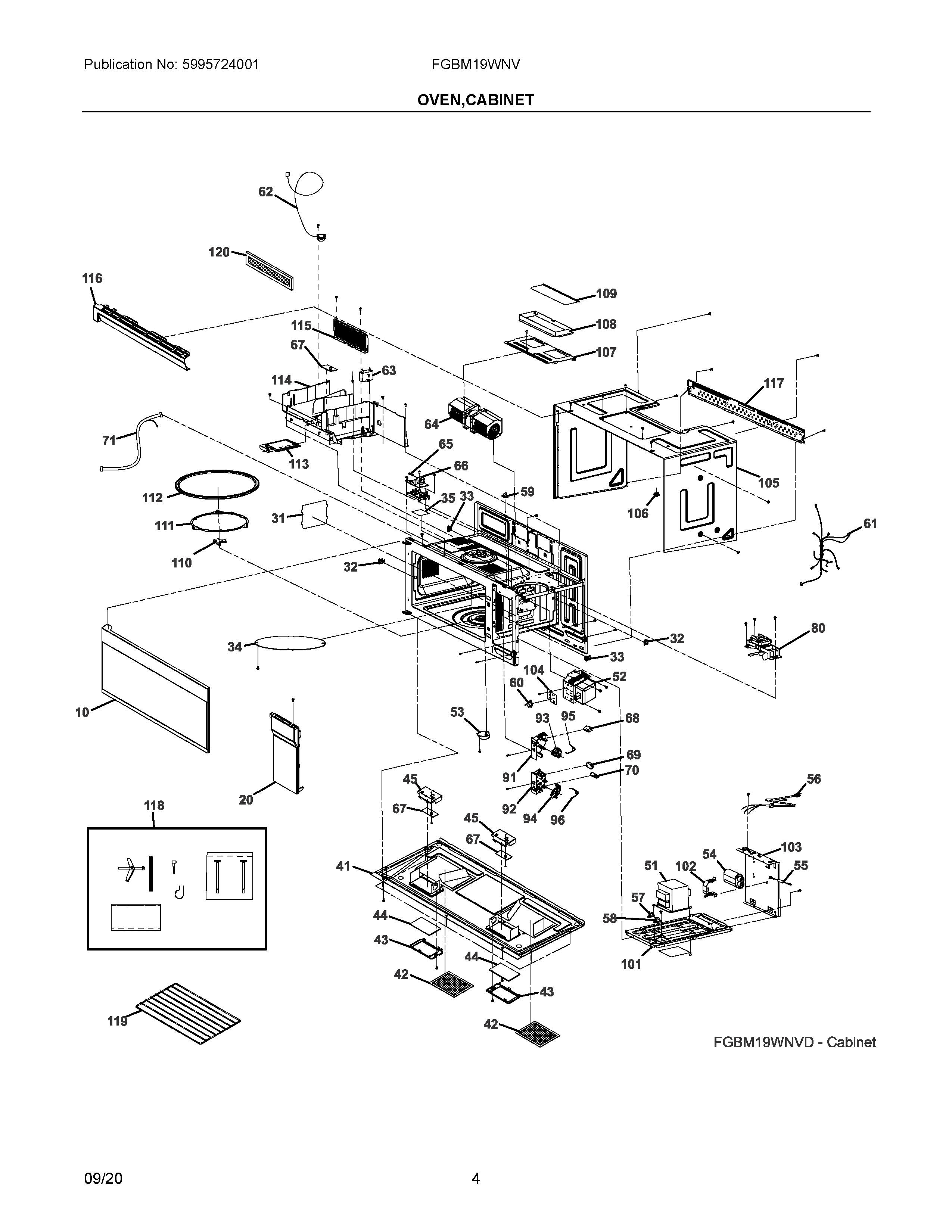

FGBM19WNVFA 02 – OVEN,CABINET

FGBM19WNVFA 02 – OVEN,CABINET

Written by

in

FGBM19WNVFA 02 – OVEN,CABINET

Products

PositionProduct
105304526226 Frigidaire Microwave Door Assembly
205304523274 Frigidaire Microwave Control Assembly
315304523276 Frigidaire Microwave Waveguide Cover
325304509642 Frigidaire Microwave Support Assembly
335304509643 Frigidaire Microwave Support Bracket
345304523277 Frigidaire Cover
355304509455 Frigidaire Microwave Tape
415304523256 Frigidaire Base
425304517871 Frigidaire Replacement Grease Filters
435304509441 Frigidaire Microwave Frame
445304509443 Frigidaire Microwave Lens
455304509442 Frigidaire Microwave Cover
515304515184 Frigidaire Microwave Transformer
525304509470 Frigidaire Microwave Magnetron
535304513471 Frigidaire Microwave Motor
545304523278 Frigidaire Microwave Capacitor
555304515185 Frigidaire Microwave Diode
565304512501 Frigidaire Power Cord
575304513462 Frigidaire Microwave Thermostat
585304513463 Frigidaire Microwave Thermostat
595304515178 Frigidaire Microwave Thermostat
605304513461 Frigidaire Microwave Thermostat
615304523279 Frigidaire Microwave Harness
625304509652 Frigidaire Microwave Sensor
63CAPACITOR, START
645304523280 Frigidaire Microwave Motor
655304517874 Frigidaire Fuse
665304525109 Frigidaire Microwave Filter
675304517872 Frigidaire Microwave Lamp
695304520021 Frigidaire Microwave Microswitch
70SWITCH
715304504073 Frigidaire Microwave Wire
805304523281 Frigidaire Microwave Cooling Fan
915304523259 Frigidaire Microwave Bracket
925304523260 Frigidaire Microwave Bracket
935304523261 Frigidaire Microwave Lever
945304523262 Frigidaire Microwave Lever
955304523263 Frigidaire Microwave Spring
965304523264 Frigidaire Microwave Spring
1015304523282 Frigidaire Base
1025304509477 Frigidaire Retainer
103DEFLECTOR, AIR GUIDE
1045304515183 Frigidaire Microwave Thermostat
1055304523284 Frigidaire Microwave Wrapper
1065304509436 Frigidaire Microwave Mounting Nut Kit
1075304513481 Frigidaire Microwave Cover
1085304509485 Frigidaire Microwave Vent Damper
1095304509486 Frigidaire Microwave Vent Damper
1105304513472 Frigidaire Glass Tray Drive Coupling
1115304509438 Frigidaire Microwave Support Glass Tray
1125304509621 Frigidaire Microwave Glass Tray
1135304509450 Frigidaire Microwave Cover
114WCI 5304523285
1155304509456 Frigidaire Microwave Cover
1165304523265 Frigidaire Vent Grille
1175304509487 Frigidaire Microwave Mounting Bracket
1185304513469 Frigidaire Microwave Mounting Kit
119WCI 5304523286
120FILTER, CHARCOAL, 2" X 10"
