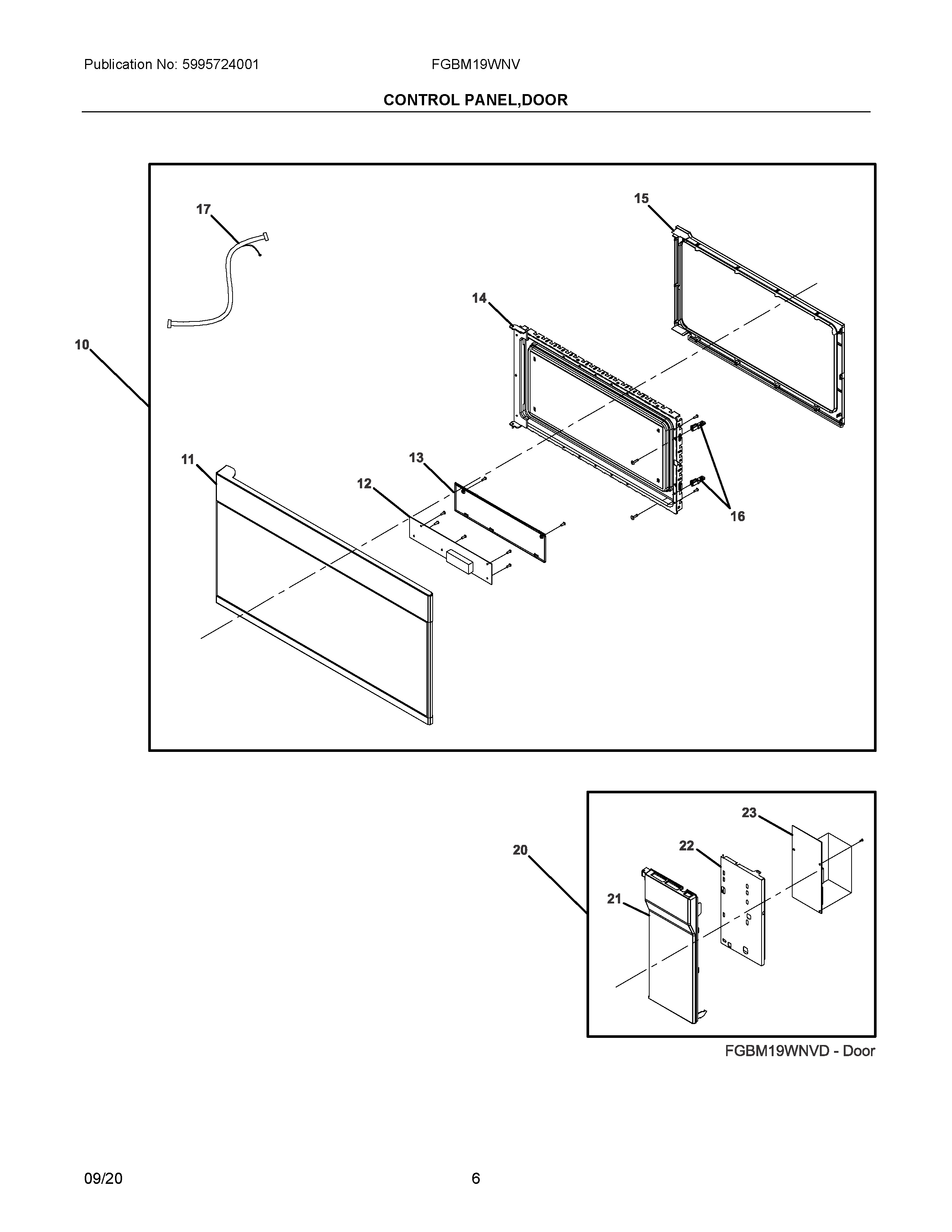

FGBM19WNVFA 03 – CONTROL PANEL,DOOR

FGBM19WNVFA 03 – CONTROL PANEL,DOOR

Written by

in

FGBM19WNVFA 03 – CONTROL PANEL,DOOR

Products

PositionProduct
105304526226 Frigidaire Microwave Door Assembly
115304523287 Frigidaire Door Assembly
125304523245 Frigidaire Microwave PCB Board
13COVER, DISPLAY BOARD
14FRAME ASSEMBLY, DOOR
155304523248 Frigidaire Gasket
165304523249 Frigidaire Microwave Latch Assembly
175304523250 Frigidaire Microwave Harness
205304523274 Frigidaire Microwave Control Assembly
215304523252 Frigidaire Microwave Panel
225304523253 Frigidaire Shield
235304523275 Frigidaire Microwave Pc Board
