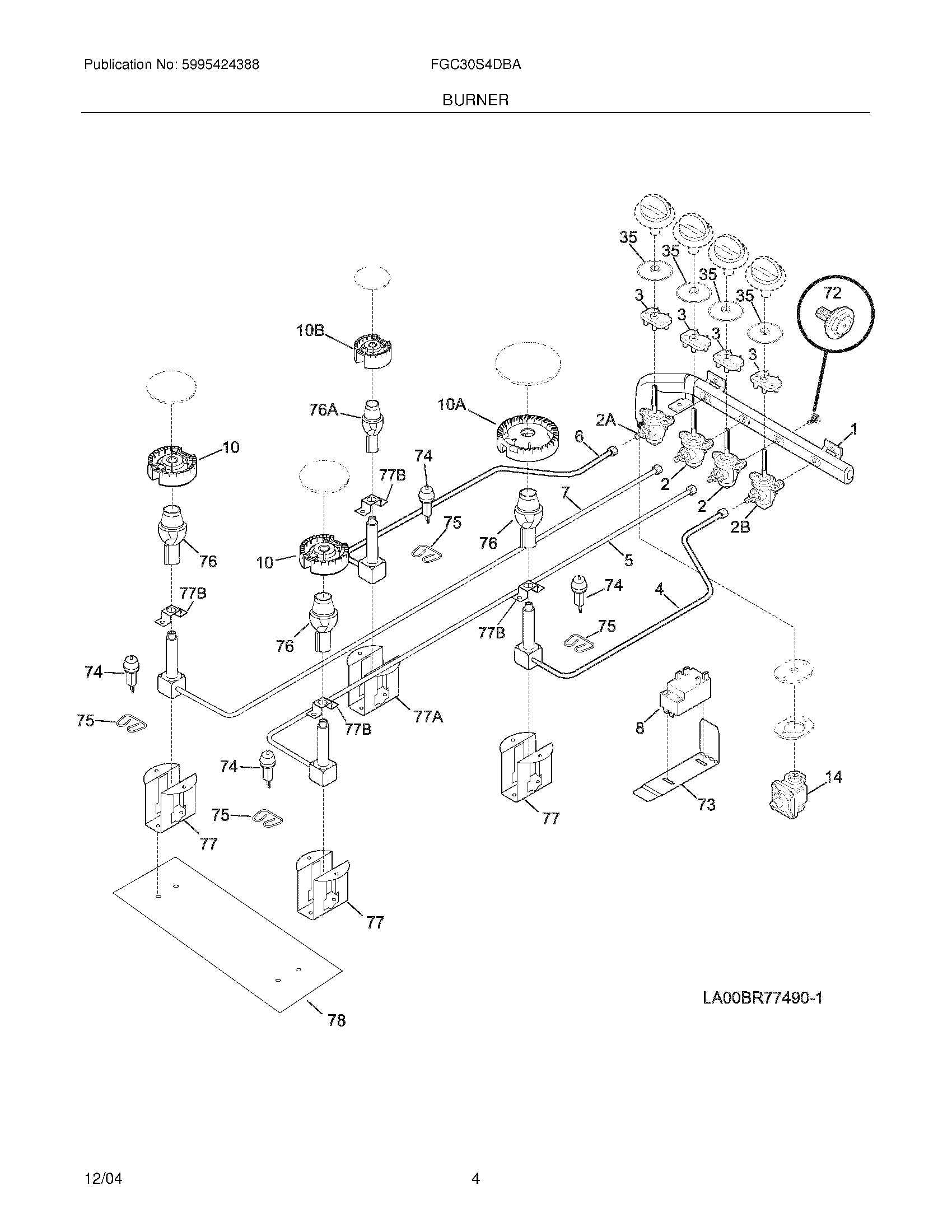

FGC30S4DBA 05 – BURNER

Written by

Products

Position	Product
NI	WCI 318199729
NI	WCI 318024200
NI	LP Conversion Kit
NI	5304403558 Frigidaire Oven Screw
NI	5303311174 Frigidaire Oven Screw
NI	316524400 Frigidaire Oven Screw
1	WCI 318177003
2	WCI 318087040
2A	WCI 318087001
2B	WCI 5303935042
3	318232604 Frigidaire Wiring Harness
4	WCI 318167714
5	Tube,burner ,LF
6	Tube,burner ,RR
7	Tube,burner ,LR
8	5304505695 Frigidaire Oven Module
10B	WCI 318148000
10A	WCI 318148002
10	WCI 318148001
14	5308007974 Frigidaire Pressure Regulator
35	WCI 318146300
72	WCI 5303323141
73	WCI 318024201
74	318148700 Frigidaire Igniter P1
75	WCI 318148800
76	318167801 Frigidaire Oven Tube
76A	WCI 318167800
77B	WCI 318180900
77A	WCI 318112000
77	WCI 318112010
78	WCI 318220100
