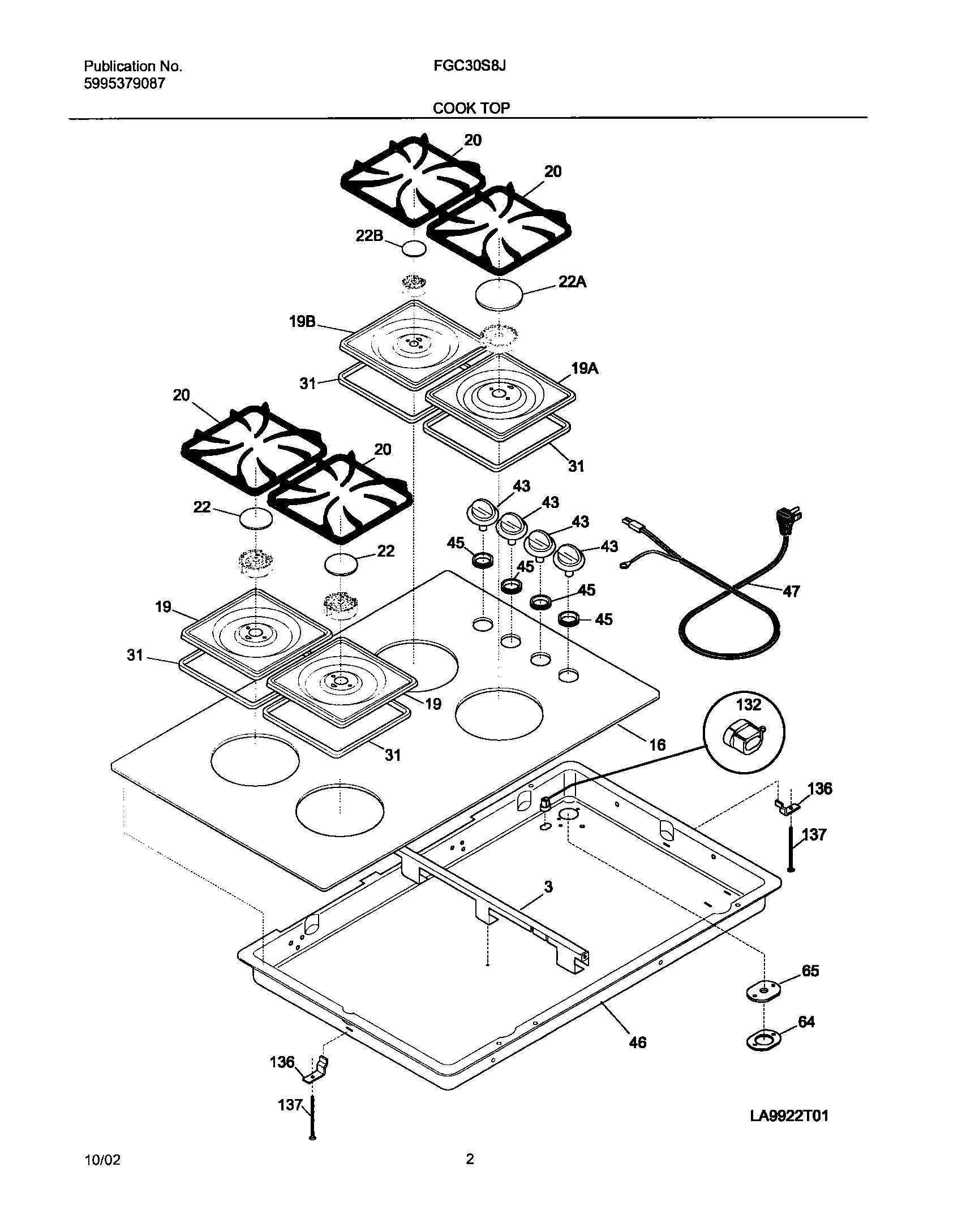

FGC30S8JBA 03 – MAINTOP

Written by

Products

Position	Product
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303307980 Frigidaire Oven Screw
NI	316524400 Frigidaire Oven Screw
NI	5303323140 Frigidaire Oven Screw
3	Support
16	WCI 318018526
19A	318168124 Frigidaire Large Burner Pan
19	318168114 Frigidaire Oven Pan
19B	318168104 Frigidaire Pan, Small Black
20	Grate,black ,(4)
22B	WCI 318076400
22A	WCI 318076420
22	316213500 Frigidaire Range Medium 9.5K Black Surface Burner Cap
31	318053901 Frigidaire Drip Pan Seal Gasket
43	WCI 318164721
45	BUSHING
46	WCI 5303307897
47	WCI 5303303991
64	Bracket,retainer
65	5304506478 Frigidaire Seal
132	5304513507 Frigidaire Bushing Assembly
136	SUPPORT
137	WCI 5303323138
