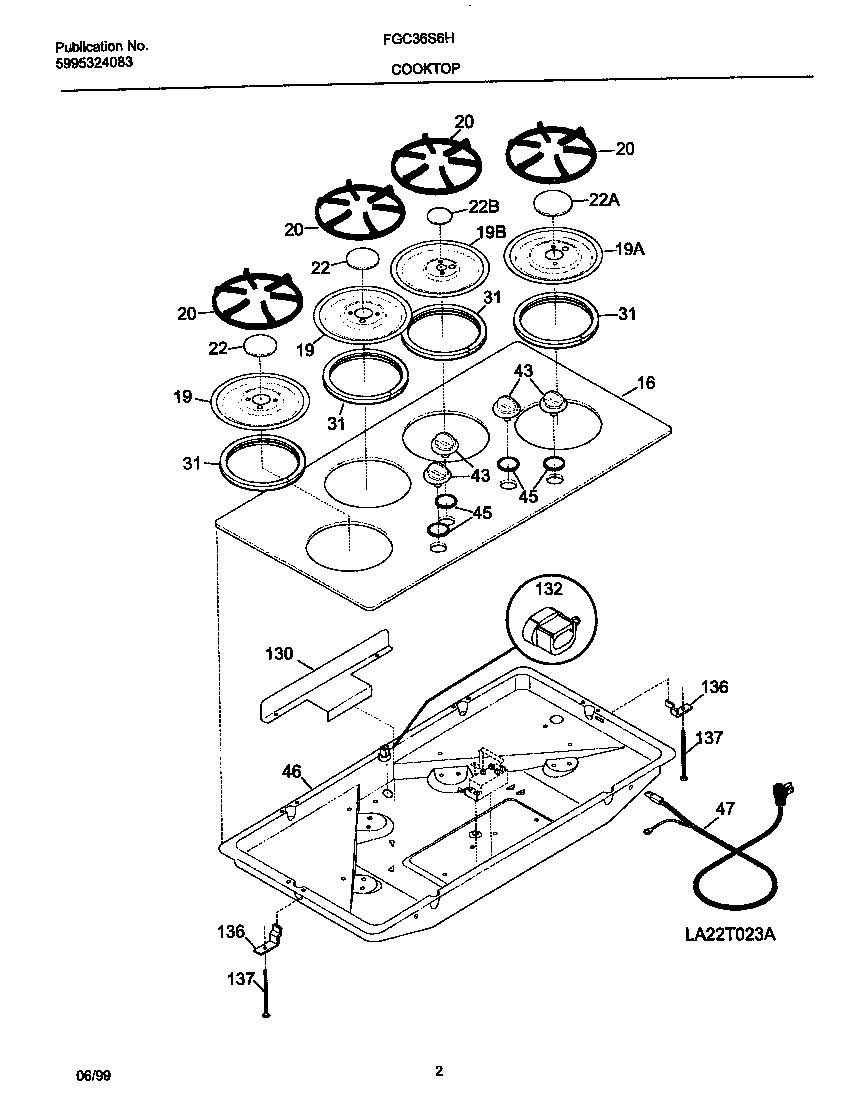

FGC36S6HSA 02 – COOKTOP

FGC36S6HSA 02 – COOKTOP

Written by

in

FGC36S6HSA 02 – COOKTOP

Products

PositionProduct
*414805303300265 Frigidaire Oven Screw
*414815304480396 Frigidaire Screw
*414825304403558 Frigidaire Oven Screw
*41483WCI 318052106
16GLASS AND SUPPORT ASSEMBLY/ASSEMBLAGE PLAQUE ET SUPPORT
19SMALL PAN BURNER,WHITE ,RR
19MEDIUM PAN BURNER,WHITE ,LR & LF
19LARGE PAN BURNER,WHITE ,RF
20GRATE-GREY
22Cap,burner ,grey ,small RR
22Cap,burner ,grey ,large RF
22Cap,burner ,grey ,medium LF & LR
31GASKET-PAN
43KNOB-TOP VALVE WHITE
45BUSHING
46WCI 318077130
47WCI 5303303991
130WCI 318125001
1325304513507 Frigidaire Bushing Assembly
136SUPPORT
137WCI 5303323138
