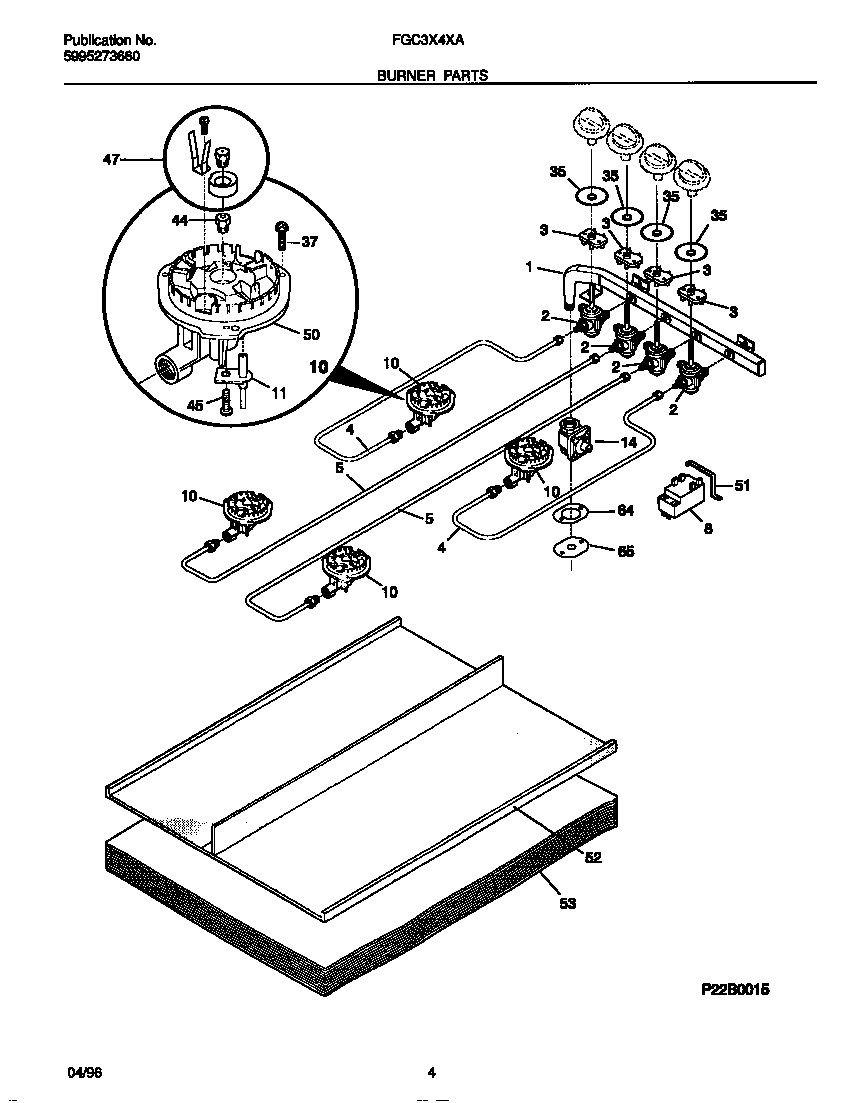

FGC3X4XAW2 03 – BURNER PARTS

Products

Position	Product
*73204	HARNESS-WIRING, MAIN
*73200	5303311174 Frigidaire Oven Screw
*73203	WCI 318052503
*73202	WCI 318052502
*73201	WCI 318052500
1	WCI 5303284581
2B	316048200 Frigidaire Oven Screw
2A	WCI 5303935042
3	SWITCH-IGNITOR
4	TUBE-BURNER
5	TUBE-BURNER
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY
11	316011200 Frigidaire Oven Top Burner Igniter
14	5308007974 Frigidaire Pressure Regulator
35	WCI 5303307978
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER
45	WCI 316011100
47	WCI 5303302413
50	BURNER-TOP, SMALL, (4)
51	WCI 318024200
52	WCI 5303209024
53	WCI 5303209025
64	Bracket,retainer
65	5304506478 Frigidaire Seal
